Broadband Beam Splitter

PRODUCT CATEGORIES
INOUIRY
Contact Form Demo (#3)

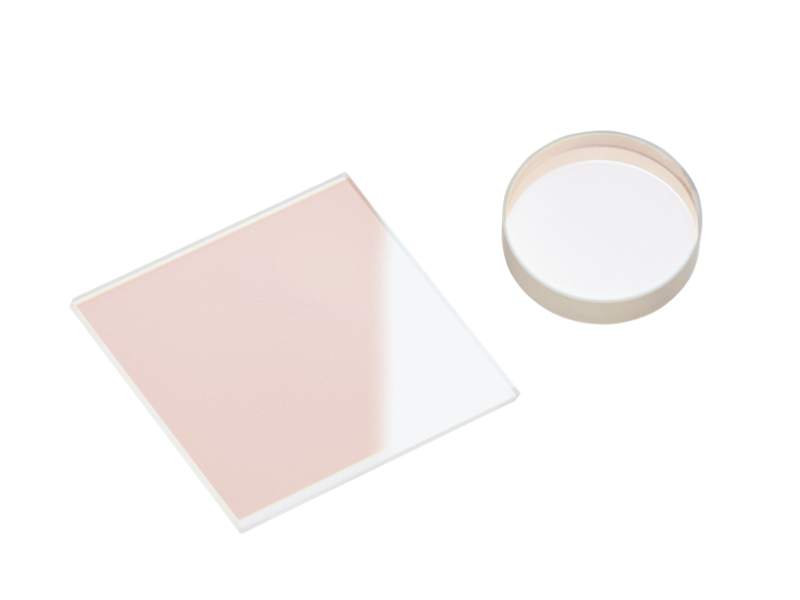

Broadband spectroscopes are usually used at a 45° tilt, with one side coated with a spectroscope film and the other side coated with an anti-reflection film. They can split the incident light into two parts: reflected light and transmitted light.

The front surface of the spectroscope is coated with a spectroscope film, and the back surface is usually coated with an anti-reflection film to reduce the interference effect between beams and ghost images. Spectroscopes are light in weight, moderately priced, and relatively easy to make. A spectroscope is an optical component that can split a radiation beam into several parts.

We provide various models of broadband spectroscopes with spectroscope films on the front surface and VIS, NIR, and SWIR anti-reflection films on the back surface.

Technical parameters with broadband beamsplitter

Material Fine annealed H-K9L optical glass
Surface accuracy λ/2 (per inch) @ 633nm
Parallelism error <1′
Surface quality 60-40
Effective aperture 90%
Dimension error +0.0/-0.25mm
Thickness 3mm±0.2mm
Back Fine grinding
Chamfer Protective chamfer 0.2~0.5mmX45°
Incident angle Designed for 45° incident angle
Coating-S1 surface splitter film Split ratio (R/T) ±10% Average value within nominal bandwidth
Coating-S2 surface anti-reflection film Ravg<1% Average value within nominal bandwidth

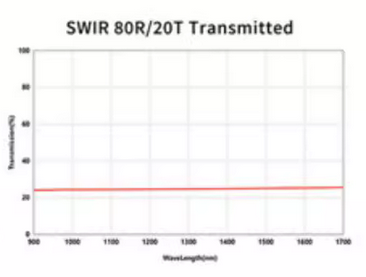

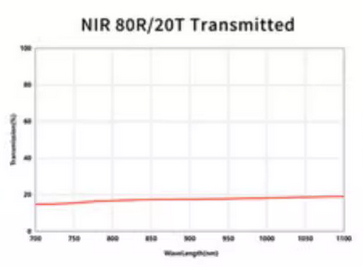

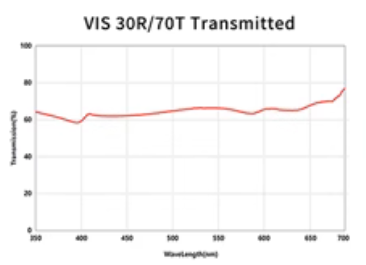

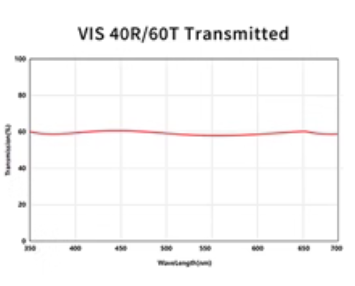

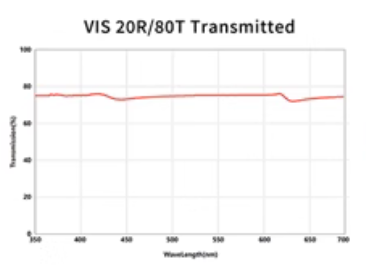

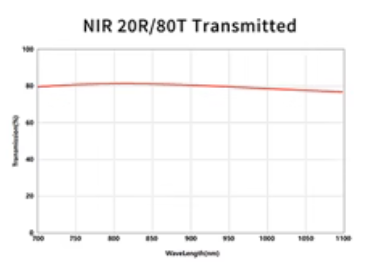

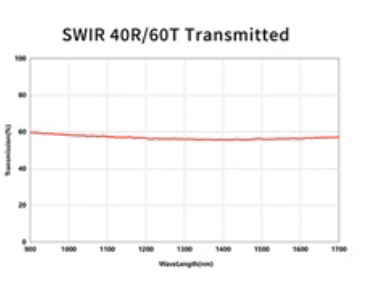

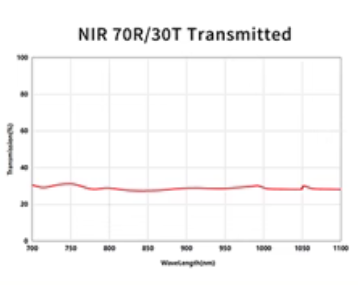

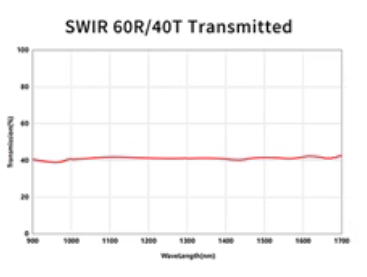

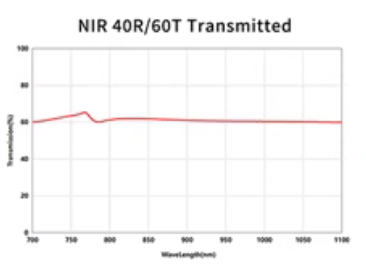

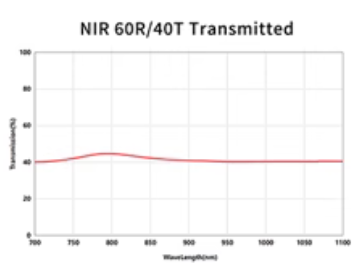

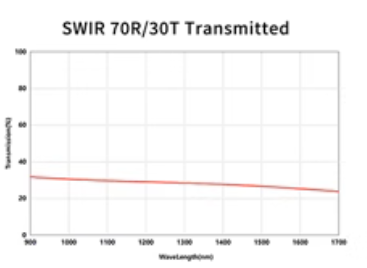

spectral curve with broadband beam splitter

VIS 20 80 BEAMSPLITTER

20R: 80T@400-700nm

NIR 20 80 BEAMSPLITTER

20R: 80T@700-1100nm

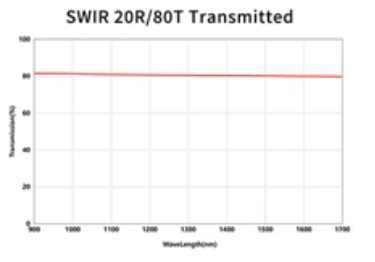

SWIR 20 80 BEAMSPLITTER

20R: 80T@900-1700nm

VIS 30 70 BEAMSPLITTER

30R: 70T@400-700nm

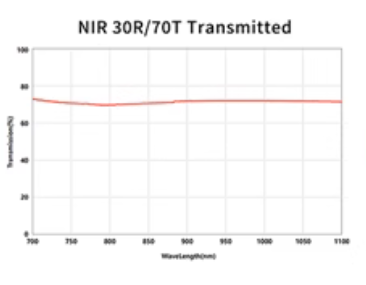

NIR 30 70 BEAMSPLITTER

30R: 70T@700-1100nm

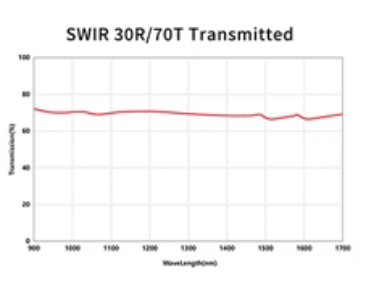

SWIR 30 70 BEAMSPLITTER 1

30R: 70T@900-1700nm

VIS 40 60 BEAMSPLITTER

40R: 60T@400-700nm

NIR 40 60 BEAMSPLITTER

40R: 60T@700-1100nm

SWIR 40 60 BEAMSPLITTER

40R: 60T@900-1700nm

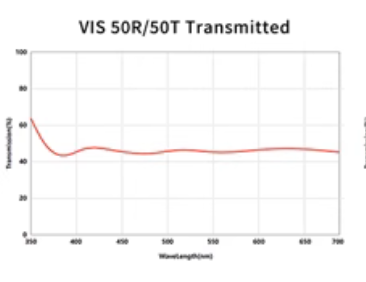

VIS 50 50 BEAMSPLITTER

50R: 50T@400-700nm

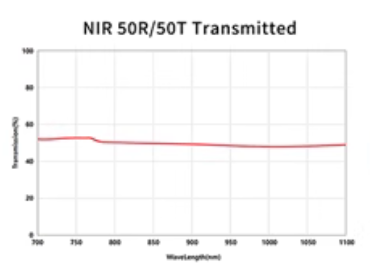

NIR 50 50 BEAMSPLITTER

50R: 50T@700-1100nm

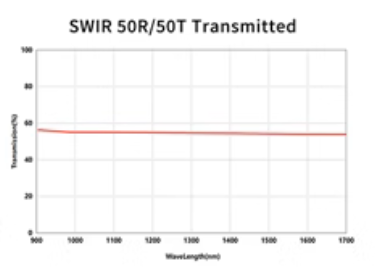

SWIR 50 50 BEAMSPLITTER

50R: 50T@900-1700nm

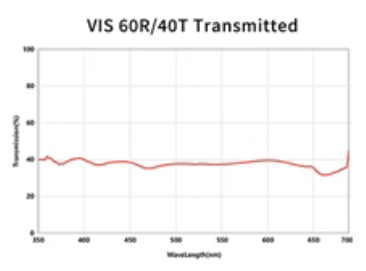

VIS 60 40 BEAMSPLITTER

60R: 40T@400-700nm

NIR 60 40 BEAMSPLITTER

60R: 40T@700-1100nm

SWIR 60 40 BEAMSPLITTER

60R: 40T@900-1700nm

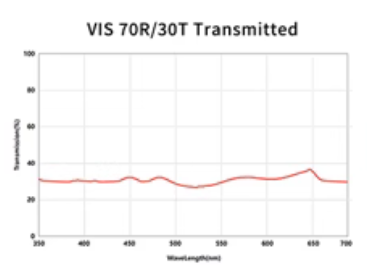

VIS 70 30 BEAMSPLITTER 1

70R: 30T@400-700nm

VIS 70 30 BEAMSPLITTER

70R: 30T@700-1100nm

SWIR 70 30 BEAMSPLITTER

70R: 30T@900-1700nm

VIS 80 20 BEAMSPLITTER

80R: 20T@400-700nm

NIR 80 20 BEAMSPLITTER

80R: 20T@700-1100nm

SWIR 80 20 BEAMSPLITTER

80R: 20T@900-1700nm

Stock Size Parameters

Size (mm) Thickness (mm) Splitting ratio Coated
12.5 3 20R/80T; 30R/70T; 40R/60T; 50R/50T; 60R/40T; 70R/30T; 80R/20T VIS; NIR; SWIR
25 3 20R/80T; 30R/70T; 40R/60T; 50R/50T; 60R/40T; 70R/30T; 80R/20T VIS; NIR; SWIR
50 3 20R/80T; 30R/70T; 40R/60T; 50R/50T; 60R/40T; 70R/30T; 80R/20T VIS; NIR; SWIR
12.5*17.5 3 20R/80T; 30R/70T; 40R/60T; 50R/50T; 60R/40T; 70R/30T; 80R/20T VIS; NIR; SWIR
25*36 3 20R/80T; 30R/70T; 40R/60T; 50R/50T; 60R/40T; 70R/30T; 80R/20T VIS; NIR; SWIR
50*72 3 20R/80T; 30R/70T; 40R/60T; 50R/50T; 60R/40T; 70R/30T; 80R/20T VIS; NIR; SWIR
