Beam splitter 98.5%: 1.5%
PRODUCT CATEGORIES
INOUIRY
Technical parameters
| Items | Parameters |
|---|---|
| Material | K9 |
| Diameter | 3-300mm |
| Thickness | customizable |
| (transmittance: reflection) T: R | 98.5%:1.5% |
| Spectrometric error value | +-1% |
| Incident angle | 0°or 45° |
| Coating | 400-1100nm Customizable |
Note:
The above parameters are for reference only. For detailed Optical beam splitter parameters, please consult our online customer service personnel or call our company.

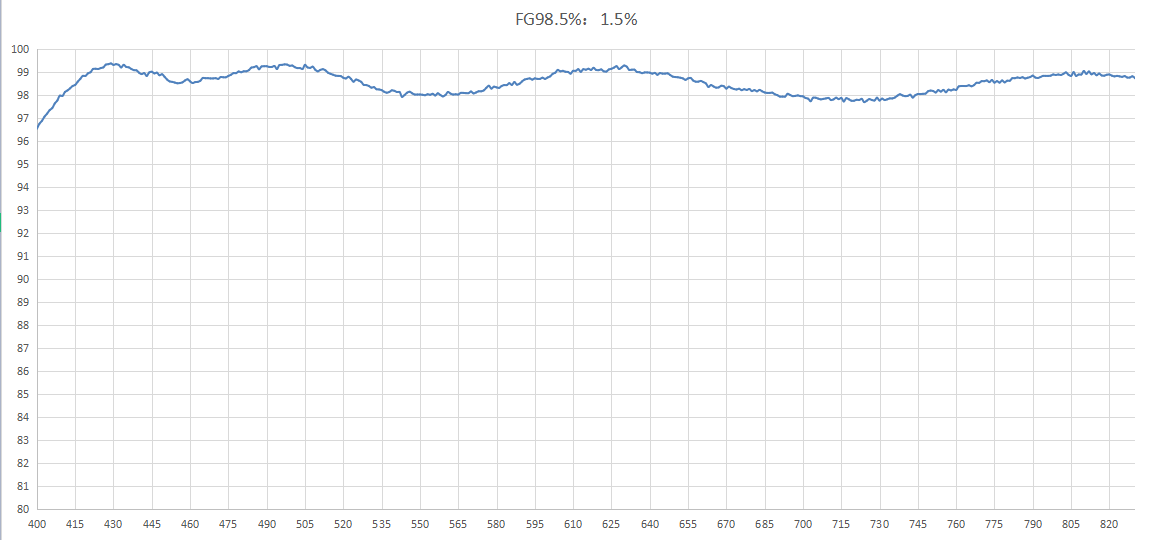

spectral curve
In addition, We can customize the Optical beam splitter according to customer requirements or drawings.
