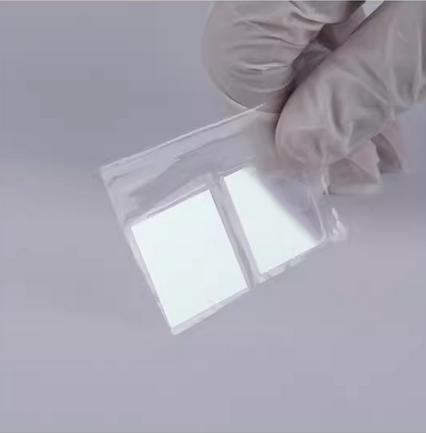

95%: 5% beam splitter
PRODUCT CATEGORIES
Visible light 5:95 beamsplitter
Parameters: customizable
Material: specially processed K9 glass or float glass
Polishing: double sided polishing
Surface accuracy: 20-10
Spectral wavelength: 850nm (750nm ~ 950nm）
Spectral error value: + / – 1%
Incident angle: 0 degrees or 45 degrees
Product size: 2 * 2 * 0.3mm, 50 * 50 * 0.7mm
Technical parameters
| Items | Parameters |
|---|---|
| Product index | customizable |
| Beam split wavelength | 400-1100nm Customizable |
| T:R | 99%:1%/ 98%:%2/ 95%:5%/ 90%:10%/ 80%:20%/ 70%:30%/ 60%:40%/ 50%:50% |
| Beam split error | +/-1% |
| Incident angle | 0° or 45° |
| Materials | Specially processed K9 glass or float glass |
| Surface quality | 40-20 20-10 |
Note:
The above parameters are for reference only. For detailed Beam splitter parameters, please consult our online customer service personnel or call our company.
spectral curve
In addition, We can customize the optical Beam splitter according to customer requirements or drawings.
