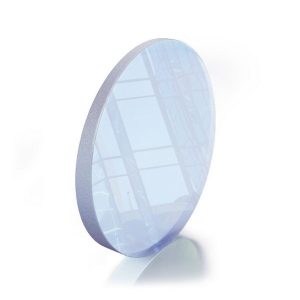

Wedge prisms are usually used to deflect the incident light beam to a specified direction at a set deflection angle. When used in pairs, the outgoing light beam can be positioned in any direction within a cone with the incident light beam as the axis through the relative rotation of the two wedges.
H-K9L Wedge Prism Technology Parameters
| Substrate material | H-K9L optical glass (K9) |
|---|---|
| Diameter error | +0.0/-0.1mm |
| Thickness tolerance | ±0.2mm |
| Angle error | ±30 seconds |
| Surface accuracy | λ/10 @ 633 nm |
| Surface quality | 40/20 |
| Chamfer | 0.2~0.5mm×45° |

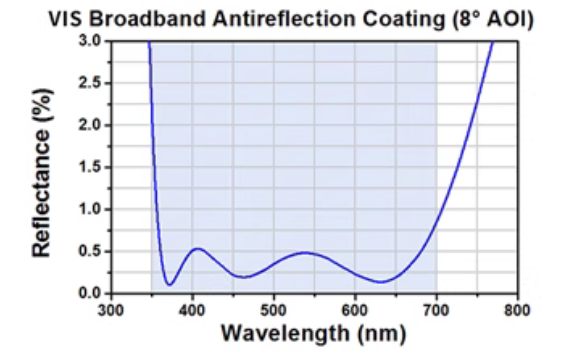

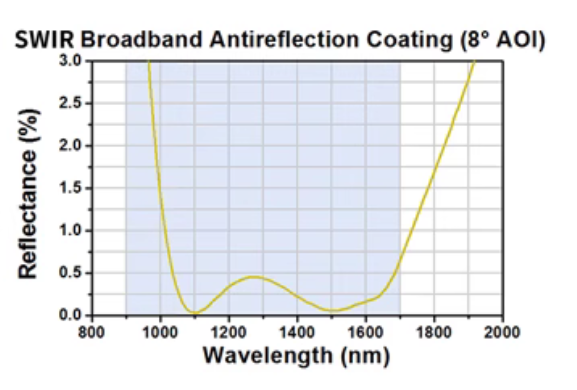

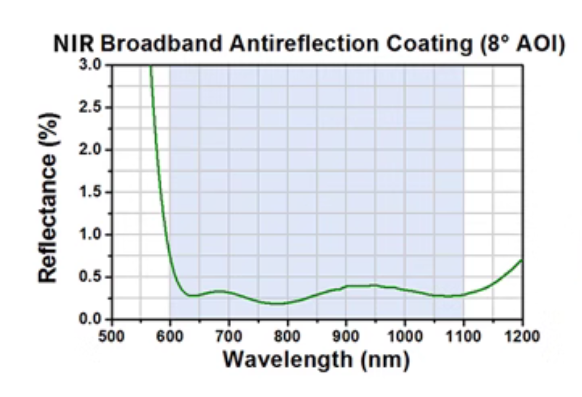

| Coated | Uncoated; VIS @350~700nm; NIR @ 600~1100nm; SWIR @900~1700nm |

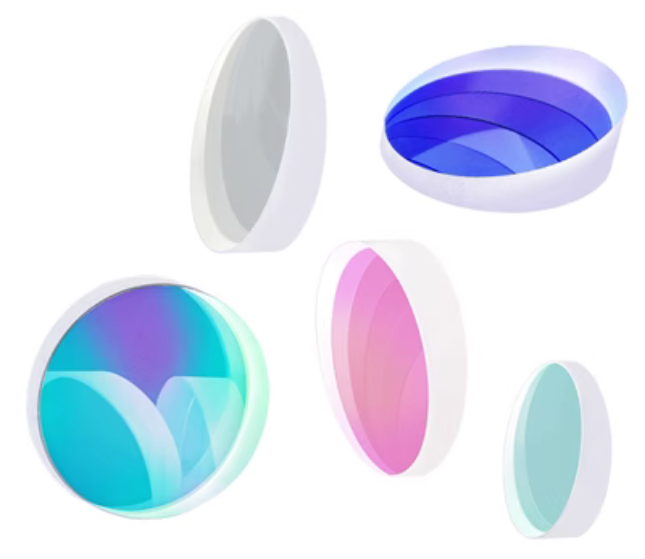

Inventory Parameters With Wedge Lenses

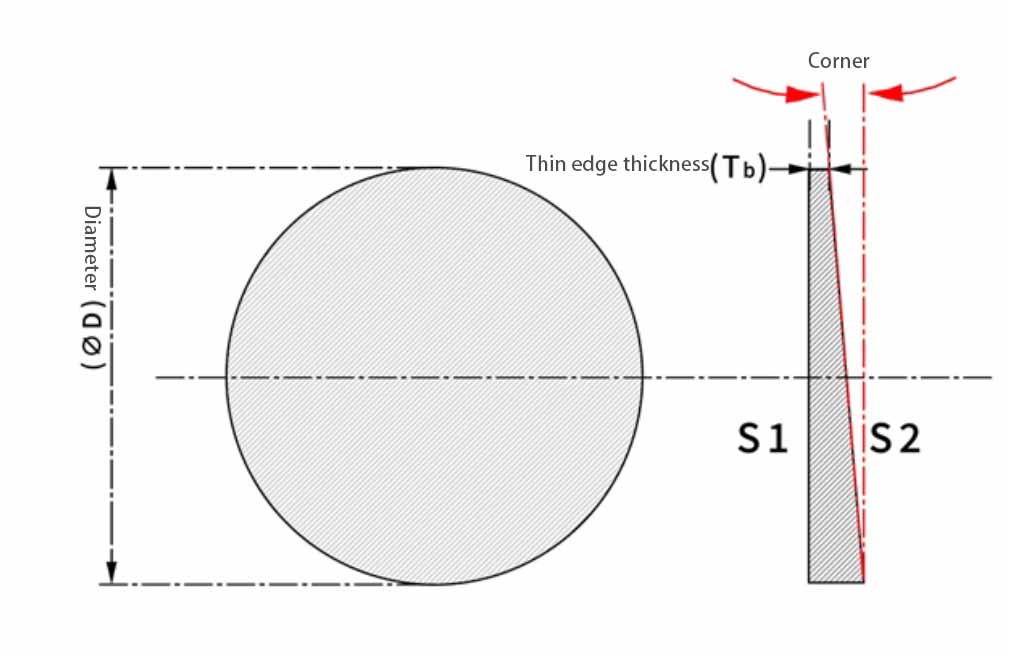

| Diameter (ØD) | Thin edge thickness (mm) | Beam Deflection angle @633nm | Angle | Diopter | Coated |
|---|---|---|---|---|---|
| 25 | 3 | 0.5° | 0°58′ | 0.87 | No; VIS; NIR; SWIR Coated |
| 25 | 3 | 1° | 1°56′ | 1.74 | No; VIS; NIR; SWIR Coated |
| 25 | 3 | 2° | 3°52′ | 3.49 | No; VIS; NIR; SWIR Coated |
| 25 | 3 | 4° | 7°41′ | 7 | No; VIS; NIR; SWIR Coated |
| 25 | 3 | 6° | 11°21′ | 10.51 | No; VIS; NIR; SWIR Coated |
| 25 | 3 | 8° | 14°51′ | 14.05 | No; VIS; NIR; SWIR Coated |
| 25 | 3 | 10° | 18°08′ | 17.63 | No; VIS; NIR; SWIR Coated |
Fused Silica Wedge Lens Technology Parameters

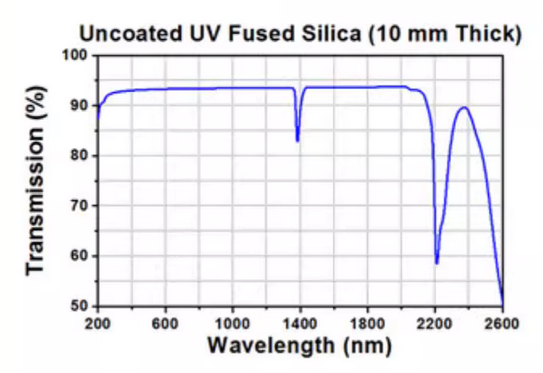

| Substrate material | UV Fused Silica |
|---|---|
| Diameter error | +0.0/-0.1mm |
| Thickness tolerance | ±0.2mm |
| Angle error | ±15 seconds |
| Surface accuracy | λ/10 @ 633 nm |
| Surface quality | 40/20 |
| Chamfer | 0.2~0.5mm×45° |

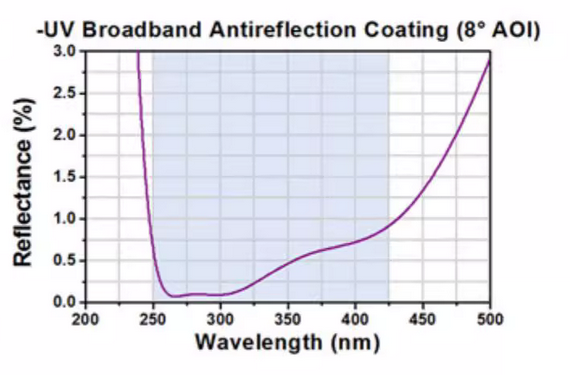

| Coated | Uncoated; UV@250-425nm |
Inventory Parameters With quartz Wedge Lens
| Diameter (ØD) | Thin edge thickness (mm) | Beam Deflection angle @633nm | Angle | Diopter | Coated |
|---|---|---|---|---|---|
| 25 | 3 | 0.5° | 0°58′ | 0.87 | No; UV Coated@250-400nm |
| 25 | 3 | 1° | 1°56′ | 1.74 | No; UV Coated@250-400nm |
| 25 | 3 | 2° | 3°52′ | 3.49 | No; UV Coated@250-400nm |
| 25 | 3 | 4° | 7°41′ | 7 | No; UV Coated@250-400nm |
| 25 | 3 | 6° | 11°21′ | 10.51 | No; UV Coated@250-400nm |
If you need to order stock or custom wedge prism lenses, please contact our sales team:
