70%: 30% beam splitter

It is used for beam separation and synthesis of optical instruments, synthesis of 3D pictures, color processing of AOI automatic optical detector, and light splitting of laser tube cap in optical communication band.

UV band: 250 ~ 400nm spectral, spectral ratio T: r = 50:50 (according to the needs of customers)

Visible light band: 400 ~ 700nm spectral, spectral ratio T: r = 50:50, t: r = 70:30 (according to customer requirements)

Near infrared band: 700 ~ 1700nm light splitting. Typical wavelengths include 850nm light splitting diaphragm and 1310 / 1550nm light splitting diaphragm (light splitting ratio T: r = 50:50, etc.)


Advantages: no ghosting, small PDL value, clear imaging, small spectral ratio error, and can be purchased in large and small batches.

high reflective mirror
Technical parameters
Items Parameters
Product index customizable
Beam split wavelength 400-1100nm Customizable
T:R 99%:1%/ 98%:%2/ 95%:5%/ 90%:10%/ 80%:20%/ 70%:30%/ 60%:40%/ 50%:50%
Beam split error +/-1%
Incident angle 0° or 45°
Materials Specially processed K9 glass or float glass
Surface quality 40-20 20-10

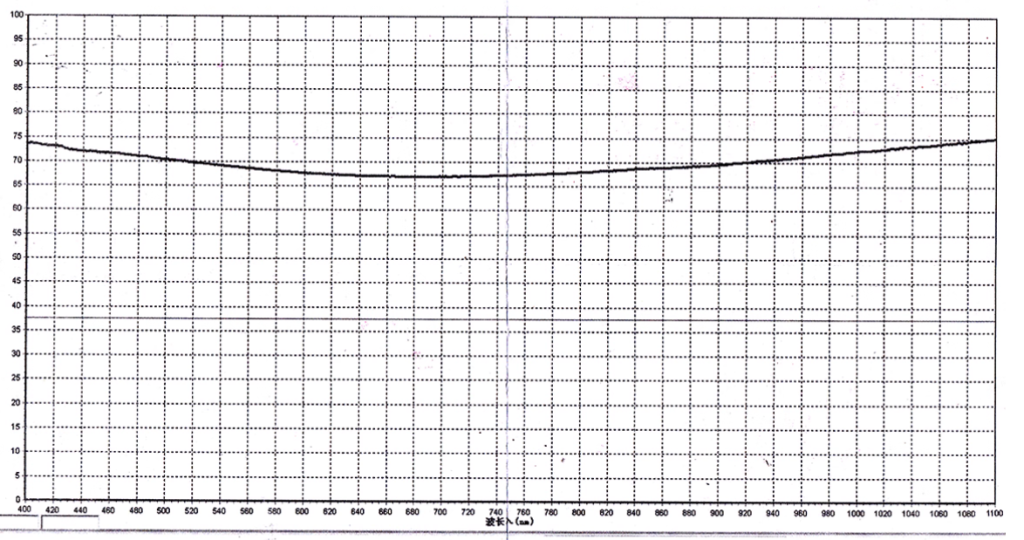

spectral curve

In addition, We can customize the optical Beam splitter according to customer requirements or drawings.

For details, please consult:
