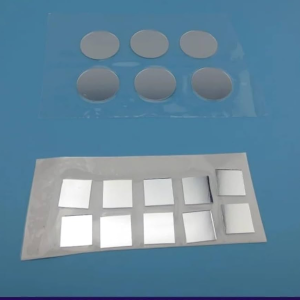

50%: 50% Beam Splitter

PRODUCT CATEGORIES
INOUIRY
Contact Form Demo (#3)

50%: 50% application fields: used in optical instruments, optical communication, optical fiber communication module in industrial cameras, optical fiber end amplification detector, green laser module.

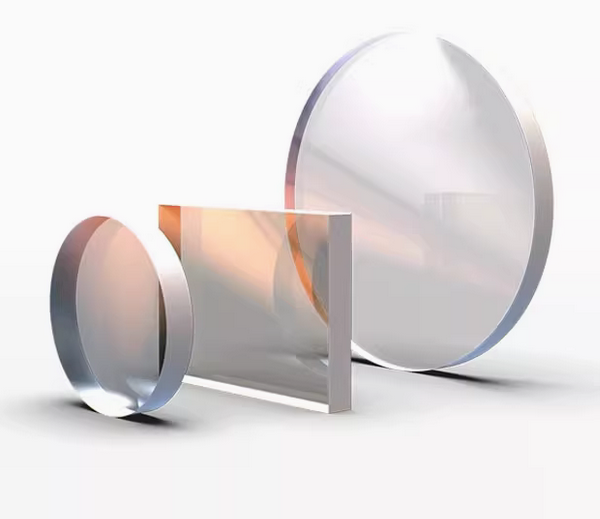

beam splitter

Technical parameters with beam splitter glass

Items Parameters
Product index customizable
Beam split wavelength 250-2000nm Customizable
T:R 99%:1%/ 98%:%2/ 95%:5%/ 90%:10%/ 80%:20%/ 70%:30%/ 60%:40%/ 50%:50%
Beam split error +/-1%
Incident angle 0° or 45°
Materials Specially processed K9 glass or float glass
Surface quality 40-20 20-10

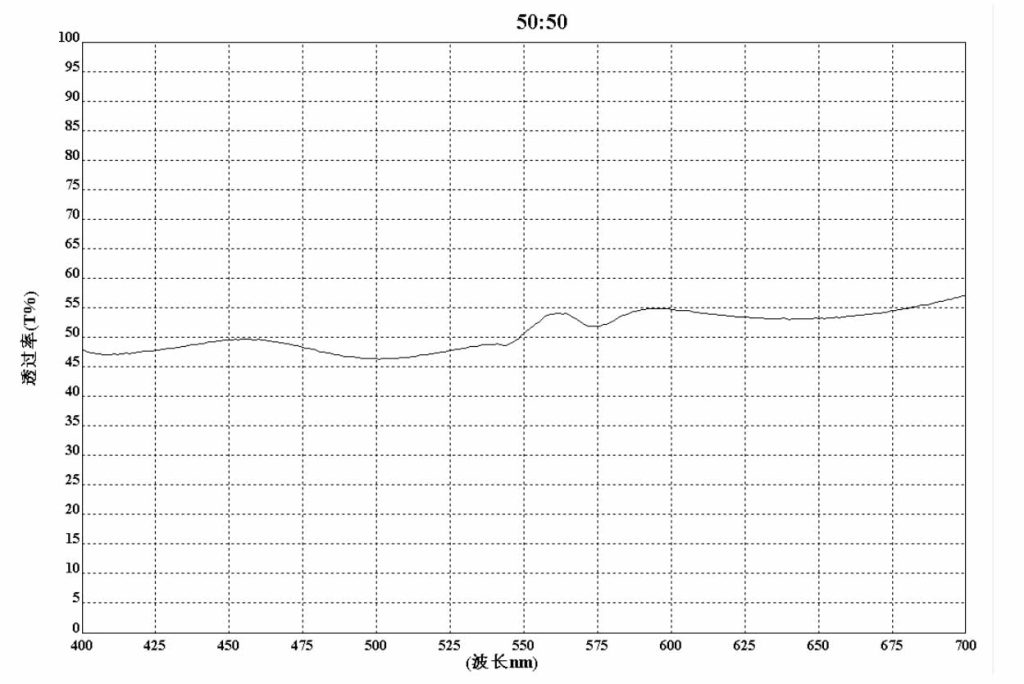

50 50 beamsplitter

Inventory Parameters with 50:50 beam splitter glass lens

Size (mm) Thickness (mm) Splitting ratio (%) Wavelength (mm) Material
25*15 3 50:50 400-700 H-K9L
21*14 1.1 50:50 400-700 Ultra-clear glass
30*30 1.1 50:50 400-700 Ultra-clear glass
50*50 1.1 50:50 400-700 Ultra-clear glass
75*75 1.1 50:50 400-700 Ultra-clear glass
80*80 1.1 50:50 400-700 Ultra-clear glass
100*100 2 50:50 400-700 Ultra-clear glass
150*150 2 50:50 400-700 Ultra-clear glass
200*200 2 50:50 400-700 Ultra-clear glass
300*300 2 50:50 400-700 Ultra-clear glass
450*35 1.1 50:50 400-700 Ultra-clear glass
850*35 1.1 50:50 400-700 Ultra-clear glass
