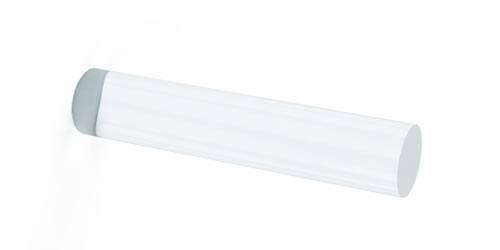

Rod lens

Rod lens



  • Hanzhong Borisun Optics With many years of rod lens processing experience, we can process rod lenses with various specifications and different base materials, K9 rod lens, quartz rod lens, quartz rod lens and column lens.

Technical parameters
Items Parameters
Material optical glass, H-K9L (N-BK7),UV fused quartz (JGS1, Corning 7980), infrared fused quartz (jgs3, Corning 7978)
Radius of curvature ± 1mm - ± 50000mm ± 1%
Diameter 3mm-300mm ± 0.1mm
Center thickness tolerance ± 0.05mm (we can process to ± 0.01mm with high precision)
Center deviation 3′(we can process to 30 ″with high precision)
Surface accuracy λ/ 8 (high precision, we can process to 1 / 10λ)
Surface quality 40/20 (we can process to 10-5 with high precision)
Effective caliber ≥90%
spectral curve

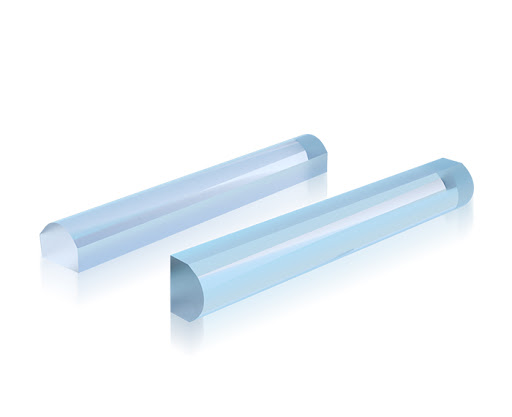

In addition, we have thousands of stock of K9 Plano convex cylindrical lens, Biconvex cylindrical lens, concave cylindrical lens, Meniscus cylindrical lens, and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order.

For details, please consult:
