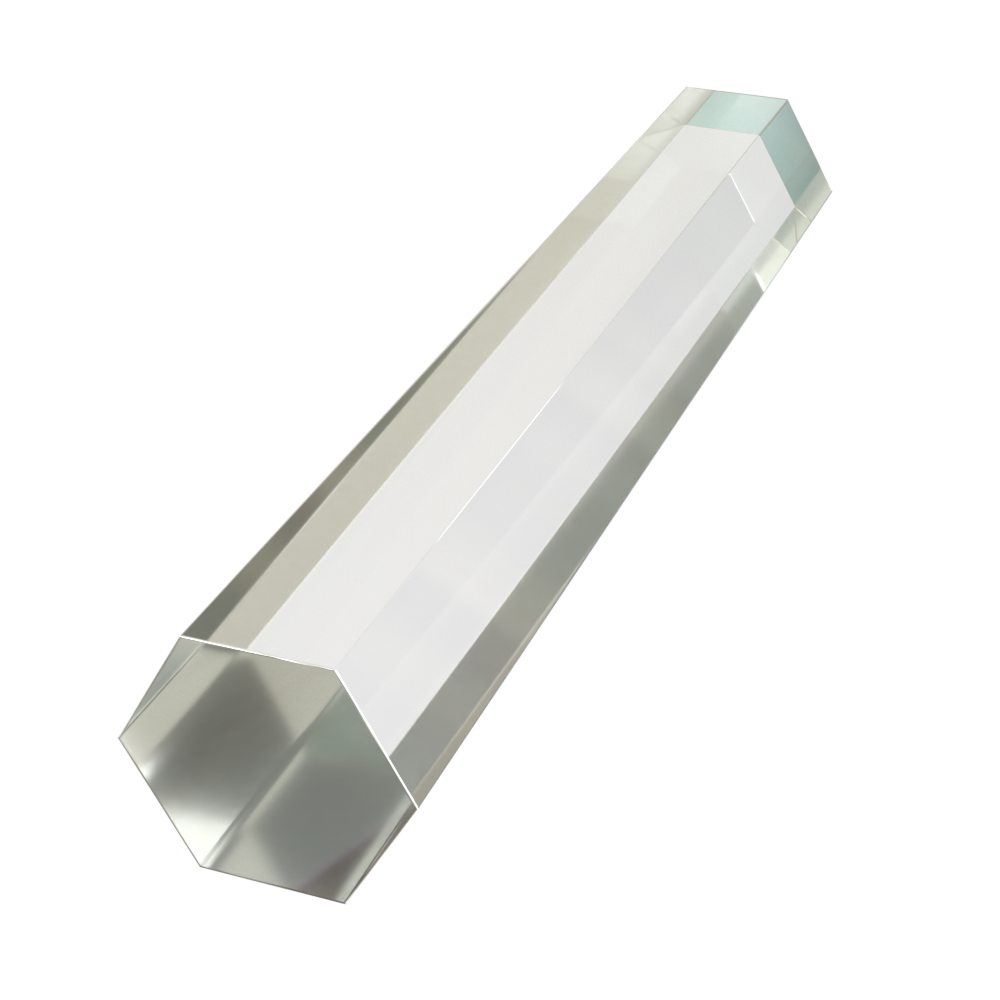

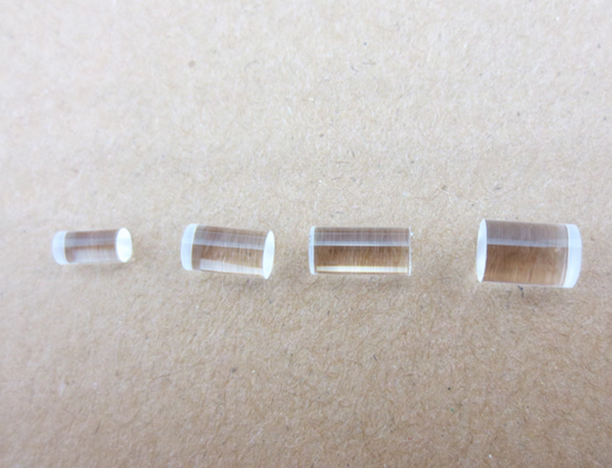

N-bk7 rod lens optical Light guide prism
PRODUCT CATEGORIES
![Light guide prism N-bk7](https://www.borisuns.com/wp-content/uploads/2022/05/导光棱镜1.png)
Technical parameters
Items | Parameters |
---|---|
Material | K9/n-bk7 |
Diameter | 3-100mm |
Thickness | customizable |
Diameter tolerance | +-0.01-0.1mm |
Surface accuracy | 60/40 40/20 20/10 10/5 |
Surface quality | 10/λ 8/λ 4/λ |
Coating | according to the customer requirements |
Note:
The above parameters are for reference only. For detailed Optical rod lens parameters, please consult our online customer service personnel or call our company.
spectral curve
In addition, We can customize the Optical rod lens according to customer requirements or drawings.
For details, please consult:
