Hot reflectors are often used in light sources or optical signals that contain visible light and infrared light. Thermal reflectors can separate visible light from infrared light and collect only visible light, alleviating system temperature rise caused by infrared radiation.

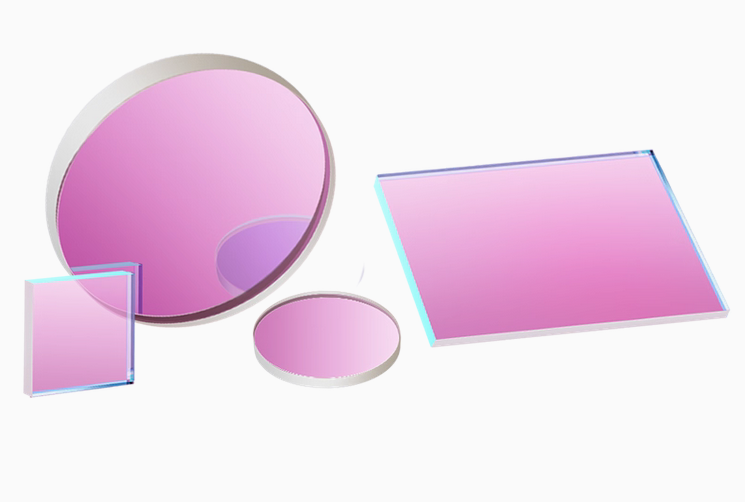

Hor Mirrors are made of high-quality heat-resistant borosilicate glass. The surface is coated with a high-quality multi-layer dielectric film. The spectral characteristics of thermal reflectors are characterized by high transmittance in the visible light band and high reflectivity in the near-infrared light band. Using thermal reflectors can reduce heat and reduce the impact on overall system performance.

Technical parameters with hot mirror

Material Schott borosilicate glass
Surface accuracy <5 wavelengths/25mm² @633nm
Parallelism <1′
Surface quality 60/40
Dimension error +0.0/-0.25 mm
Incident angle
Thickness 2 mm±0.2 mm
Square (rectangular) substrate tolerance ±0.25 mm
Visible transmittance Ravg>95%@425~675 nm
Infrared reflectivity Ravg>90%@750~1150 nm

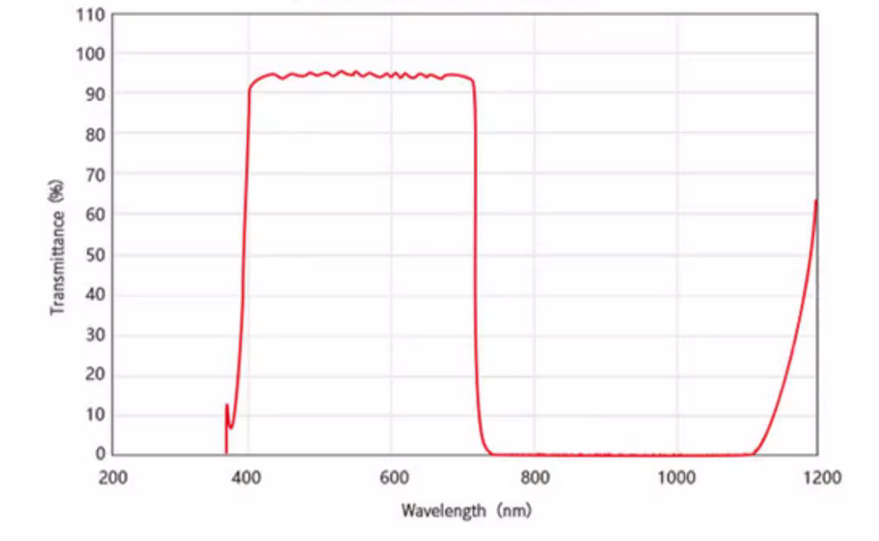

spectral curve with hot reflectors mirror

hot mirror 1
hot mirror

Inventory Parameters With Hot Mirror Lens

Diameter (mm) Thickness (mm) Visible light transmittance (%) Near infrared reflectivity (%)
12.5; 12.5*12.5 1.1 or 2 Tavg>90%@425-675nm Ravg>95%@750-1150nm
25; 25*25 1.1 or 2 Tavg>90%@425-675nm Ravg>95%@750-1150nm
35*35 1.1 or 2 Tavg>90%@425-675nm Ravg>95%@750-1150nm
50; 50*50 1.1 or 2 Tavg>90%@425-675nm Ravg>95%@750-1150nm
80*80 1.1 or 2 Tavg>90%@425-675nm Ravg>95%@750-1150nm
110*120 1.1 or 2 Tavg>90%@425-675nm Ravg>95%@750-1150nm
