Gold-coated Plano Concave Mirror

PRODUCT CATEGORIES
INOUIRY
Contact Form Demo (#3)

Gold coated plano-concave spherical reflector, the reflective surface is part of the spherical surface, parallel incident light can be reflected by the spherical surface to converge to a point, with a positive focal length. The focal length of the plano-concave spherical reflector is half the radius of curvature of the spherical surface.

We provide reflectors with no coating and reflective coating. The reflective coating options include ordinary reinforced aluminum coating, protective UV reflective aluminum coating, protective silver coating, protective gold coating, dielectric high reflective coating D01, dielectric high reflective coating D02, dielectric high reflective coating D03, and dielectric high reflective coating D04.

Technical parameters with Gold Coted` Concave Mirrors

Material H-K9L
Centering error <3′
Thickness tolerance ±0.2 mm
Focal length tolerance ±2%
Dimension error +0.0/-0.1 mm
Surface accuracy λ/4@633 nm
Reflection surface quality 60/40
Face back Fine grinding or inspection polishing
Chamfer Protective chamfer 0.2~0.5mm×45°
Coating Protective Gold Coated@2000-20000nm

spectral curve with Protective Gold Coated Concave Reflector Mirror

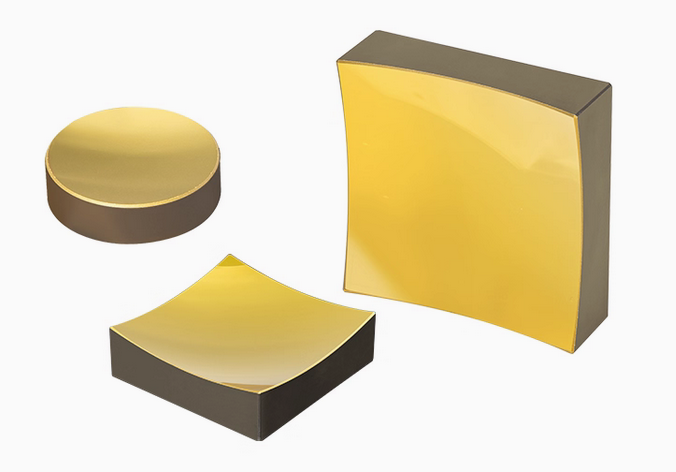

gold concave mirror
4

Inventory Parameters With Protective Gold Glass Concave mirror

Diameter (mm) Focal length (mm) Radius (mm) Edge thickness (mm) Center thickness (mm) Coated
12.5; 12.5*12.5 5-75 10-150 5.19-3.13 3 Protective gold coated@2000-20000nm
25; 25*25 20-500 40-1000 8-6 6 Protective gold coated@2000-20000nm
50; 50*50 50-500 100-1000 12.18-9.31 9 Protective gold coated@2000-20000nm
75 56.25-500 112.5-1000 18.4-9.7 9 Protective gold coated@2000-20000nm
