Fused quartz elliptical mirror

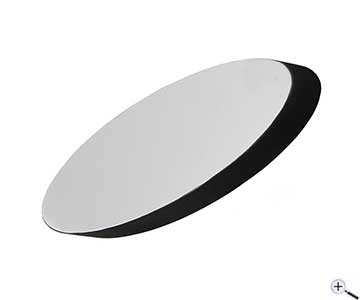

The reflecting surface of the elliptical mirror is a plane with an elliptical outline. When it is placed in the optical path with an inclination of 45 °, the light passing shape is circular.

Borisun oprics support customized elliptical mirrors without coating and with reflective coating. The options of reflective coating include ordinary protective aluminum coating, protective silver coating, protective gold coating and dielectric high reflection coating. Fused quartz is suitable for UV applications.

Technical parameters
Items Parameters
Material JGS1
Radius of curvature ± 1mm - ± 50000mm ± 1%
Diameter 3mm-300mm ± 0.1mm
Center thickness tolerance ± 0.05mm (we can process to ± 0.01mm with high precision)
Center deviation 3′(we can process to 30 ″with high precision)
Surface accuracy λ/ 8 (high precision, we can process to 1 / 10λ)
Surface quality 60/40 (we can process to 10-5 with high precision)
Effective caliber ≥90%
Coating see table
spectral curve

In addition, We can customize the optical window according to customer requirements or drawings.
