K9 Elliptical mirror
PRODUCT CATEGORIES

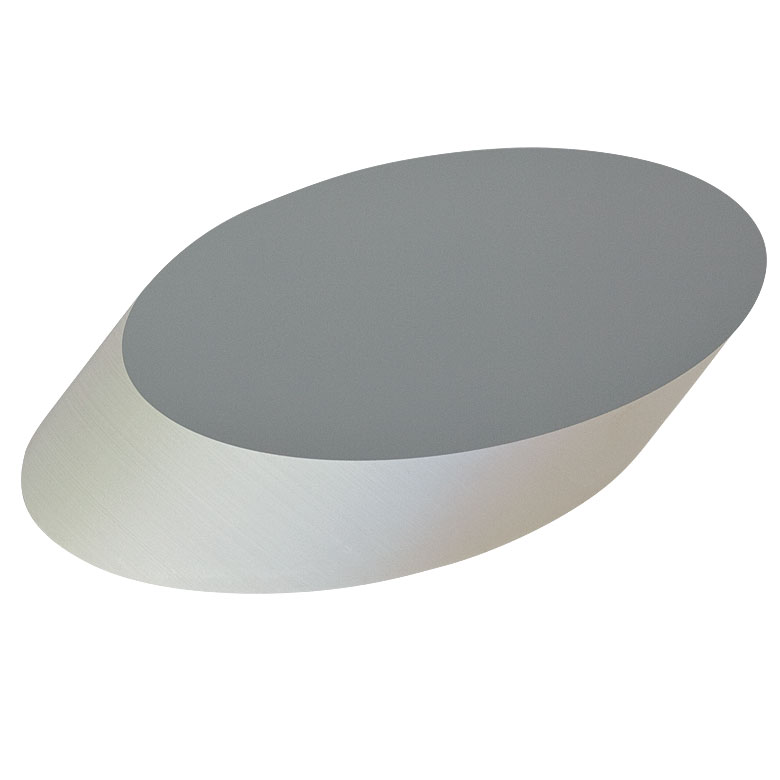

The reflecting surface of the elliptical mirror is a plane with an elliptical outline. When it is placed in the optical path with an inclination of 45 °, the light passing shape is circular.

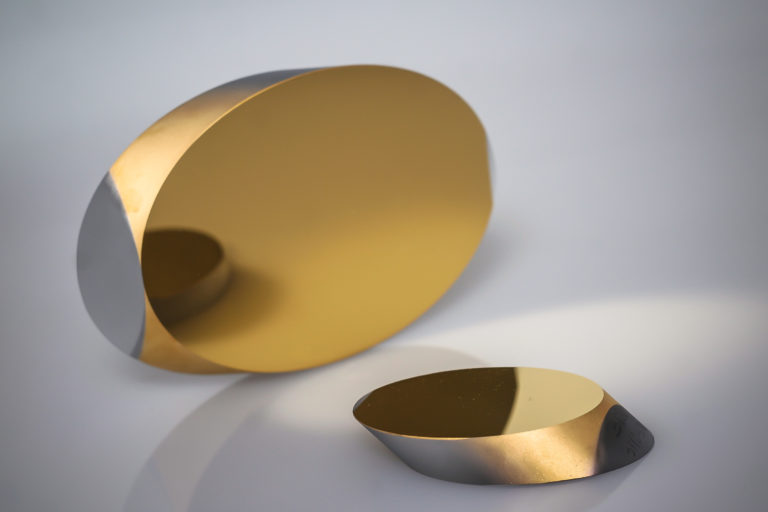

Borisun oprics support customized elliptical mirrors without coating and with reflective coating. The options of reflective coating include ordinary protective aluminum coating, protective silver coating, protective gold coating and dielectric high reflection coating. Fused quartz is suitable for UV applications.
Technical parameters
| Items | Parameters |
|---|---|
| Material | optical glass, H-K9L (N-BK7) |
| Radius of curvature | ± 1mm - ± 50000mm ± 1% |
| Diameter | 3mm-300mm ± 0.1mm |
| Center thickness tolerance | ± 0.05mm (we can process to ± 0.01mm with high precision) |
| Center deviation | 3′(we can process to 30 ″with high precision) |
| Surface accuracy | λ/ 8 (high precision, we can process to 1 / 10λ) |
| Surface quality | 60/40 (we can process to 10-5 with high precision) |
| Effective caliber | ≥90% |
| Coating | protective aluminum coating, protective silver coating, protective gold coating |
spectral curve
In addition, We can customize the optical window according to customer requirements or drawings.
For details, please consult:
