Laser Focusing Lenses
PRODUCT CATEGORIES
INOUIRY
Laser lenses include laser spherical lenses, laser non spherical lenses, laser cylindrical lenses, etc. They play a role in laser optical systems, such as converging lines and shaping laser beams.
| Material | quartz, zinc selenide |
|---|---|
| Reflectance | Ravg≥99.5% |
| Incident angle | 0 ° |
| Surface Accuracy | λ/4 @ 633nm |
| Aperture | ≥ 90% |
| Cleanliness | 40/20 |
| Central Deviation | <1 ' |
| Diameter Tolerance | +0/-0.1mm |
| Focal Length Tolerance | ± 1% |
| Center Thickness Tolerance | +0/-0.1mm |

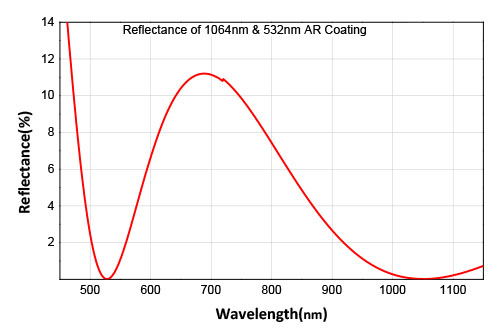

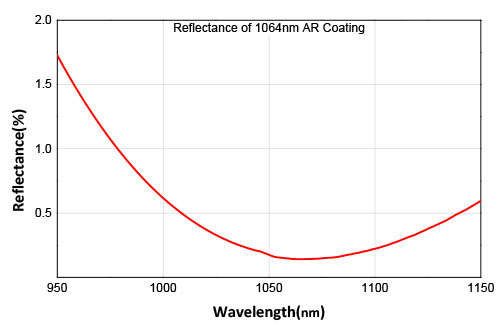

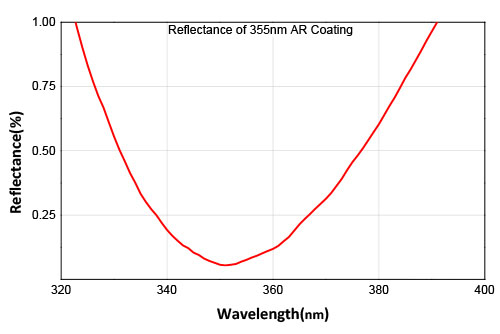

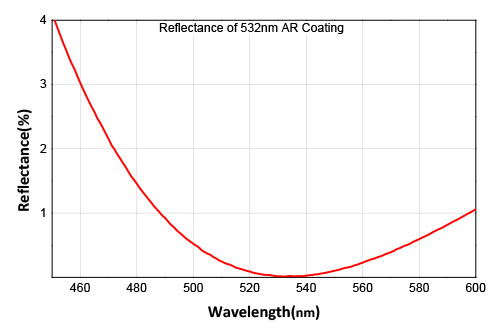

| Damage Threshold | 20J/cm ² @ 1064nm, 20ns（ AR@1064nm ) , 6.8J/ cm²@532nm,20ns ( AR@532nm ) ,5J/ cm²@355nm,20ns ( AR@355nm )15J/ cm²@1064nm,20ns ( AR@1064 &532nm) |
Borisun is a professional optical component supplier in China, with a large selection of standard laser lenses for you to choose from, as well as customized non-standard laser lenses.
If you're interested, please kindly contact our sales team: info@borisuns.com
