80%: 20% Beam Splitter
PRODUCT CATEGORIES
INOUIRY
80%: 20% beam splitter application field: used in optical instruments, optical communication, optical fiber communication module in industrial cameras, optical fiber end amplification detector. Green laser module, laser, industrial digital microscope, image processing equipment, etc.
Technical parameters
| Items | Parameters |
|---|---|
| Beam split wavelength | 250- 2000nm Customizable |
| T:R | 99%:1%/ 98%:%2/ 95%:5%/ 90%:10%/ 80%:20%/ 70%:30%/ 60%:40%/ 50%:50% |
| Beam split error | +/-1% |
| Incident angle | 0° or 45° |
| Materials | Specially processed K9 glass or float glass |
| Surface quality | 60/40 80/50 |

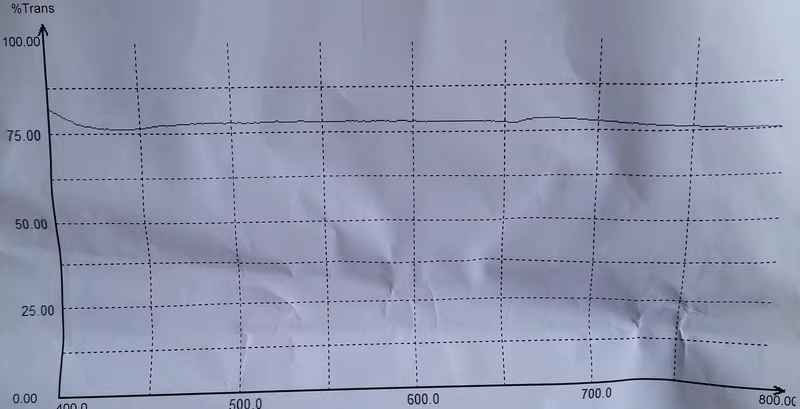

spectral curve
We have some spot beamsplitters, and we also accept custom orders. If you are interested, please contact our sales team:
info@borisuns.com
