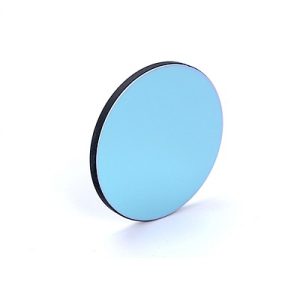

235nm narrow band filter

PRODUCT CATEGORIES

235nm narrow-band filter is widely used in laser technology, medical treatment, satellite remote sensing and optical communication technology.

Technical parameters

Items	Parameters
Center wavelength	235nm+-5nm
Incident angle	0°
Half peak bandwidth	20-40nm
Peak transmittance	> 85% (according to customer demand)
Product size	3mm-80mm (customizable)
Cut off wavelength	200nm-1100nm (according to the customer requirements)
Cut off depth	>OD3-OD6 UV-NIR
Product material	optical grade glass (K9, BK7, B270, d263t, JGS1, color glass, float glass, etc.)
Surface quality	national standard grade III /American Standard 60-40

Note: The above parameters are for reference only. For detailed filter parameters, please consult our online customer service personnel or call our company.

spectral curve

In addition, We can customize the optical filters according to customer requirements or drawings.
