275nm Narrow Band Filter

1618294278
Technical parameters
Center wavelength 275nm+-2nm
Half peak bandwidth 10nm+-2nm; 20nm+-2nm
Peak transmittance >15% (according to customer demand)
Cut off wavelength 200nm-2000nm (according to the customer requirements)
Cut off depth >OD3-OD6 UV-NIR
Incident angle 0° (according to customer requirements)
Product size 3mm-80mm (customizable)
Thickness According to your requirements

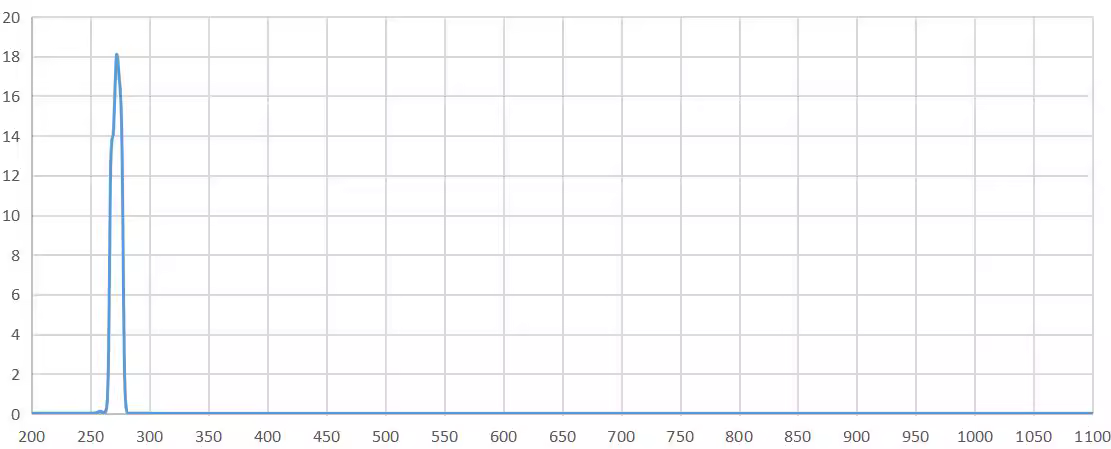

spectral curve
Related Products

In addition, We can customize the Optical Filters according to customer requirements or drawings.
