GDTB bandpass filter

GDTB bandpass filter

Bandpass filter has a wide bandwidth

Glass with obvious cutoff at short wave and long wave

Their spectral characteristics

From the maximum value of transmissivity (TM)

And its wavelength( λ M) Location

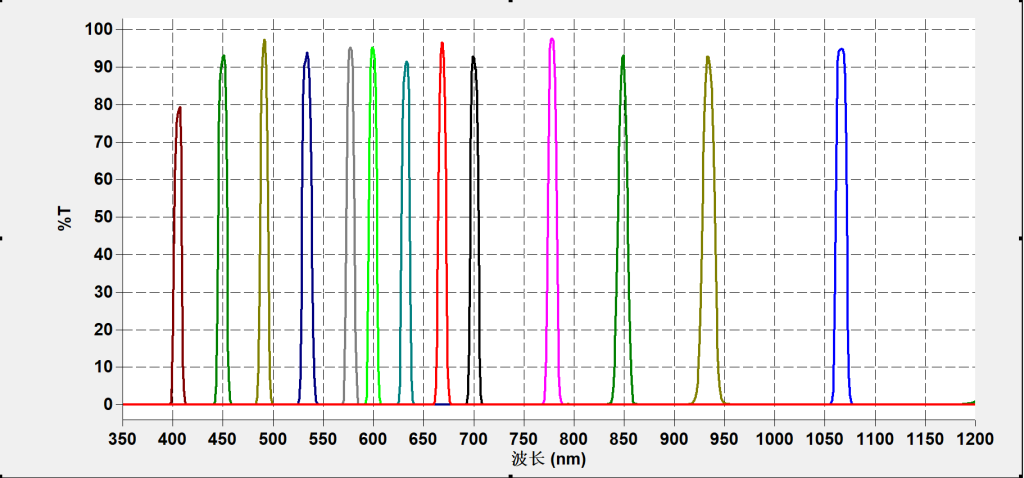

BANDPASS FILTER

Short wave cutoff wavelength

Long wave cutoff wavelength

And half band degree

Application of Broadband Filter

In the practical application of optical engineering

Not all places need band-pass filters

All hope that the narrower the passband, the better

There is also a need for broadband filters

For example, automatic dimming mask for welding protection

It is required to use a piece that is transparent to visible light

Bandpass filter for UV and IR depth cutoff

Application of Narrow Band Filter

For a long time, F-P interference type membrane

As the only way to obtain narrowband pass filter

It is widely used in optical waveband

DWDM in optical fiber communication in recent years

Dense wavelength division multiplexer technology

Using F-P interference optical ultra narrow band filter

Expand the channel capacity of a single fiber

Application of optical ultra narrow band filter

And manufacturing technology to a new level

Common indicators of Narrow Band Filter

Material Colored optical glass

Surface quality 60-40 or better

Areal accuracy λ/ 2 or higher

Peak transmittance 20%~65% (standard conditions)

Dimension tolerance ± 0.1mm

Thickness tolerance ± 0.05mm

ABOUT BORISUN

Hanzhong Brisun Optics Co., Ltd. Is the high precision optical element manufacturer provides customized production of Various optical lenses, including spherical lens, cylindrical lens, optical window, mirror, prism, filter, metal base mirror and other high-precision optical elements. The base materials include various optical glass, fused quartz, calcium fluoride (CaF2), zinc selenide (ZnSe), germanium (GE), silicon (SI), sapphire, metal and other materials. And provide antireflective film, high reflection film, spectroscopic film, metal film and other optical coatings.

Welcome to OEM and Purchasing!
