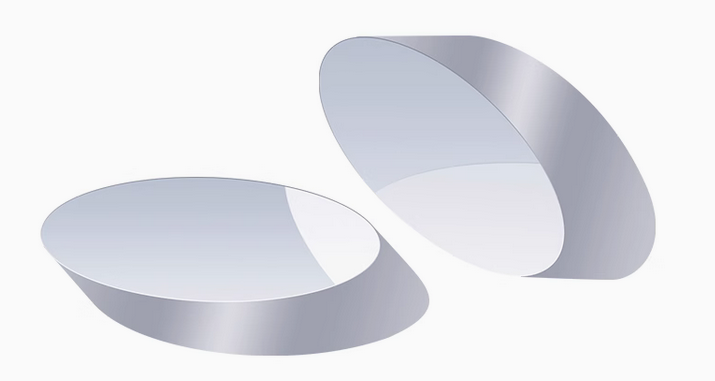

UV AL Coated Elliptical Reflector
PRODUCT CATEGORIES
INOUIRY
UV aluminum-coated elliptical reflector, the reflective surface is a plane, the outline is elliptical, and the light-transmitting shape is circular when placed in the optical path at a 45° tilt.
Elliptical reflectors are made of quartz and K9. Uncoated and reflective-coated elliptical reflectors are available. The reflective coating options include ordinary protective aluminum coating, protective UV coating, protective silver coating, protective gold coating, and dielectric coating.
Technical parameters with UV AL Coated Elliptical Reflector
| Material | H-K9L or Quartz |
|---|---|
| Centering error | <3′ |
| Thickness tolerance | ±0.2 mm |
| Focal length tolerance | ±2% |
| Dimension error | +0.0/-0.1 mm |
| Surface accuracy | λ/10@633 nm |
| Reflection surface quality | 10/5 |
| Face back | Fine grinding or inspection polishing |
| Chamfer | Protective chamfer 0.2~0.5mm×45° |
| Coating | UV enhanced aluminum coated@250-700nm |
spectral curve with UV enhanced Aluminum Coated Elliptical mirror
Inventory Parameters With Glass Elliptical mirror
| Minor axis (mm) | Major axis (mm) | Thickness (mm) | Coated |
|---|---|---|---|
| 25 | 35.68 | 6 | UV aluminum coated@250-700nm |
| 50 | 70.72 | 12.5 | UV aluminum coated@250-700nm |
If you are interested and need custom Glass Elliptical Mirrors or bulk orders, please contact our sales team:
info@borisuns.com
