Triple achromatic lens

Triple achromatic lens

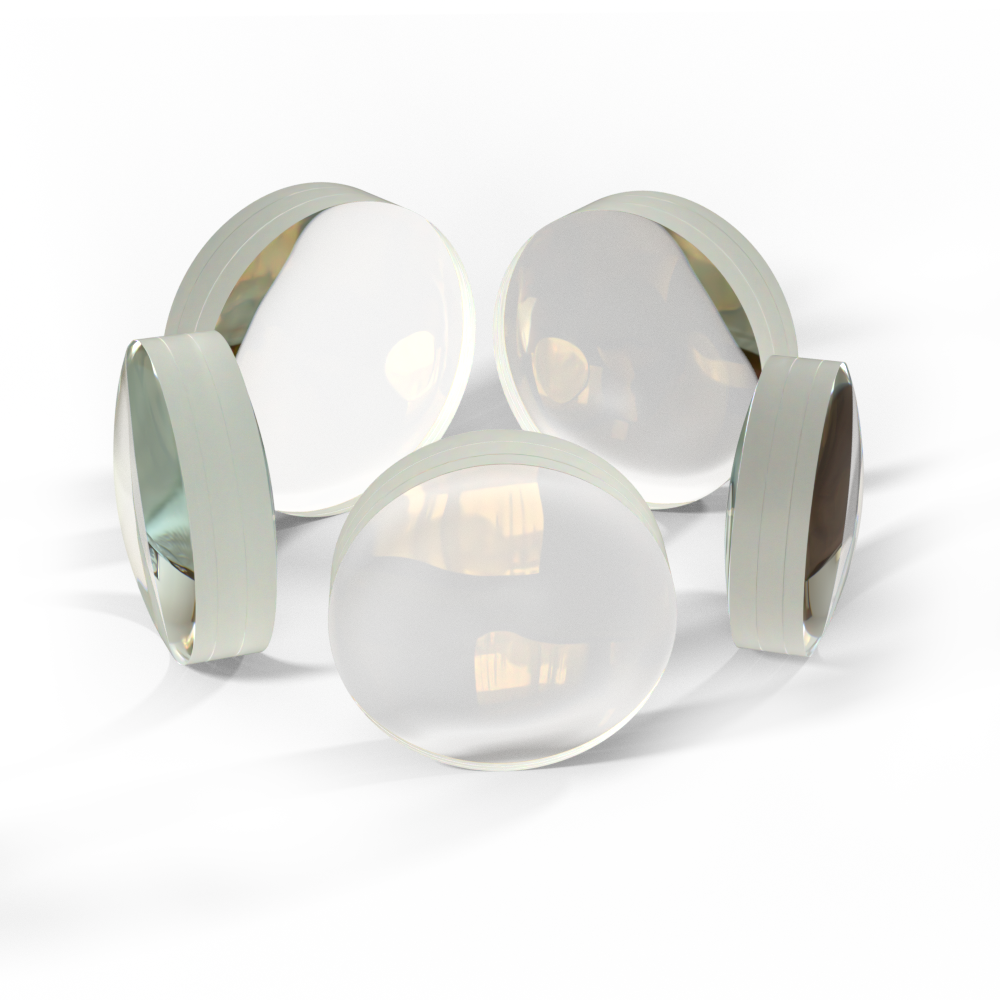

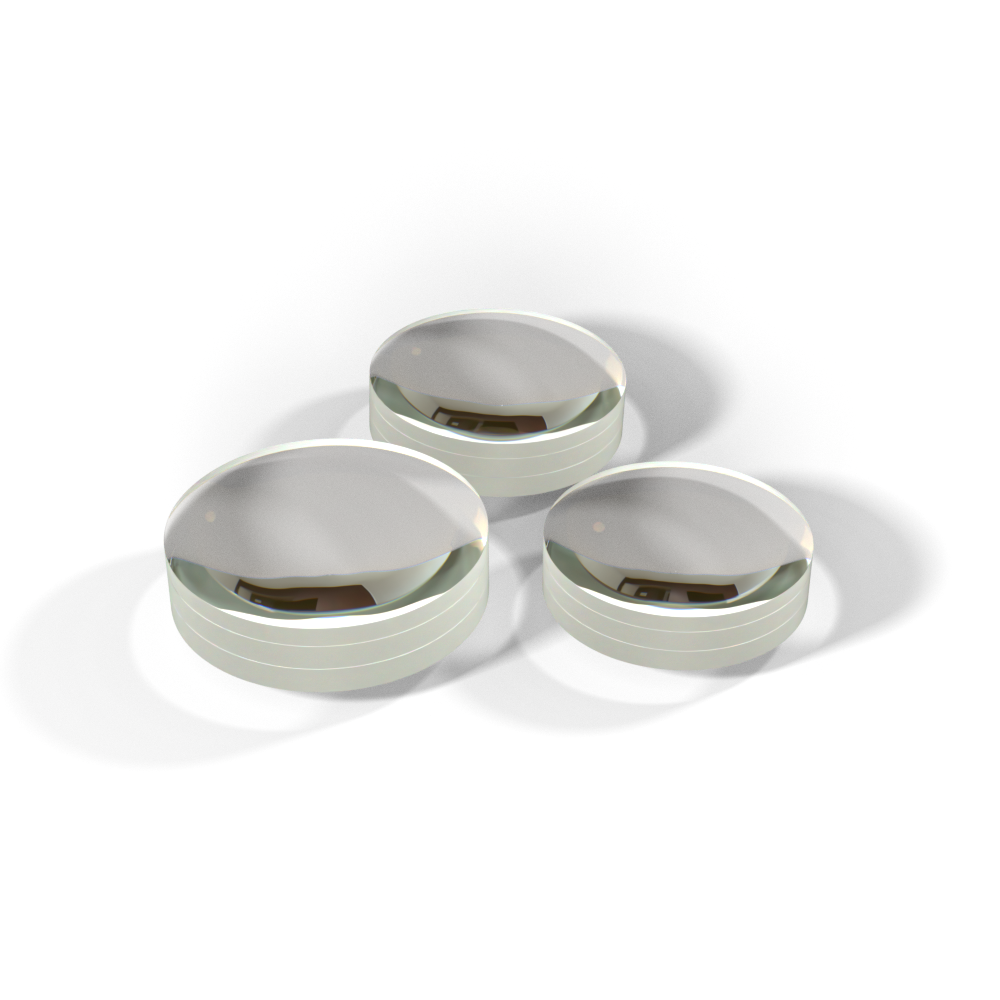

  • Triple achromatic lens is composed of a piece of low refractive index coronal glass and two pieces of high refractive index flint glass. It is usually used to eliminate the axial chromatic aberration of the spherical surface. It is usually used in projection system, imaging system, laser measurement system, etc.
  • Triple achromatic lens has infinite conjugate ratio, which is very suitable for focusing and imaging amplification of collimated beams. Achromatic triple glued lens achromatic triple glued lens is the simplest lens used to correct all primary aberrations. These three glued lenses are made by gluing a low refractive index lens between two high refractive index lenses, which can minimize the color difference and have excellent on-axis and off-axis performance.
Technical parameters
Items Parameters
Material optical glass, H-K9L (N-BK7)
Radius of curvature ± 1mm - ± 50000mm ± 1%
Diameter 3mm-150mm ± 0.1mm
Center thickness tolerance ± 0.05mm (we can process to ± 0.01mm with high precision)
Center deviation 3′(we can process to 30 ″with high precision)
Surface accuracy λ/ 8 (high precision, we can process to 1 / 10λ)
Surface quality 40/20 (we can process to 10-5 with high precision)
Effective caliber ≥90%
Coating multilayer antireflective film 350-650nm or according to the custom requirements
spectral curve

In addition, we have thousands of stock of K9 plano convex lens, biconvex lens, plano concave lens, biconvex lens, meniscus lens and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order.

For details, please consult:
