Roof prism

Dove prism

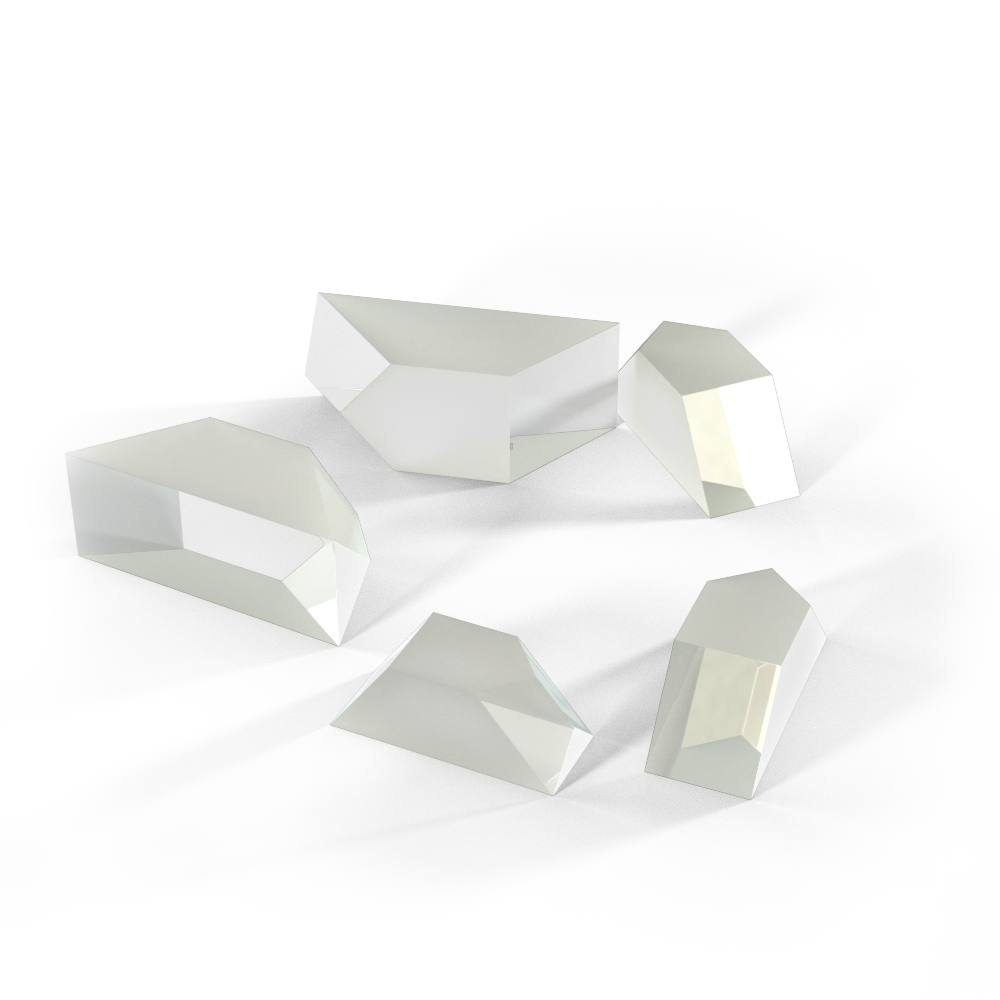

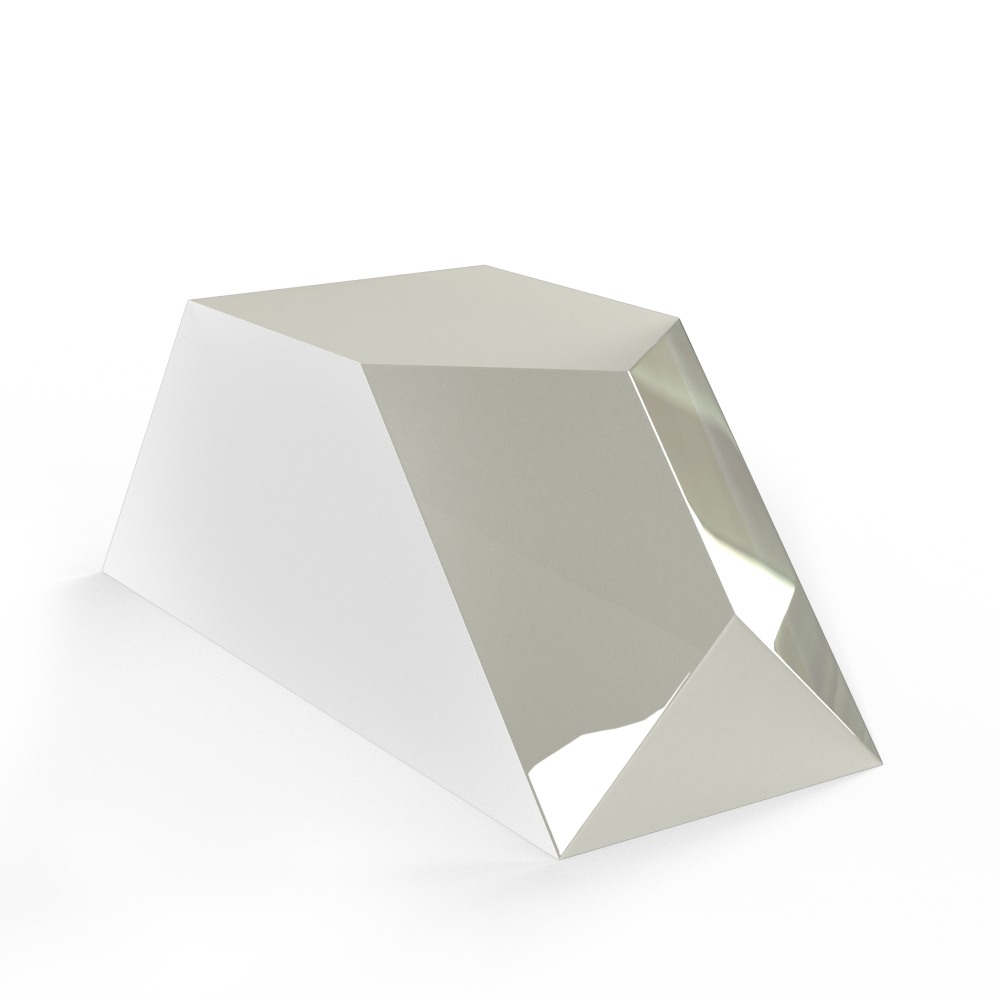

  • Two reflecting surfaces perpendicular to each other are called ridge surface, and the prism with ridge surface is called ridge prism.
  • The ridge prism is small in volume and can make the objective lens and eyepiece in a straight line, so it is often used for extremely compact binocular lens.
Technical parameters
Items Parameters
Material optical glass, H-K9L (N-BK7)
Radius of curvature ± 1mm - ± 50000mm ± 1%
Diameter 3mm-300mm ± 0.1mm
Center thickness tolerance ± 0.05mm (we can process to ± 0.01mm with high precision)
Center deviation 3′(we can process to 30 ″with high precision)
Surface accuracy λ/ 8 (high precision, we can process to 1 / 10λ)
Surface quality 40/20 (we can process to 10-5 with high precision)
Effective caliber ≥90%
spectral curve

In addition, We can customize according to your needs or drawings.
