K9 Right angle prism
PRODUCT CATEGORIES

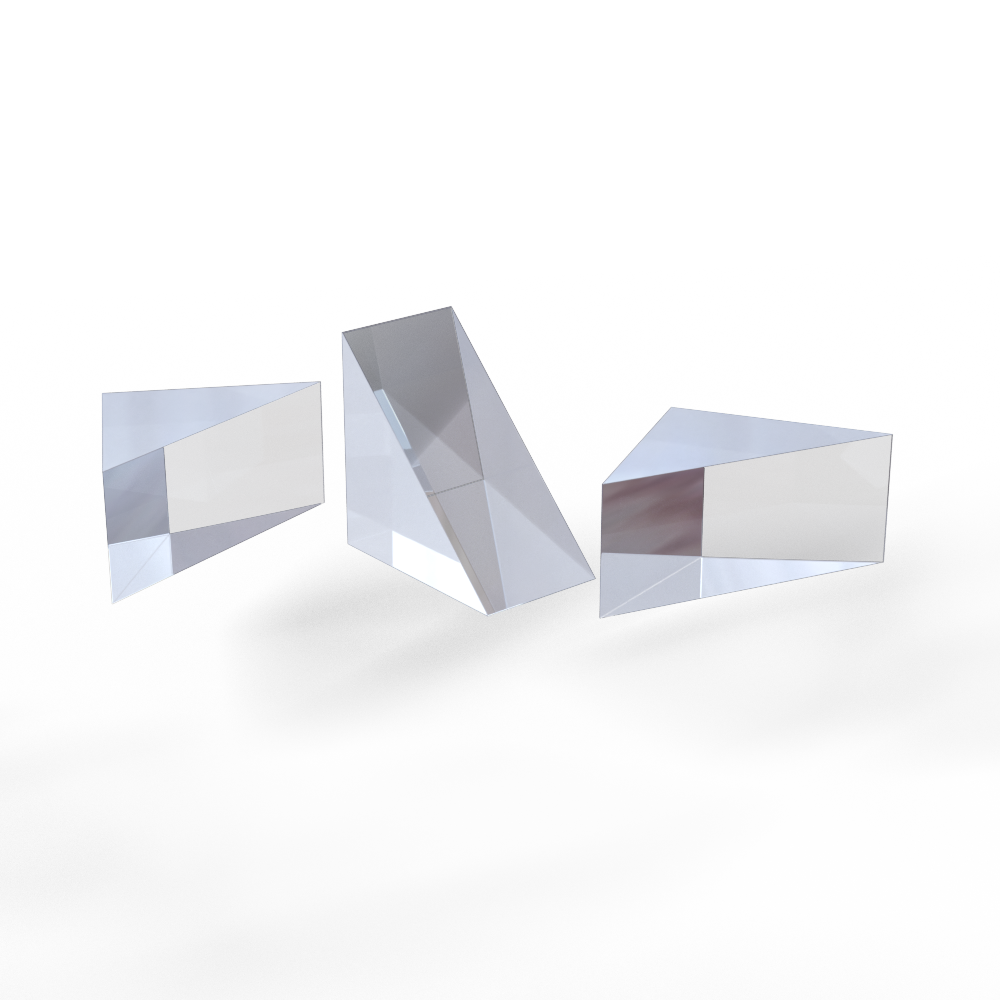

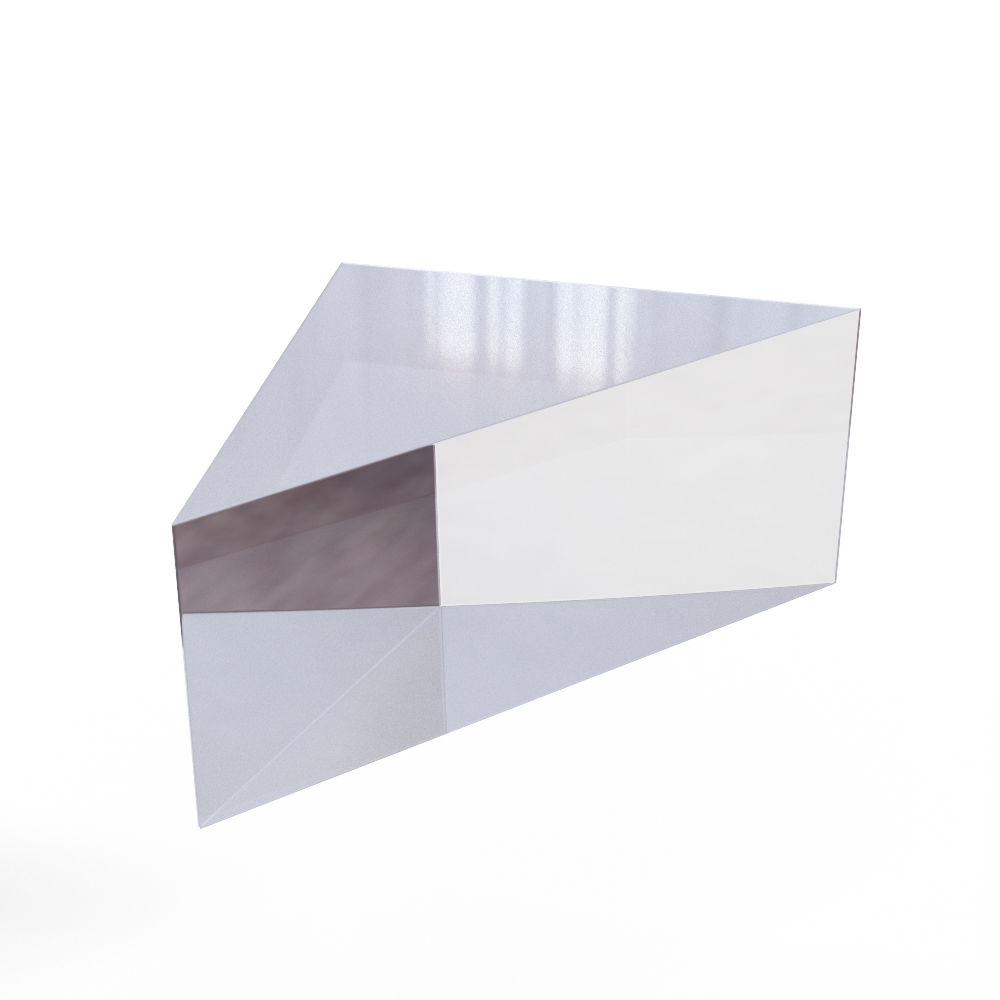

Right angle prisms are usually used to turn the optical path or deflect the image formed by the optical system by 90 °. According to the different orientation of the prism, the imaging can be consistent from left to right and reversed from top to bottom, which is different from left to right. Right angle prism can also be used in image combination, beam offset and other applications.
Technical parameters
| Items | Parameters |
|---|---|
| Material | K9; NBK7 |
| Radius of curvature | ± 1mm - ± 50000mm ± 1% |
| Diameter | 3mm-300mm ± 0.1mm |
| Center thickness tolerance | ± 0.05mm (we can process to ± 0.01mm with high precision) |
| Center deviation | 3′(we can process to 30 ″with high precision) |
| Surface accuracy | λ/ 8 (high precision, we can process to 1 / 10λ) |
| Surface quality | 40/20 (we can process to 10-5 with high precision) |
| Effective caliber | ≥90% |
| Coating | Inclined aluminum coating + right angle vis antireflection coating |
spectral curve
In addition, We can customize according to your needs or drawings.
