Protective Aluminum Coated Plano Concave Mirror

PRODUCT CATEGORIES

INOUIRY

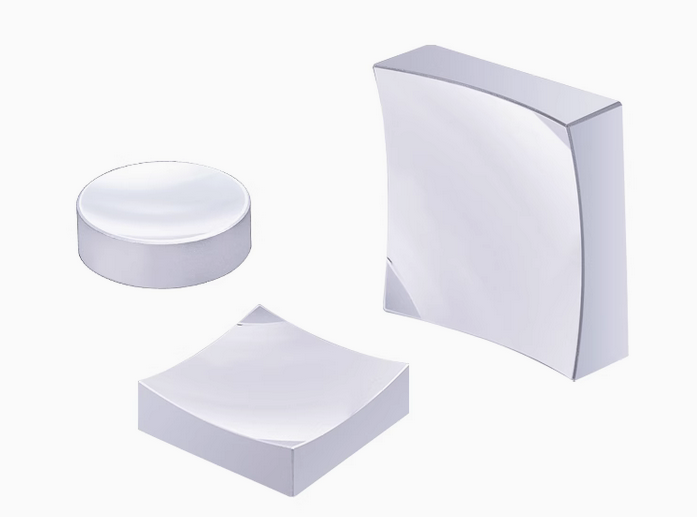

Protective aluminum coated plano-concave spherical reflector, the reflective surface is part of the spherical surface, parallel incident light can be reflected by the spherical surface to converge to a point, with a positive focal length. The focal length of the plano-concave spherical mirror is half of the radius of curvature of the spherical surface. Material is H-K9L glass.

We provide reflectors without coating and with reflective coating. The reflective coating options include ordinary reinforced aluminum coating, protective UV reflective aluminum coating, protective silver coating, protective gold coating, dielectric high reflective coating D01, dielectric high reflective coating D02, dielectric high reflective coating D03, and dielectric high reflective coating D04.

Technical parameters with UV Aluminum Plano Concave Mirrors

Material	H-K9L
Centering error	<3′
Thickness tolerance	±0.2 mm
Focal length tolerance	±2%
Dimension error	+0.0/-0.1 mm
Surface accuracy	λ/4@633 nm
Reflection surface quality	60/40
Face back	Fine grinding or inspection polishing
Chamfer	Protective chamfer 0.2~0.5mm×45°
Coating	Protective UV reflective aluminum film@400-1200nm

spectral curve with Protective Aluminum Coated Concave lens Mirror

Inventory Parameters With Protective Aluminum Glass Concave mirror

Diameter (mm)	Focal length (mm)	Radius (mm)	Edge thickness (mm)	Center thickness (mm)	Coated
12.5; 12.5*12.5	5-75	10-150	5.19-3.13	3	Protective aluminum coated@400-1200nm
25; 25*25	20-500	40-1000	8-6	6	Protective aluminum coated@400-1200nm
50; 50*50	50-500	100-1000	12.18-9.31	9	Protective aluminum coated@400-1200nm
75	56.25-500	112.5-1000	18.4-9.7	9	Protective aluminum coated@400-1200nm
