Menscus cylindrical lens
PRODUCT CATEGORIES

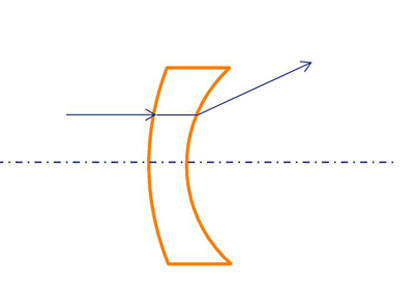

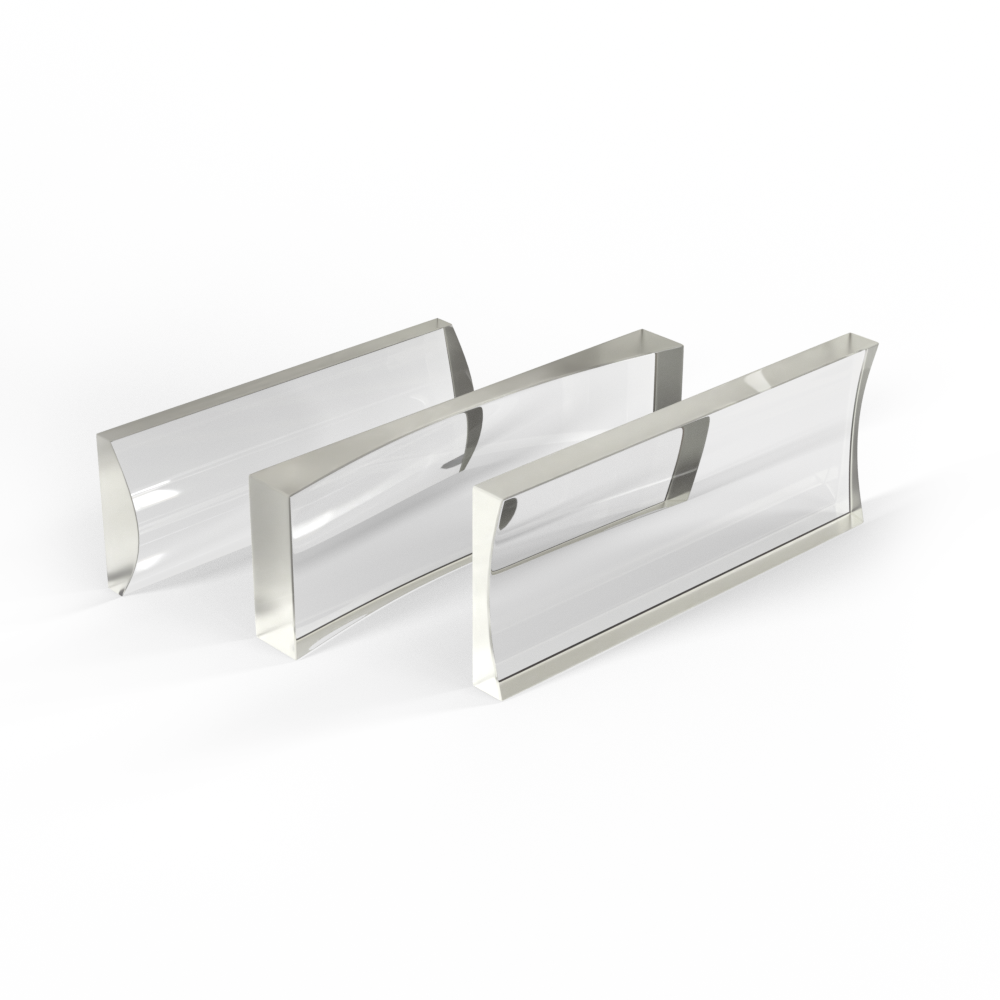

- One side of meniscus cylindrical lens is concave and the other side is convex. Its function is to make the beam converge or diverge to a plane, and the beam does not work in the vertical plane. Meniscus cylindrical mirror can convert transmitted plane wave into cylindrical wave or cylindrical wave into plane wave or spherical wave. This kind of lens can correct visual aberration.
Moreover, the edge thickness is larger than the center thickness, which can limit the reduction of spherical aberration. It is often used to combine with another lens to form an optical system, so as to reduce the numerical aperture. It is a common element in beam expansion applications.
Technical parameters
| Items | Parameters |
|---|---|
| Material | optical glass, H-K9L (N-BK7) |
| Radius of curvature | ± 1mm - ± 50000mm ± 1% |
| Diameter | 3mm-300mm ± 0.1mm |
| Center thickness tolerance | ± 0.05mm (we can process to ± 0.01mm with high precision) |
| Center deviation | 3′(we can process to 30 ″with high precision) |
| Surface accuracy | λ/ 8 (high precision, we can process to 1 / 10λ) |
| Surface quality | 40/20 (we can process to 10-5 with high precision) |
| Effective caliber | ≥90% |
| Coating | multilayer antireflective film A:350-650nm B:650-1050nm C:1050-1580nm |
spectral curve

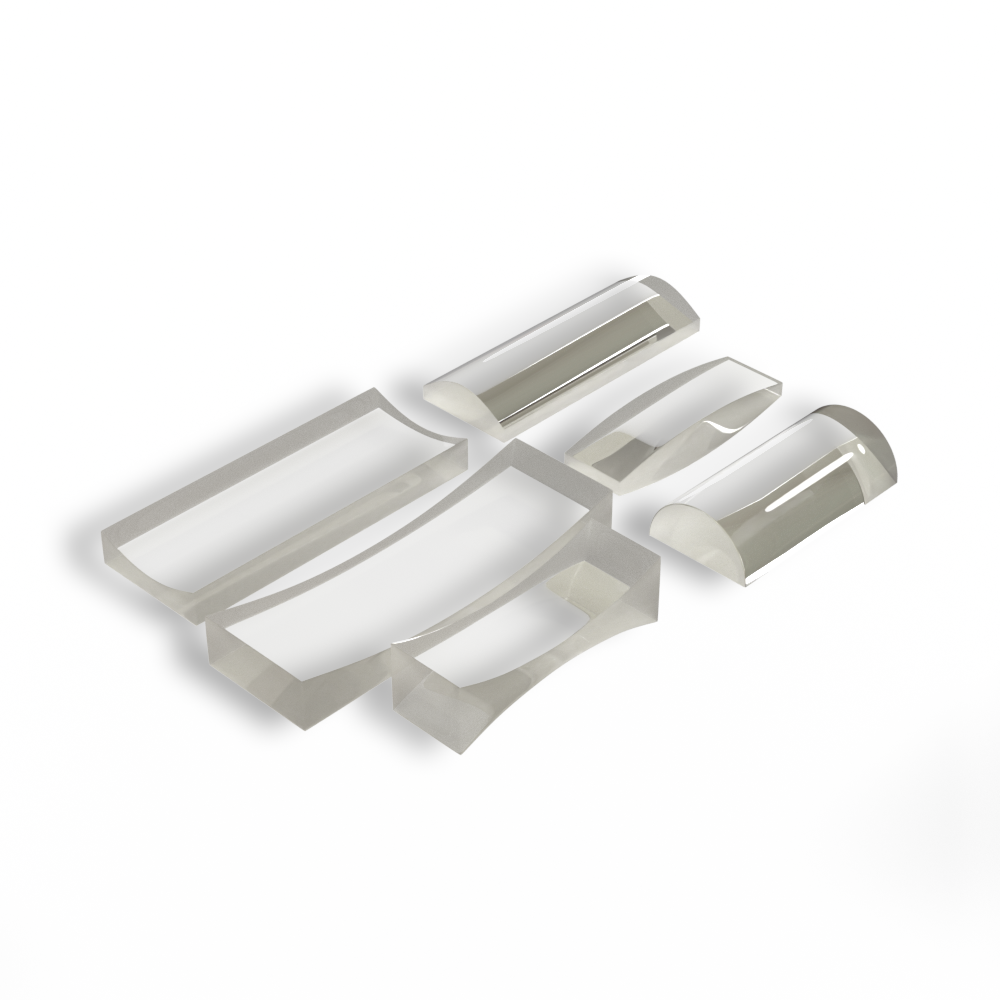

In addition, we have thousands of stock of K9 Plano convex cylindrical lens, Biconvex cylindrical lens, concave cylindrical lens, Meniscus cylindrical lens, and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order.
