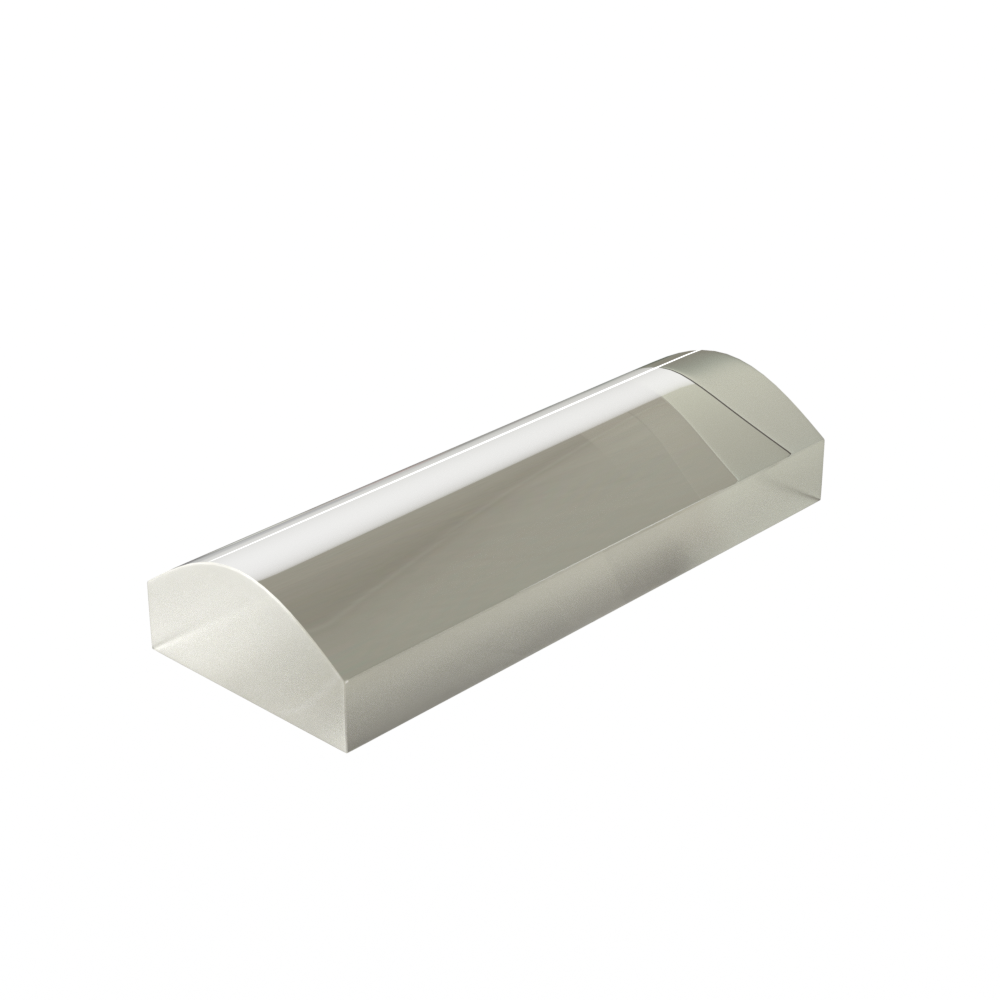

K9 Plano convex cylindrical lens


  • K9 Plano convex cylindrical lens can turn the light emitted by a light emitting point into a line. Surface light can be generated by placing two Plano convex lenses perpendicular to each other or in the intersecting direction. The total focal length is the sum of each focal length.
  • K9 plano convex cylindrical mirror can see the transmittance of near infrared (350-2000nm).
  • The plano convex cylindrical lens forms a linear image, which is used to control the size of only one direction of the beam. The material of this lens is BK7, so it is not suitable for ultraviolet wavelength. Compared with spherical lens, the manufacturing of plano convex cylindrical lens is more difficult. Materials (texture, bubble, impurity, uniformity) shall be selected reasonably, and factors affecting scattering (scratch, dent, gloss) shall be paid attention to, and high-quality grinding shall be carried out. It can be divided into uncoated and visible band coated antireflection multilayer lenses. The design wavelength of the lens is 546.1 nm (E-line of green mercury line). Since the focal length changes with the wavelength, when it is used for other wavelengths, the focal length also changes.

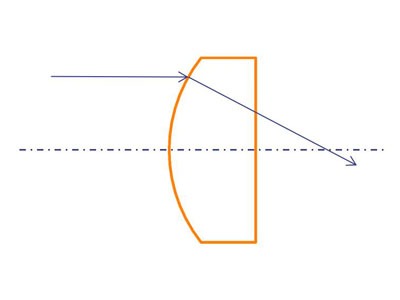

  • Plano convex cylindrical lens is a lens with the curvature of convex lens in the vertical direction and no curvature in the horizontal direction. It is used in the experiment of condensing laser into thin line shape, or in fluid measurement.
Technical parameters
Items Parameters
Material optical glass, H-K9L (N-BK7)
Radius of curvature ± 1mm - ± 50000mm ± 1%

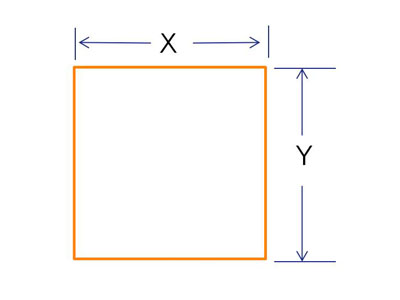

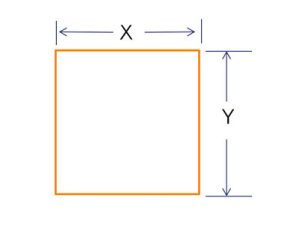

Diameter 3mm-300mm ± 0.1mm
Center thickness tolerance ± 0.05mm (we can process to ± 0.01mm with high precision)
Center deviation 3′(we can process to 30 ″with high precision)
Surface accuracy λ/ 8 (high precision, we can process to 1 / 10λ)
Surface quality 40/20 (we can process to 10-5 with high precision)
Effective caliber ≥90%
Coating multilayer antireflective film A:350-650nm B:650-1050nm C:1050-1580nm
spectral curve

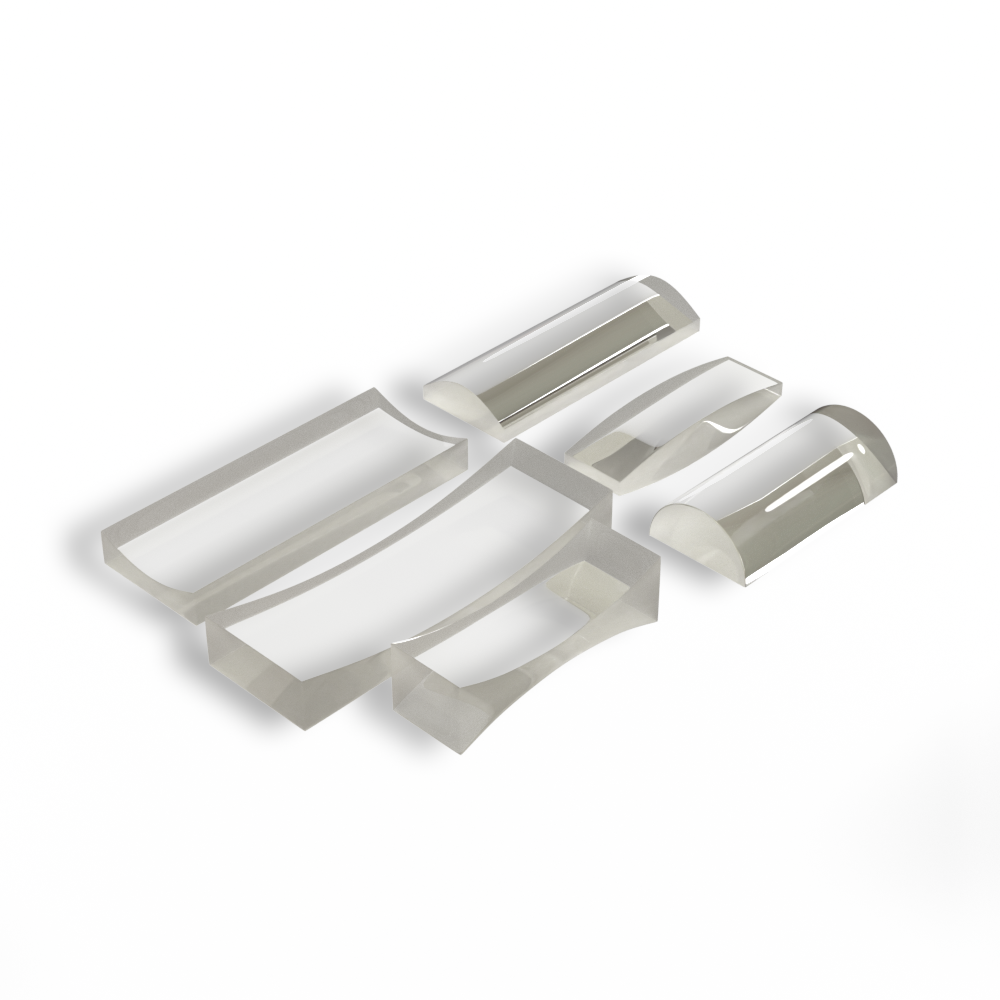

In addition, we have thousands of stock of K9 plano convex lens, biconvex lens, plano concave lens, biconvex lens, meniscus lens and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order.

For details, please consult:
