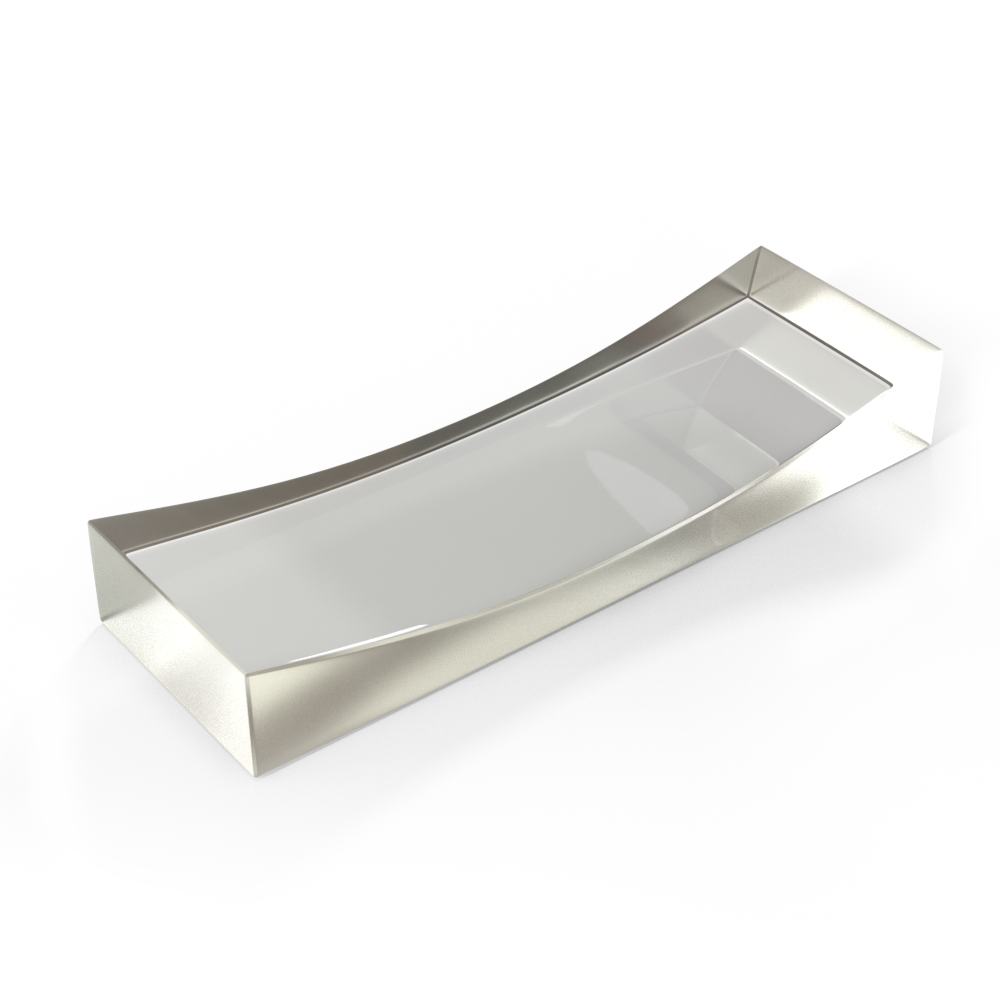

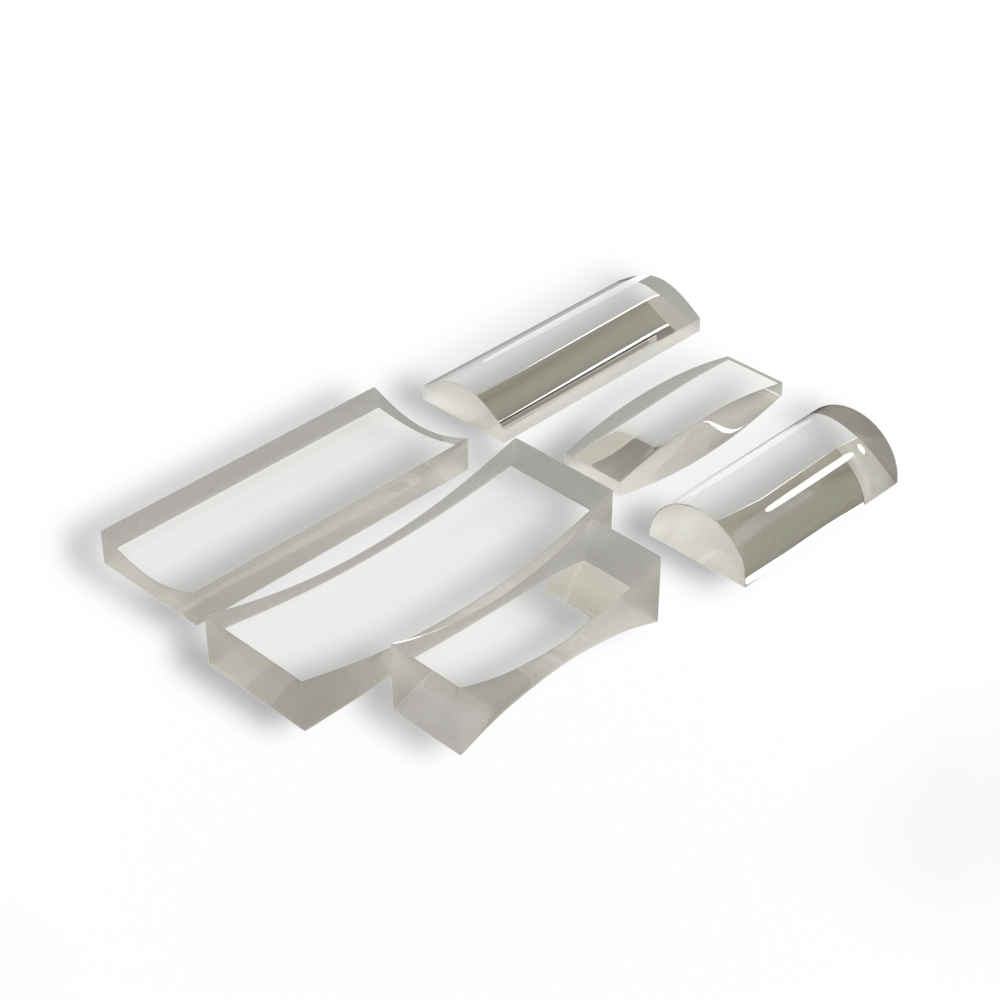

K9 Plano concave cylindrical lens

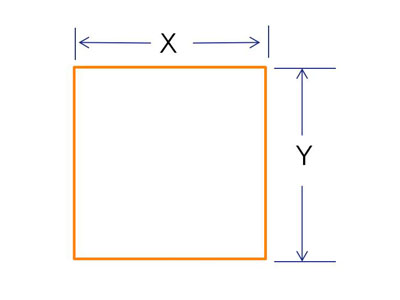

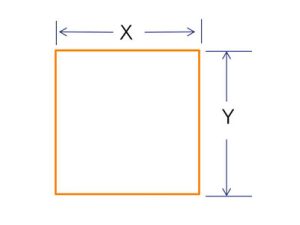

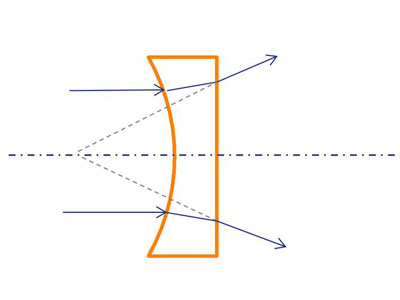

  • K9 plano concave cylindrical lens only diverges in one direction and has no divergence function in the other direction
  • K9 plano concave cylindrical lens can see the transmittance of near infrared (350-2000nm).
  • Cylindrical plano concave lens is a lens with concave curvature in the vertical direction and no curvature in the horizontal direction. It is combined with cylindrical flat convex lens to shape the elliptical beam of semiconductor laser into a circle, etc
Technical parameters
Items Parameters
Material optical glass, H-K9L (N-BK7)
Radius of curvature ± 1mm - ± 50000mm ± 1%
Diameter 3mm-300mm ± 0.1mm
Center thickness tolerance ± 0.05mm (we can process to ± 0.01mm with high precision)
Center deviation 3′(we can process to 30 ″with high precision)
Surface accuracy λ/ 8 (high precision, we can process to 1 / 10λ)
Surface quality 40/20 (we can process to 10-5 with high precision)
Effective caliber ≥90%
Coating multilayer antireflective film A:350-650nm B:650-1050nm C:1050-1580nm
spectral curve

In addition, we have thousands of stock of K9 Plano convex cylindrical lens, Biconvex cylindrical lens, concave cylindrical lens, Meniscus cylindrical lens, and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order.
