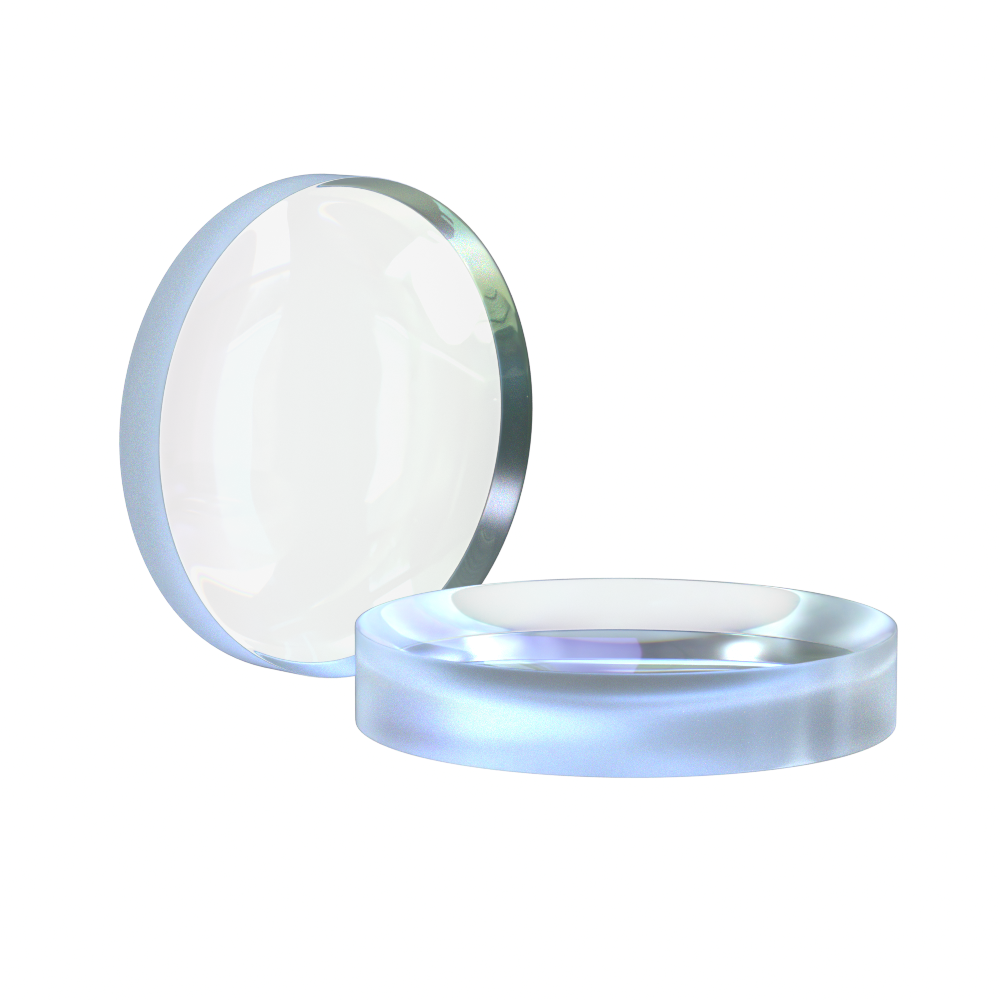

K9 Biconcave lens

Fused quartz Biconcave cylindrical lens
  • Biconcave lens is similar to plano concave lens. The focal length is negative, but the light incident in parallel diverges outward. The curvature radii of the two sides of double concave lens are equal. It is generally used for beam expansion and projection.
  • K9 biconcave spherical lens has good transmittance in near infrared (350-2000nm).

  • H-K9L(N-BK7) is an optical glass commonly used in the preparation of optical elements.
  • These uncoated biconcave lenses are prepared using H-K9L(N-BK7) conforming to ROHS standard. The collimated beam can converge on the rear focus, or the point light source can be changed into a collimated beam.
Technical parameters
Items Parameters
Material optical glass, H-K9L (N-BK7)
Radius of curvature ± 1mm - ± 50000mm ± 1%
Diameter 3mm-300mm ± 0.1mm
Center thickness tolerance ± 0.05mm (we can process to ± 0.01mm with high precision)
Center deviation 3′(we can process to 30 ″with high precision)
Surface accuracy λ/ 8 (high precision, we can process to 1 / 10λ)
Surface quality 40/20 (we can process to 10-5 with high precision)
Effective caliber ≥90%
Coating multilayer antireflective film A:350-650nm B:650-1050nm C:1050-1580nm
spectral curve

In addition, we have thousands of stock of K9 plano convex lens, biconvex lens, plano concave lens, biconvex lens, meniscus lens and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order.
