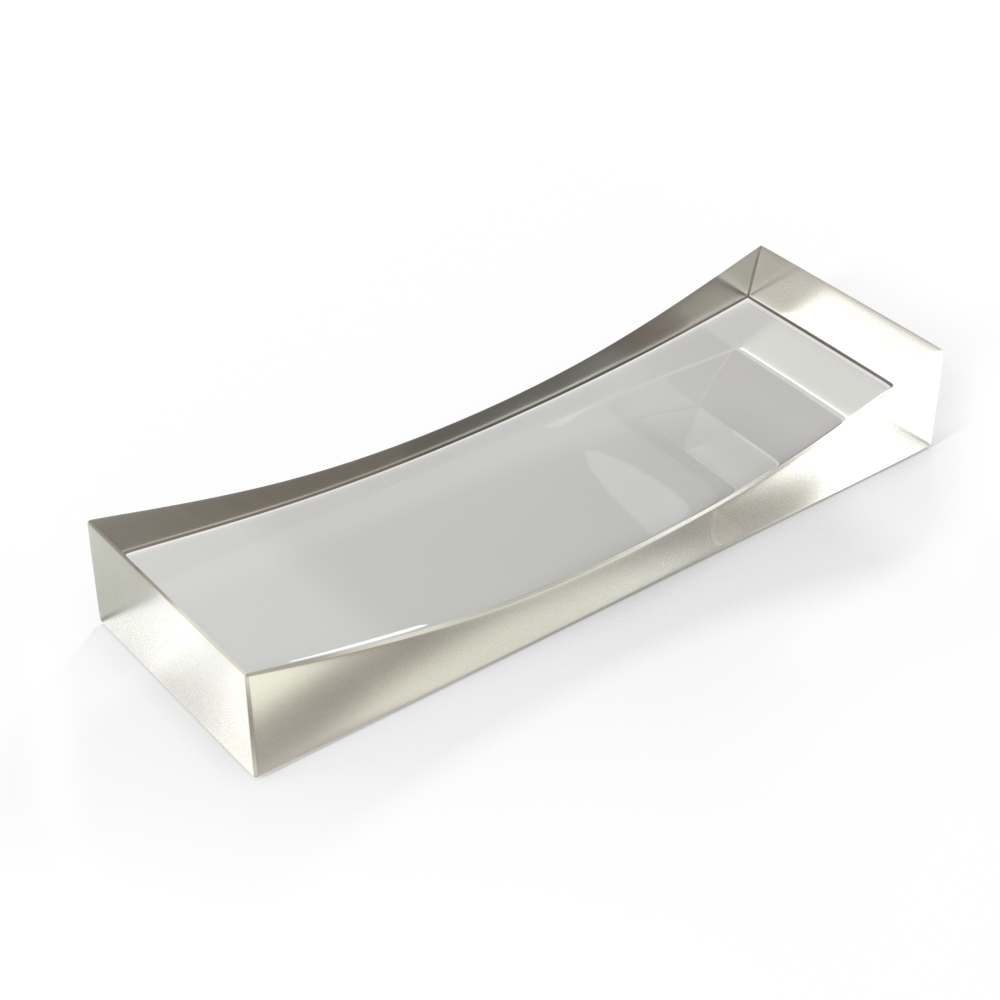

Fused quartz polano concave cylindrical lens
PRODUCT CATEGORIES

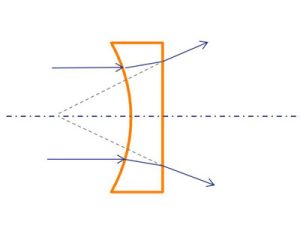

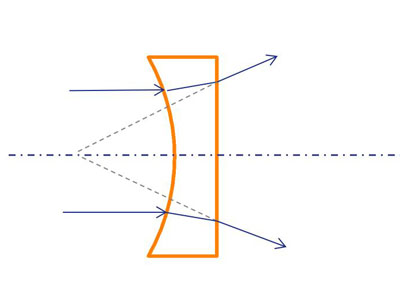

- Plano concave cylindrical lens are usually used to convert collimated laser sources into linear light sources. Plano concave cylindrical lens are often used in beam expansion applications. Compared with spherical lenses, cylindrical lenses are more difficult to manufacture. The commonly used materials are UV fused quartz and h-k9l.
Technical parameters
| Items | Parameters |
|---|---|
| Material | UV fused quartz (JGS1, Corning 7980), infrared fused quartz (jgs3, Corning 7978) |
| Radius of curvature | ± 1mm - ± 50000mm ± 1% |

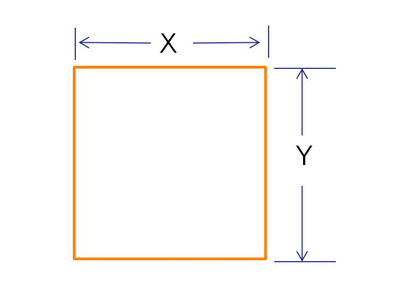

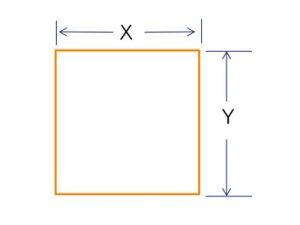

| Diameter | 3mm-300mm ± 0.1mm |
| Center thickness tolerance | ± 0.05mm (we can process to ± 0.01mm with high precision) |
| Center deviation | 3′(we can process to 30 ″with high precision) |
| Surface accuracy | λ/ 8 (high precision, we can process to 1 / 10λ) |
| Surface quality | 40/20 (we can process to 10-5 with high precision) |
| Effective caliber | ≥90% |
| Coating | UV AR Coating 250-400nm or according to the custom requirements |

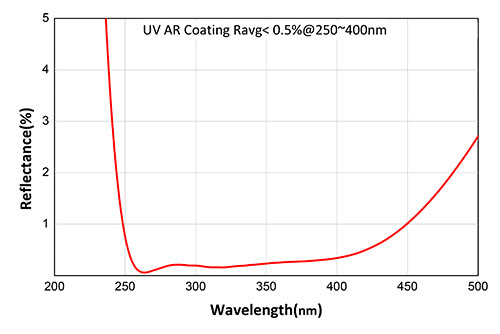

spectral curve

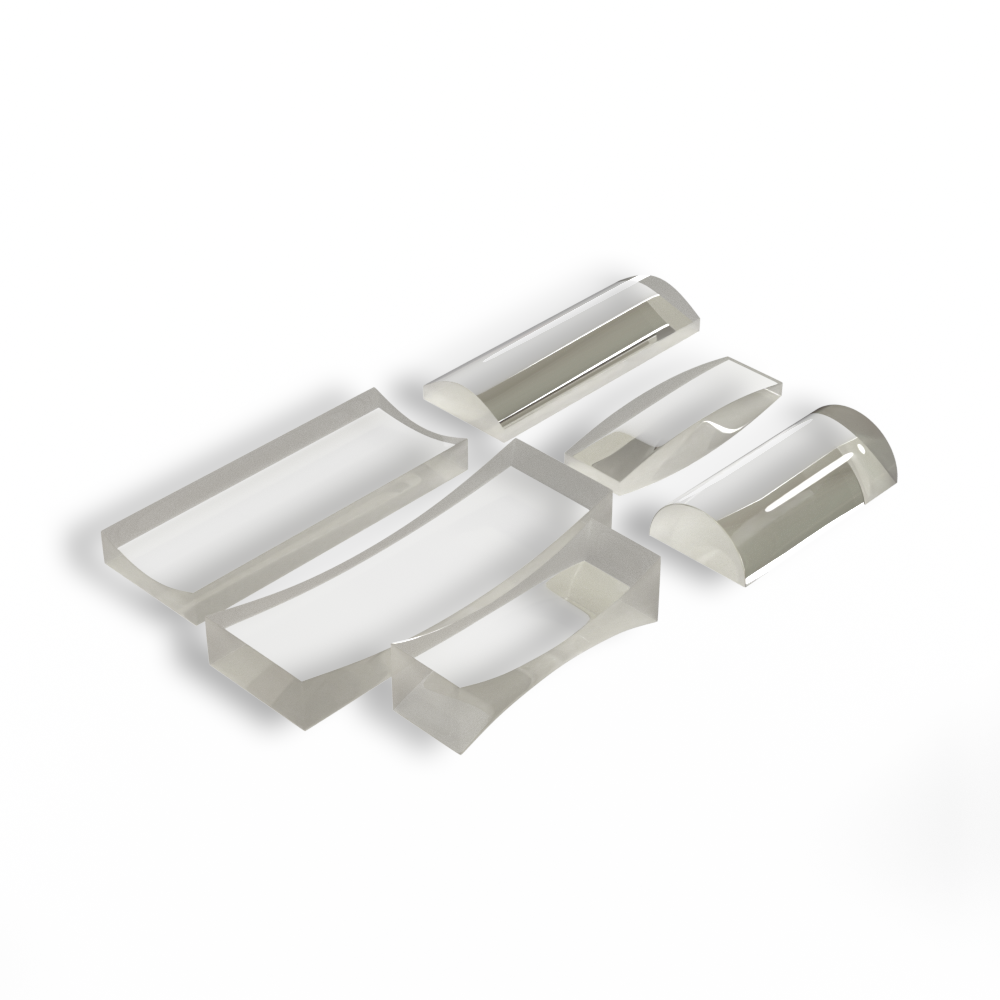

In addition, we have thousands of stock of K9 Plano convex cylindrical lens, Biconvex cylindrical lens, concave cylindrical lens, Meniscus cylindrical lens, and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order.
