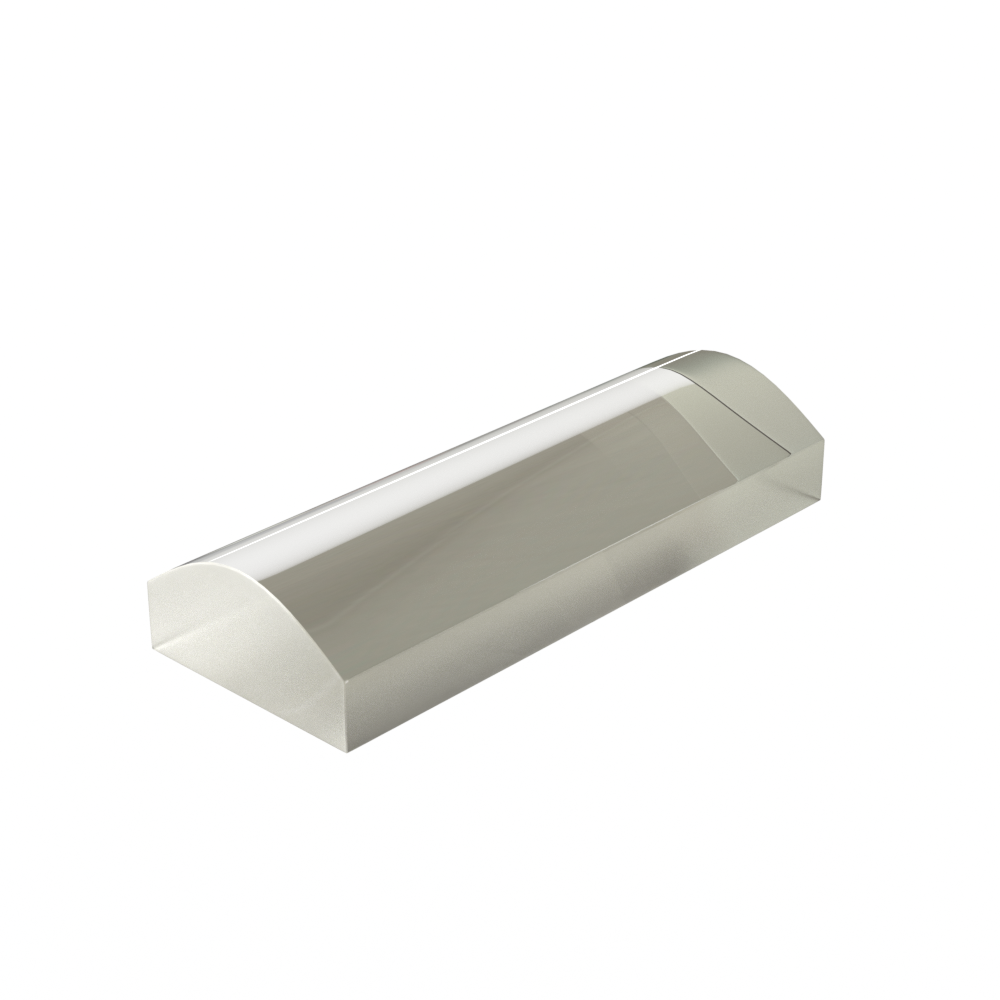

Fused quartz Plano convex cylindrical lens


  • The quartz plano convex cylindrical lens can turn the light from a luminous point into a line. The surface light can be generated by placing two plano convex lenses perpendicular to each other or in the intersecting direction. The total focal length is the sum of each focal length.
  • Fused silica plano convex cylindrical lens has high transmittance from ultraviolet to near infrared (190nm-2200nm).
  • The typical application of Plano convex cylindrical lens is to use a pair of cylindrical lenses to shape the deformed beam. A pair of flat convex cylindrical lenses can be used to collimate and round the output of laser diodes. Another possible application is to focus the divergent beam onto the detector array with a single cylindrical lens. In order to minimize the spherical aberration, when the collimated beam converges into a line, the collimated light should be incident from the curved surface of the lens, while when the collimated light source is quasi linear, the linear light source should be incident on the plane of the lens.

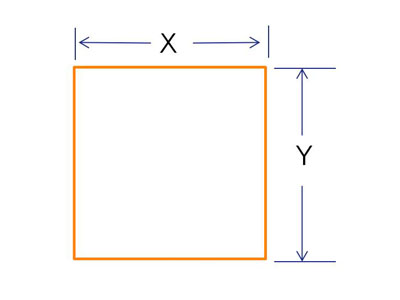

Technical parameters
Items Parameters
Material UV fused quartz (JGS1, Corning 7980), infrared fused quartz (jgs3, Corning 7978)
Radius of curvature ± 1mm - ± 50000mm ± 1%
Diameter 3mm-300mm ± 0.1mm
Center thickness tolerance ± 0.05mm (we can process to ± 0.01mm with high precision)
Center deviation 3′(we can process to 30 ″with high precision)
Surface accuracy λ/ 8 (high precision, we can process to 1 / 10λ)
Surface quality 40/20 (we can process to 10-5 with high precision)
Effective caliber ≥90%
Coating UV AR Coating 250-400nm or according to the custom requirements
spectral curve

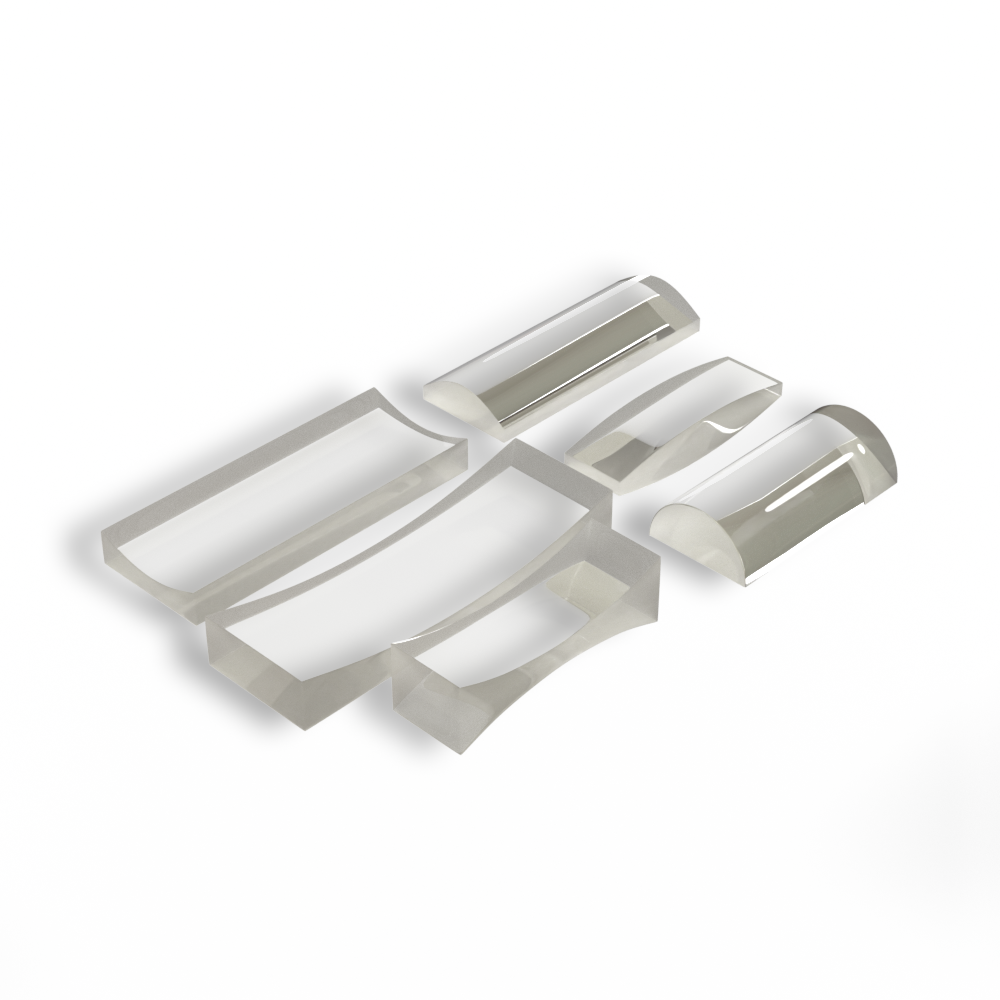

In addition, we have thousands of stock of K9 plano convex lens, biconvex lens, plano concave lens, biconvex lens, meniscus lens and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order.

For details, please consult:
