Performance Analysis of Dowell Prism

Dowell prism has a very unique performance – if you observe through the prism and rotate around the longitudinal axis, the resulting image rotation angle will be twice as large as your rotation angle. Good performance can be achieved using a Dow prism with parallel light.

The upper surface of the Dowell prism is a frosted surface, while the long length (indicated by dimension B) has an unopened chamfer dimension.

Dawei prisms are non coated, antireflective coated diagonal surfaces, or aluminum plated diagonal surfaces. The aluminum coated version of the Dow prism uses a protective aluminum film and black paint on the diagonal surfaces, making it ideal for transferring reflections. U-bend incident laser beam is available.

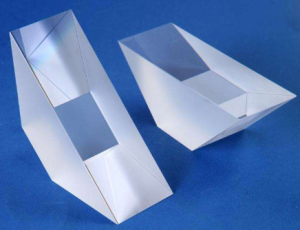

Dowell Prism


Hanzhong Brisun Optics Co., Ltd. Is the high precision optical element manufacturer provides customized production of Various optical lenses, including spherical lens, cylindrical lens, optical window, mirror, prism, filter, metal base mirror and other high-precision optical elements. The base materials include various optical glass, fused quartz, calcium fluoride (CaF2), zinc selenide (ZnSe), germanium (GE), silicon (SI), sapphire, metal and other materials. And provide antireflective film, high reflection film, spectroscopic film, metal film and other optical coatings.

Welcome to OEM and Purchasing!
