Introduction and processing capability of Dove prism

Dove prism is a kind of reflection prism for reversing images, which is used for rotating imaging in various optical-mechanical systems. It is mainly used in measuring instruments and optical equipment. Hanzhong Borisun Optics Co., Ltd. can make ingredients, processing and coating according to your size requirements. Please contact our sales team for details.

180 ° image rotation;
Left-handed image;
Used for image rotation or transfer reflection;
Processing parameters of Dowell prism:
Material: quartz, K9 and other optical glass
Outline tolerance:+/-0.05mm
Angle tolerance: ± 10 seconds
Face type: λ/ 4@632.8nm
Finish: 20/10
Effective aperture:>90%
Coating: antireflective film

After precision machining, there is almost no deviation of optical axis;

In order to make the aperture of the image (A × B) Complete and precise design without defects. Processing length (D);

In addition, it has surface accuracy for laser experiments, λ/4.

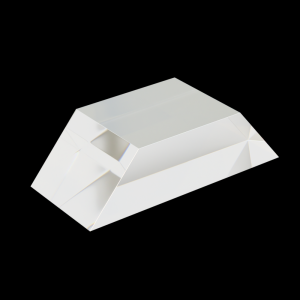

Dove Prism2 black


Hanzhong Brisun Optics Co., Ltd. Is the high precision optical element manufacturer provides customized production of Various optical lenses, including spherical lens, cylindrical lens, optical window, mirror, prism, filter, metal base mirror and other high-precision optical elements. The base materials include various optical glass, fused quartz, calcium fluoride (CaF2), zinc selenide (ZnSe), germanium (GE), silicon (SI), sapphire, metal and other materials. And provide antireflective film, high reflection film, spectroscopic film, metal film and other optical coatings.

Welcome to OEM and Purchasing!
