K9 Wedge prism
PRODUCT CATEGORIES
INOUIRY

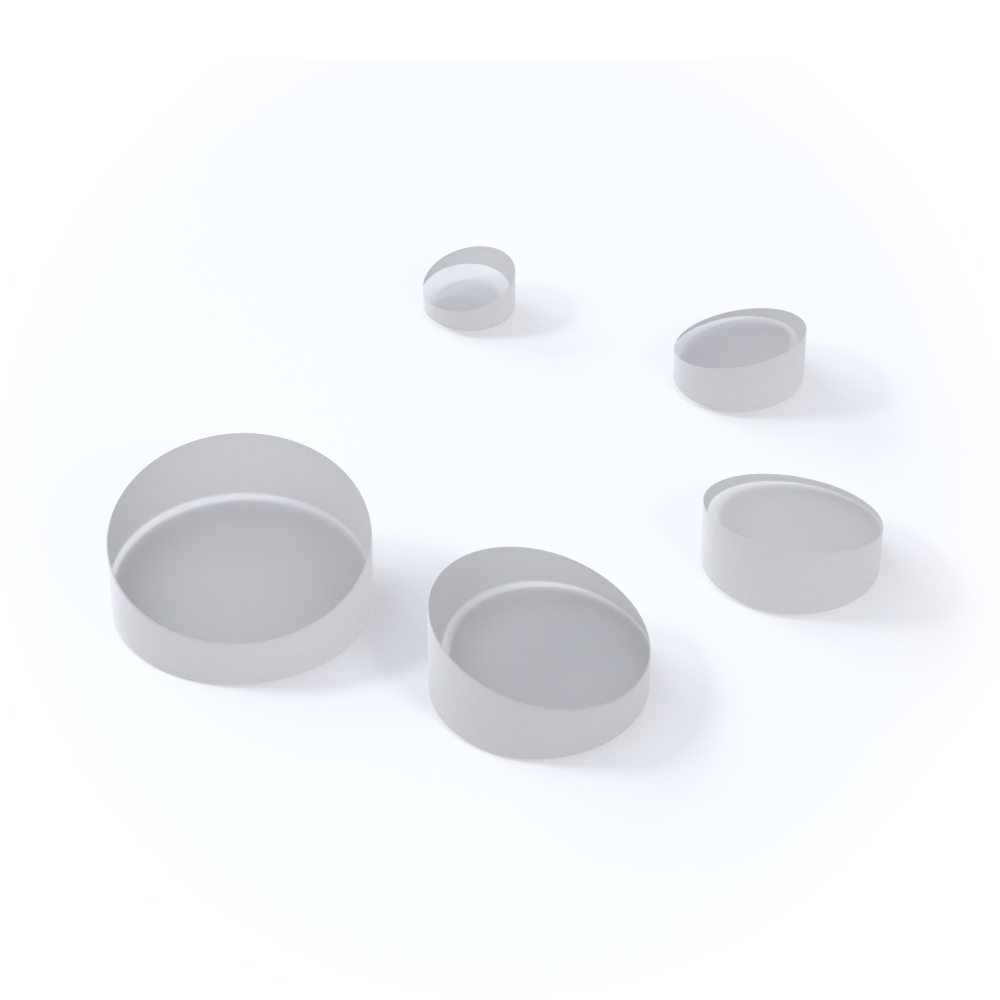

wedge prism (also known as wedge angle prism) is an optical prism with an inclined plane, which is mainly used in the optical field for beam control offset. The inclination of both sides of the wedge angle prism is relatively small. It can make the optical path deflect to the thicker side. If only one wedge prism is used, it can offset the incident optical path at a certain angle. When the two wedge prisms are combined, they can be used as a deformation prism It is mainly used to correct the laser beam.
- In the field of optics, wedge prism is an ideal optical path adjustment device. Two rotatable prisms can adjust the direction of the outgoing beam within a certain range (10 °).
Wedge prism produced by Borisun Optics is made of ROHS standard optical glass and coated with imported vacuum coating equipment. Borisun Optics provides prism processing of various shapes and sizes and customized anti reflection coating services.
Technical parameters
| Items | Parameters |
|---|---|
| Material | optical glass, H-K9L (N-BK7) |
| Diameter | 3mm-300mm ± 0.1mm |
| Center thickness tolerance | ± 0.05mm (we can process to ± 0.01mm with high precision) |
| Surface accuracy | λ/ 8 (high precision, we can process to 1 / 10λ) |
| Surface quality | 40/20 (we can process to 10-5 with high precision) |
| Effective caliber | ≥90% |
| Coating | multilayer antireflective film A:350-650nm B:650-1050nm |

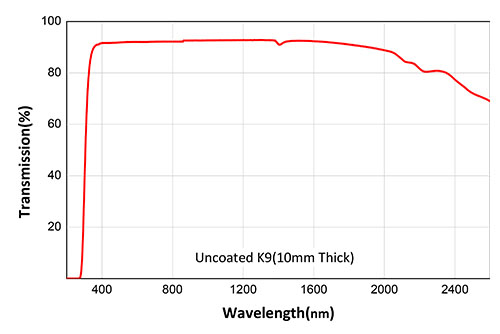

spectral curve
Inventory Parameters
| Diameter (ØD) | Thin edge thickness (mm) | Beam Deflection angle @633nm | Angle | Diopter | Coated |
|---|---|---|---|---|---|
| 25 | 3 | 0.5° | 0°58′ | 0.87 | No; VIS; NIR; SWIR Coated |
| 25 | 3 | 1° | 1°56′ | 1.74 | No; VIS; NIR; SWIR Coated |
| 25 | 3 | 2° | 3°52′ | 3.49 | No; VIS; NIR; SWIR Coated |
| 25 | 3 | 4° | 7°41′ | 7 | No; VIS; NIR; SWIR Coated |
| 25 | 3 | 6° | 11°21′ | 10.51 | No; VIS; NIR; SWIR Coated |
| 25 | 3 | 8° | 14°51′ | 14.05 | No; VIS; NIR; SWIR Coated |
| 25 | 3 | 10° | 18°08′ | 17.63 | No; VIS; NIR; SWIR Coated |
If you need to order stock or custom wedge prism lenses, please contact our sales team:
info@borisuns.com
