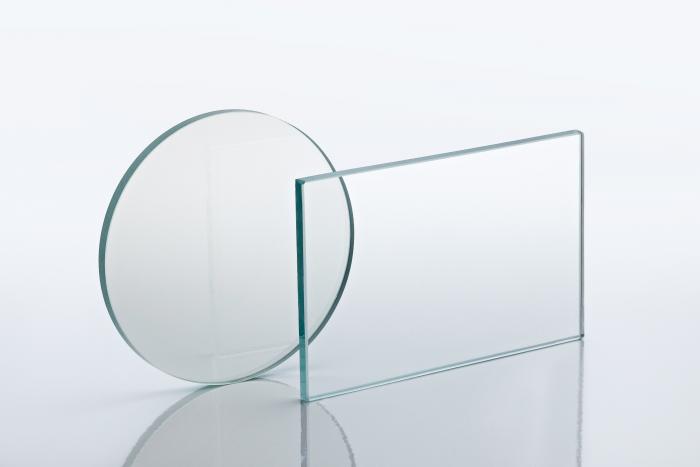

UV fused quartz aluminized dot beam splitter
PRODUCT CATEGORIES
- The aluminized lattice beam splitter has a wide wavelength range and is insensitive to the incident angle. The beamsplitter coating is light in weight, moderate in price and relatively easy to make. The reflected light part of the aluminum plated dot matrix light splitting plate provided by United light technology is the reflection of the aluminum film dot matrix, and the transmitted light is transmitted from the quartz substrate in the uncoated area. The lattice consists of 0.1mm x 0.1mm aluminum plated small blocks.
Technical parameters
| Items | Parameters |
|---|---|
| Material | JGS1 |
| Surface quality | 80-50 |
| Effective aperture | 85% |
| Dimensional error | ± 0.2mm |
| Bevel | 0.2x45 ° |
| Coating | Polka Dot |
| Spectral ratio(R/T) | ±5%@250-2000nm |
spectral curve
In addition, We can customize the optical beam splitter according to customer requirements or drawings.
For details, please consult:
