The reflective surface of a plane mirror is a flat surface. It is a type of mirror that can be used in a variety of applications, including beam deflection, interferometry, or as an optical component in an imaging system.
The important parameters of a plane mirror are: surface shape and reflectivity. High surface accuracy can reduce the amount of light loss caused by dispersion.
| Material | Fused Silica |
|---|---|
| Thickness tolerance | ±0.2mm |
| Surface quality | 10/5 |
| Clear aperture | >90% |
| Surface Accuracy | <λ/10@632.8nm per 25mm (before coating) |
| Angle Protective | <0.5mmx45° |
| Differential Parallel Lines | <3′ |
| Coating | Reinforced aluminum film, protective UV reflective aluminum film, protective silver film, protective gold film, dielectric high reflective film @350-400nm; 400-800nm; 750-1250nm; 1200-1800nm |

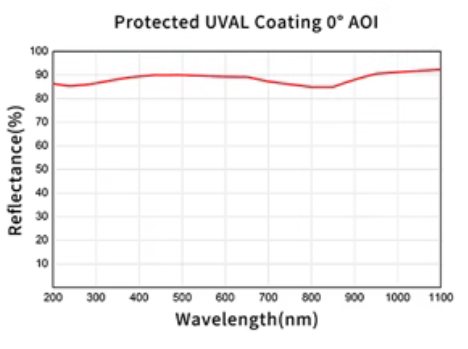

Aluminum-coated Flat Mirror
Silvered Plane Mirror
Gold-coated Plane Mirror
Dielectric-coated Plane Mirror
Plane Mirrors in Stock Models
| Diameter (mm) | Thickness (mm) |
|---|---|
| 5 | 2 |
| 6.3 | 2 |
| 10 | 2 |
| 12.5 | 6 |
| 12.7 | 6 |
| 20 | 6 |
| 25 | 6 |
| 30 | 10 |
| 38 | 10 |
| 50 | 10 |
| 12.5*12.5 | 6 |
| 25*25 | 6 |
| 50*50 | 10 |
The above models are available with no coating, gold-coated, sliver-coated, aluminum-coated, and dielectric-coated for available, and can be shipped immediately.
If you need samples, bulk orders or customization, please contact our sales team: info@borisuns.com
