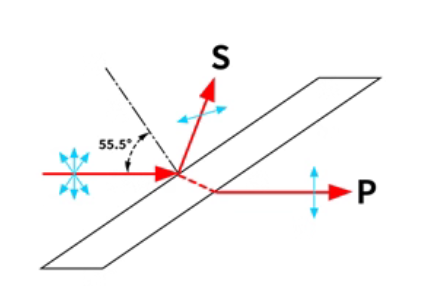

The fused silica Brewster window utilizes the total reflection property of the material. When the incident light is incident at a specific angle of incidence (called the Brewster angle of the material), the S polarization component of the incident light is partially reflected, while the P component is almost completely transmitted.
Zero reflection loss for P light;
About 20% reflection for S light;
High damage threshold;
Mostly used in laser cavities.
Technical parameters with Brewster Quartz Window
| Dimensional tolerance | +0/-0.1mm |
|---|---|
| Thickness tolerance | ±0.2mm |
| Surface quality | 20/10 |
| Clear aperture | >90% |
| Surface accuracy | λ/10@633nm |
| Chamfer | Protection<0.5mmx45° |
| Parallel tolerance | ＜5″ |
| Brewster Point | 55°34′@633nm |
| Damage threshold | >20J/cm²，20ns，20Hz，1064nm |
spectral curve with quartz brester Window
Inventory Parameters with Quartz Brester Window
| Short axis (mm) | Long axis (mm) | Thickness (mm) | Coating |
|---|---|---|---|
| 10 | 17.69 | 2 | No coated |
| 12.5 | 22.11 | 2 | No coated |
| 16 | 28.23 | 2 | No coated |
| 20 | 35.37 | 2 | No coated |
| 25 | 44.21 | 2 | No coated |
If you need custom Optical Quartz Brester Window or bulk orders, please contact our sales team: info@borisuns.com
We will serve you immediately！
