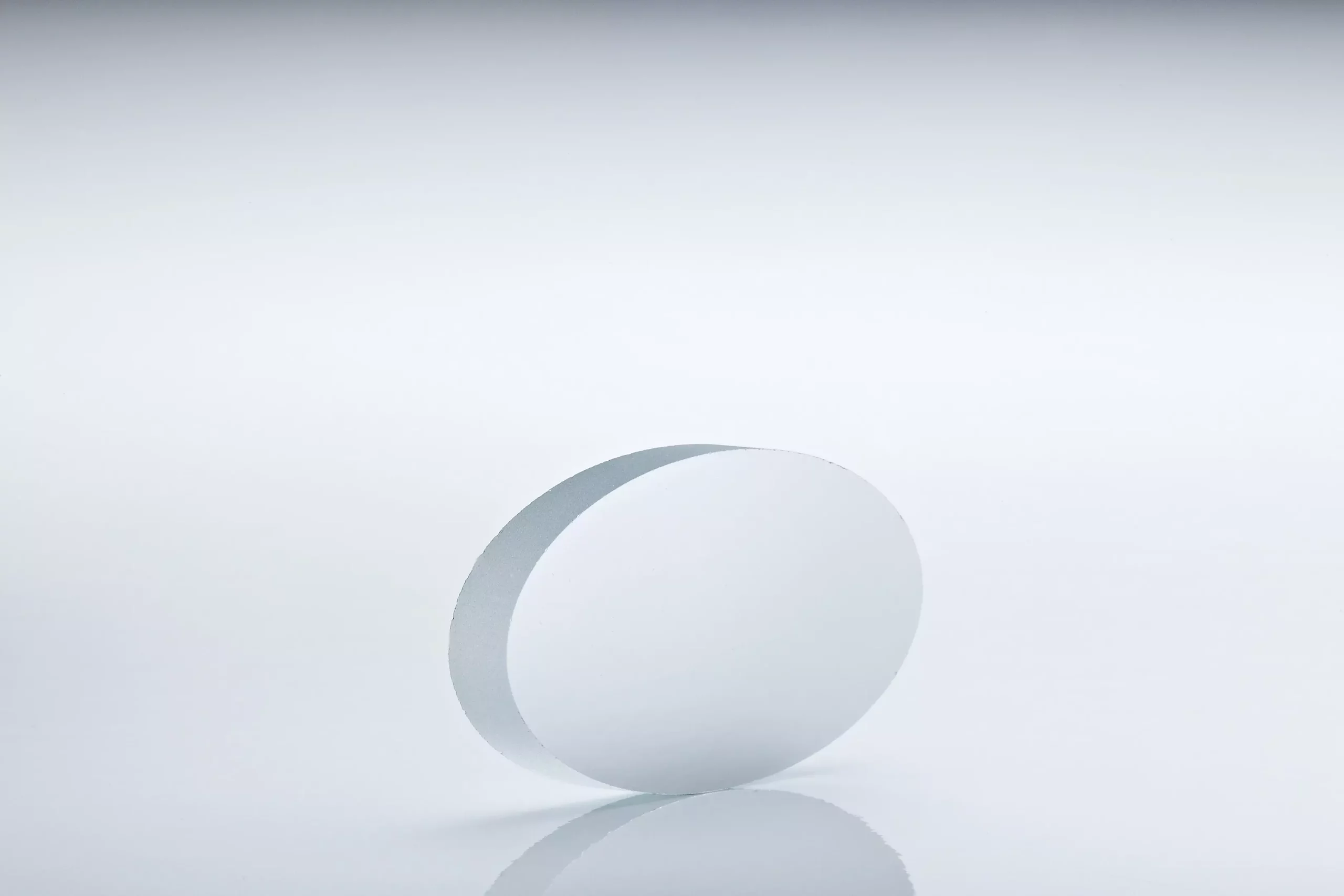

Elliptical beam splitter

  • The elliptical beam splitter can be conveniently and accurately installed in various circular lens barrels, which can save space and produce circular light spots.
  • Borisun optics supports various types of oval spectroscopic flat sheets with customized front surface plated with spectroscopic film and rear surface plated with vis, NIR and SWIR antireflective film.
Technical parameters
Items Parameters
Material optical glass, H-K9L (N-BK7)
Surface quality 40/20- 60/40
Effective aperture 90%
Quantity Accuracy λ/4@633nm
Parallel Error <30′
Dimensional error +0.0/-0.1mm
Bevel 0.2-0.5mmX45°
S1 surface splitting coating Ratio of light separation (R/T) 50
S2 surface Antireflective coating Ravg < 1% of the average value within the nominal bandwidth
spectral curve

In addition, We can customize the optical beam splitter according to customer requirements or drawings.
