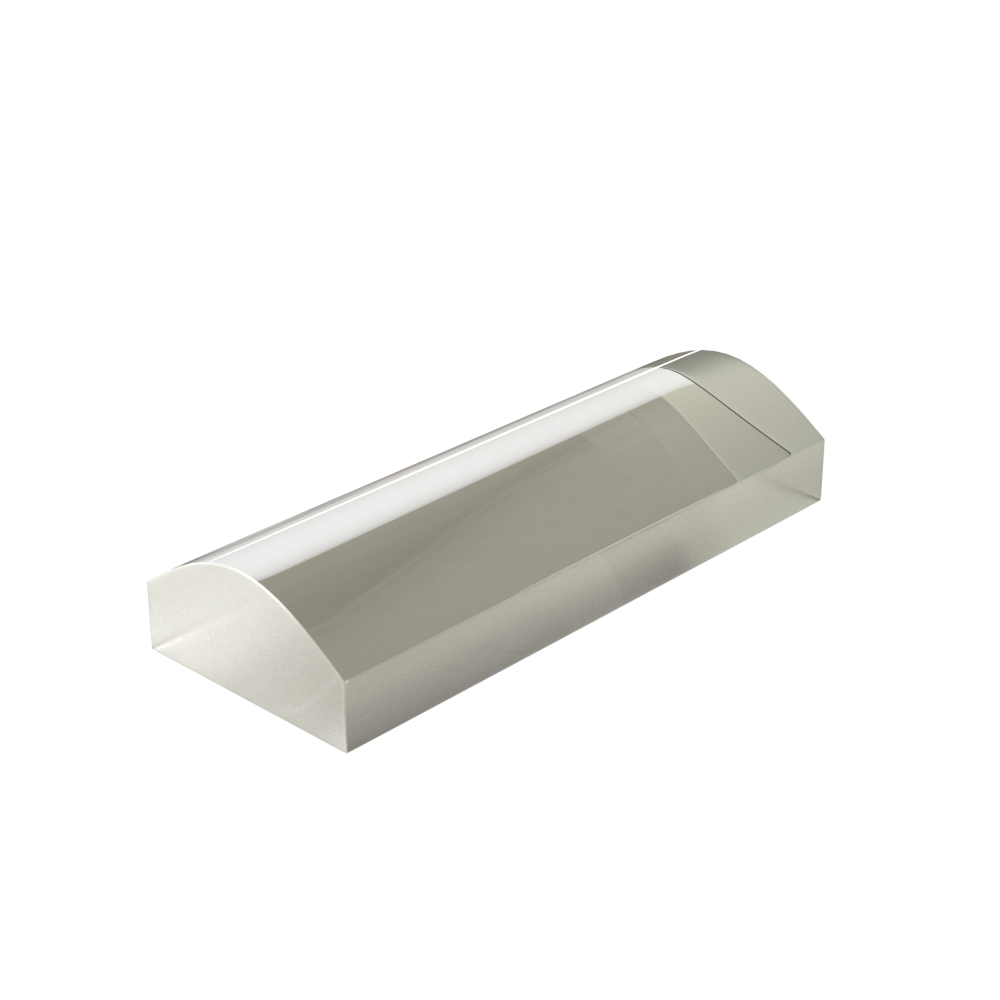

A plano-cylindrical lens consists of one flat surface and one cylindrical convex surface; it has a positive focal length and is commonly used to focus parallel or diverging light beams into a line or to alter the aspect ratio of an image.

Plano convex cylindrical lenses are ideal for one-dimensional optical applications. While spherical lenses affect incident light symmetrically in both directions, cylindrical lenses affect incident light only in one direction. Typical applications include using a pair of cylindrical lenses to reshape a distorted beam of light. A pair of planoconvex cylindrical lenses can be used to collimate and circularize the output of a laser diode. Another possible application is using a single cylindrical lens to focus a diverging beam onto a detector array. To minimize spherical aberration, when collimating a beam to form a line, the collimated light should be incident on the curved surface of the lens; and when focusing a line source, the line source should be incident on the flat surface of the lens.

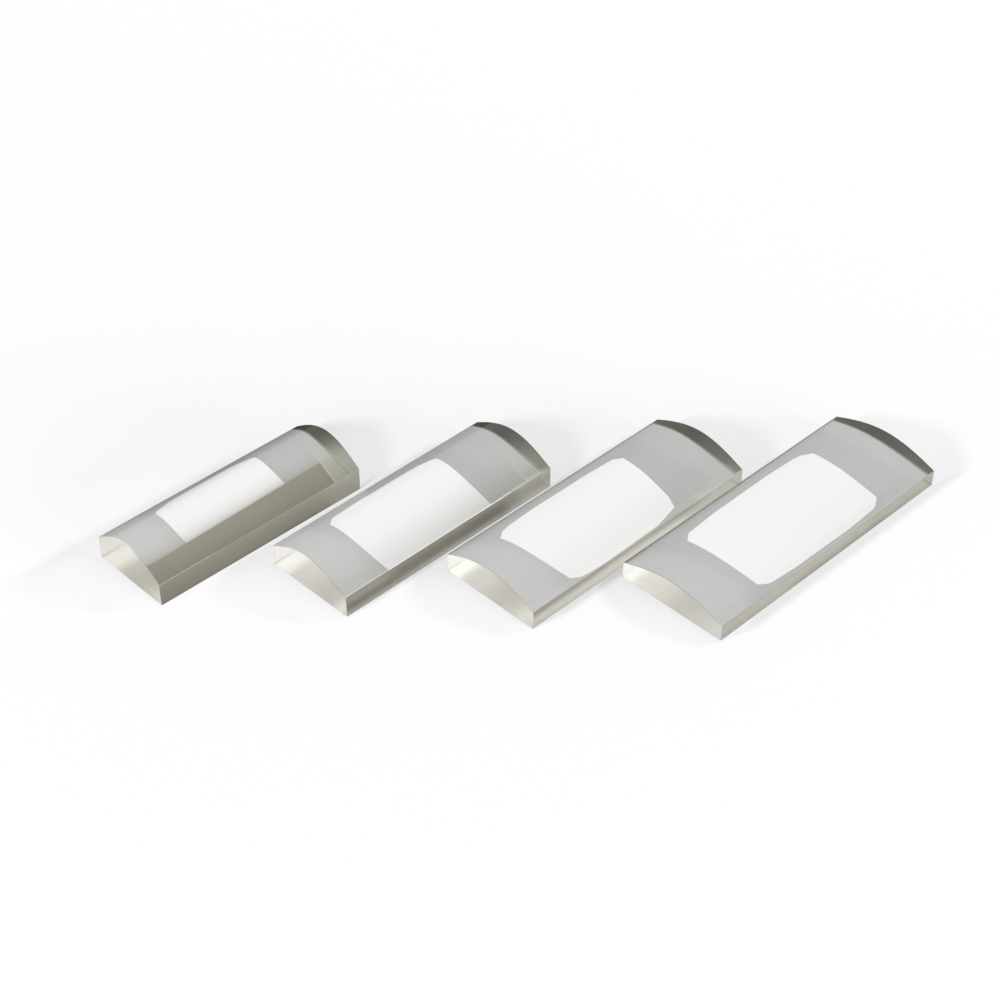

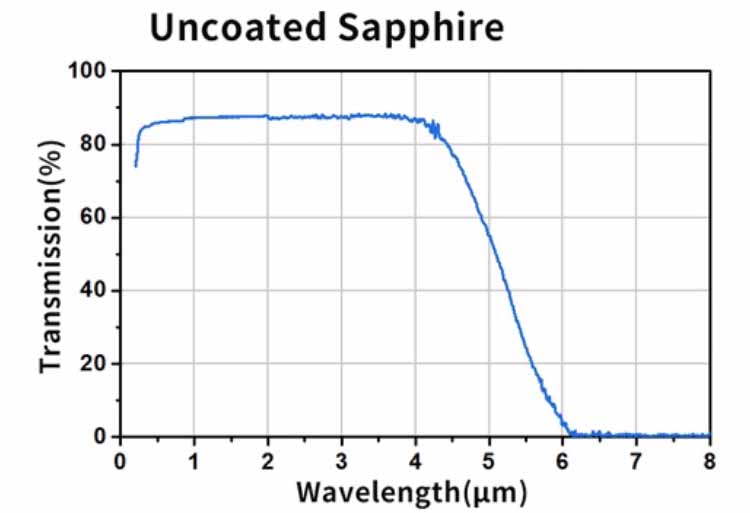

These plano convex cylindrical lenses are available in materials such as K9 glass, quartz, and sapphire, with options for uncoated or antireflective coatings:

UV coatings (250-400nm), VIS coatings (400-700nm), NIR coatings (650-1050nm), or SWIR coatings (1000-1650nm). Custom designs are also available.

Processing size range: 5-500mm

H-K9L Plano-cylindrical Lenses

Material N-BK7 (H-K9L)
Design Wavelength 587.6 nm
Center Thickness Tolerance ±0.2 mm
Diameter Tolerance +0.0/-0.1 mm
Focal Length Tolerance ±2%
Clear Aperture >90% of diameter
Surface quality 60/40
Lens Centering Error 3'~5'
Bevel Protective bevel 0.2–0.5 mm × 45°
Coating Uncoated: 350nm~2.0µm; VIS Coating: 400~700nm; NIR Coating: 650~1050nm; SWIR Coating: 1000~1650nm or custom
k9 uncoated
k9 vis coated
nir coated
swir coated

Fused Quartz Plano-cylindrical Lenses

Material Fused Quartz: JGS1, JGS2, JGS3, Corning, OHARA
Design Wavelength 587.6 nm
Center Thickness Tolerance ±0.2 mm
Diameter Tolerance +0.0/-0.1 mm
Focal Length Tolerance ±2%
Clear Aperture >90% of diameter
Surface quality 60/40
Lens Centering Error 3'~5'
Bevel Protective bevel 0.2–0.5 mm × 45°
Coating Uncoated: 185-2.1µm; UV Coating: 250-450nm or custom
QUARZT
UV COATED
