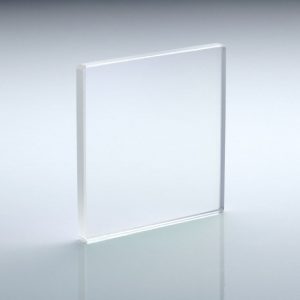

Flat mirrors are a type of mirror that can be used in a variety of applications, including beam deflection, interferometry, or as optical components in imaging systems.

The reflective surface of a flat mirror is a plane. The important parameters of a flat mirror are: surface shape and reflectivity. High surface accuracy can reduce the amount of light loss caused by dispersion.

Borisun Optics provides uncoated and reflective mirrors. The reflective film options include ordinary protective aluminum film, protective UV reflective aluminum film, protective silver film, and protective gold film. Fused quartz substrates are suitable for UV applications.

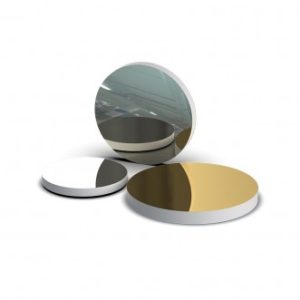

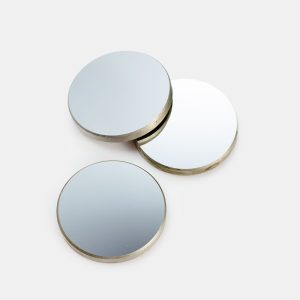

Flat Metal Coated Mirrors

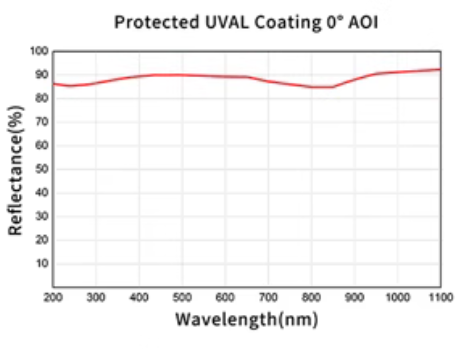

UV Aluminum@250-700nm

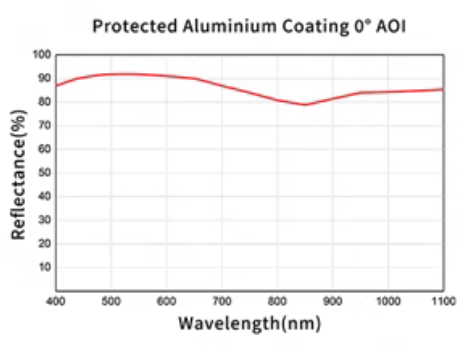

Protect Aluminum@400-1200nm

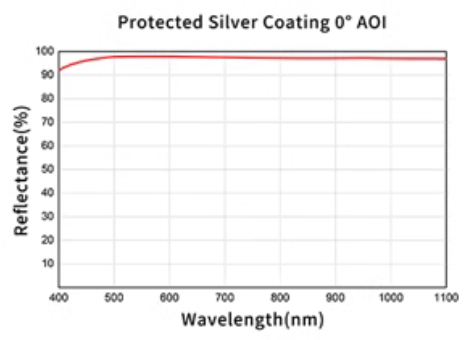

Protect Sliver@400-12000nm

Protect Gold@2000-20000nm

Plate Dielectric mirrors

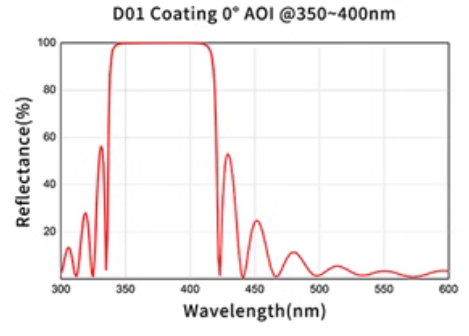

Dielectric reflective coated @350-400nm

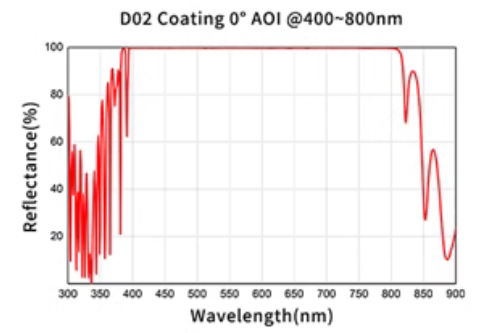

Dielectric reflective coated @400-800nm

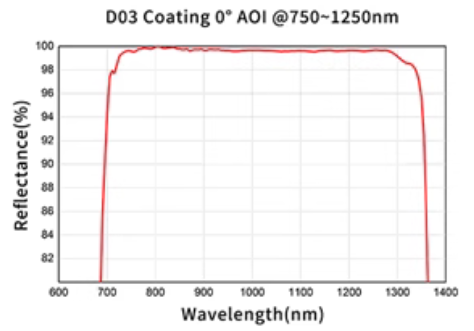

Dielectric reflective coated @750-1250nm

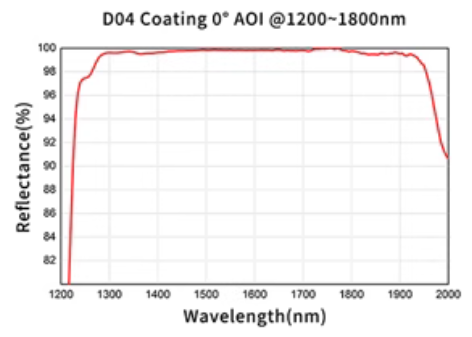

Dielectric reflective coated @1200-1800nm

Customization Parameters

Material substrate	glass, metal, microcrystalline
Processable size	3mm-1000mm
Diameter tolerance	±0.02mm
Thickness tolerance	±0.02mm
Surface Accuracy	λ/10, λ/8, λ/6
Surface Quality	60/40; 40/20; 20/10; 10/5
Eccentricity	＜5″- 30″
Effective aperture	＞90%
Coating Customized design	Strengthened aluminum film, protective UV reflective aluminum film, protective silver film, protective gold film,Dielectric high reflective film D01, D02, D03, D04

Inventory Parameters

Diameter (mm)	Thickness (mm)	Surface Accuracy	Surface Quality	Coated
5	2	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
6.3	2	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
10	2	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
12.5	2	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
12.7	3	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
15	2	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
20	2	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
20	4	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
25	2	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
25.4	4	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
30	3	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
30	4	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
38	4	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
40	4	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
50	4	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
50.8	4	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
76.2	10	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
100	10	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
12.5*12.5	2	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
25*25	2	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
50*50	4	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
100*100	10	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
40*60	6	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
55.5*42.5	3	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
100*150	15	λ/4 or λ/10	60/40 or 10-5	Metal coating or dielectric coating; 250nm-20000nm
