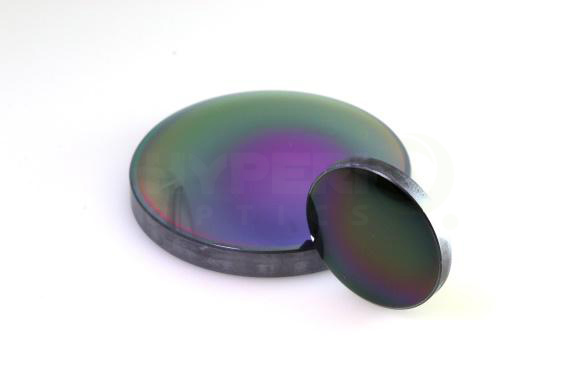

Silicon (SI) plano convex lens
PRODUCT CATEGORIES
INOUIRY
- Silicon (SI) single crystal is a chemically inert material with high hardness and insoluble in water. It has good light transmission performance in 1.2 – 7μm band and 30-300 in far infrared band μm also has good light transmission performance, which is not possessed by other infrared materials.
- Silicon (SI) single crystals are commonly used as 3 – 5μm medium wave infrared optical lens, optical window and optical filter substrate.
- Because of its good thermal conductivity and low density, the material is often used to make laser mirrors and occasions sensitive to volume and weight.
Technical parameters
| Items | Parameters |
|---|---|
| Material | Silicon (SI) |
| Radius of curvature | ± 1mm - ± 50000mm ± 1% |
| Diameter | 3mm-300mm ± 0.1mm |
| Center thickness tolerance | ± 0.05mm (we can process to ± 0.01mm with high precision) |
| Center deviation | 3′(we can process to 30 ″with high precision) |
| Surface accuracy | λ/ 8 (high precision, we can process to 1 / 10λ) |
| Surface quality | 40/20 (we can process to 10-5 with high precision) |
| Effective caliber | ≥90% |
| Coating | IR AR Coating 3-5μm or according to customer requirements |

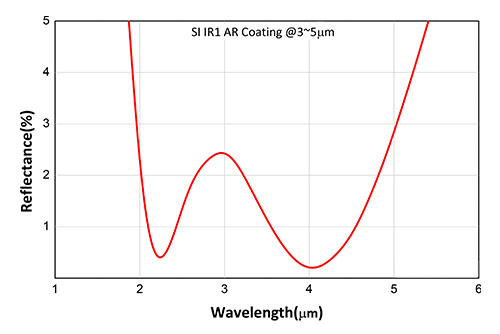

spectral curve
In addition, we have some Silicon (SI) plano convex lenses in stock, with preferential prices and excellent quality, which can meet your demand for a small order.
For details, please consults:
