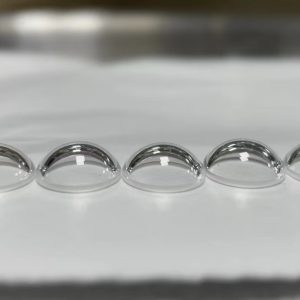

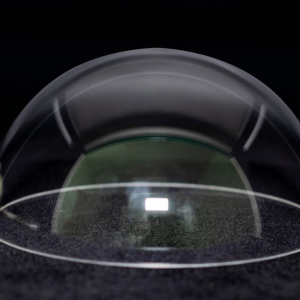

UV fused silica dome windows are commonly used as protective windows for applications with wide-angle incident light, such as detectors and optical sensors. We offer a variety of uncoated domes in various specifications. Custom designs are also accepted.
Technical parameters with Quartz Dome Window
| Dimensional tolerance | +0/-0.1mm |
|---|---|
| Thickness tolerance | ±0.2mm |
| Surface quality | 20/10- 60/40 |
| Surface accuracy | Local △N<10@633 nm |
| Chamfer | Protection<0.5mmx45° |
| Coating | According to your requirement |

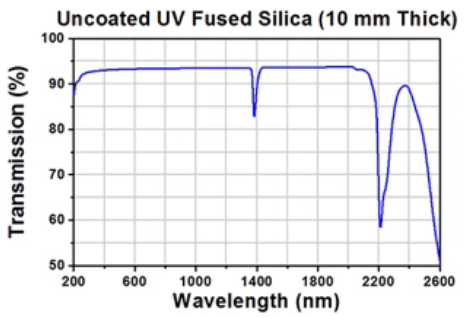

spectral curve with Quartz Dome Lens Window
Inventory Parameters with Quartz Protective Dome Window
| Diameter (mm) | Thickness (mm) | Material | Coating |
|---|---|---|---|
| 25 | 1 | Quartz | No Coated; or custom |
| 50 | 2 | Quartz | No Coated; or custom |
| 75 | 3 | Quartz | No Coated; or custom |
| 100 | 4 | Quartz | No Coated; or custom |
If you need custom Optical Glass Protective Window or bulk orders, please contact our sales team:
info@borisuns.com
