FWHM 8nm 630nm Ultra-narrow Band Filter
PRODUCT CATEGORIES
INOUIRY
630nm FWHM 8nm OD6@200-700 Single Bandpass Ultra-Narrowband Microplate Reader Biochemical Filter
Technical parameters with Ultra Narrowband Filter
| Central wavelength | 630nm |
|---|---|
| FWHM | 8nm |
| Peak transmittance | ＞75% |
| Cutoff range | 300-700nm |
| Average cutoff depth | ＞OD6 |
| Angle of incidence | 0° |
| Surface quality | 60/40 |

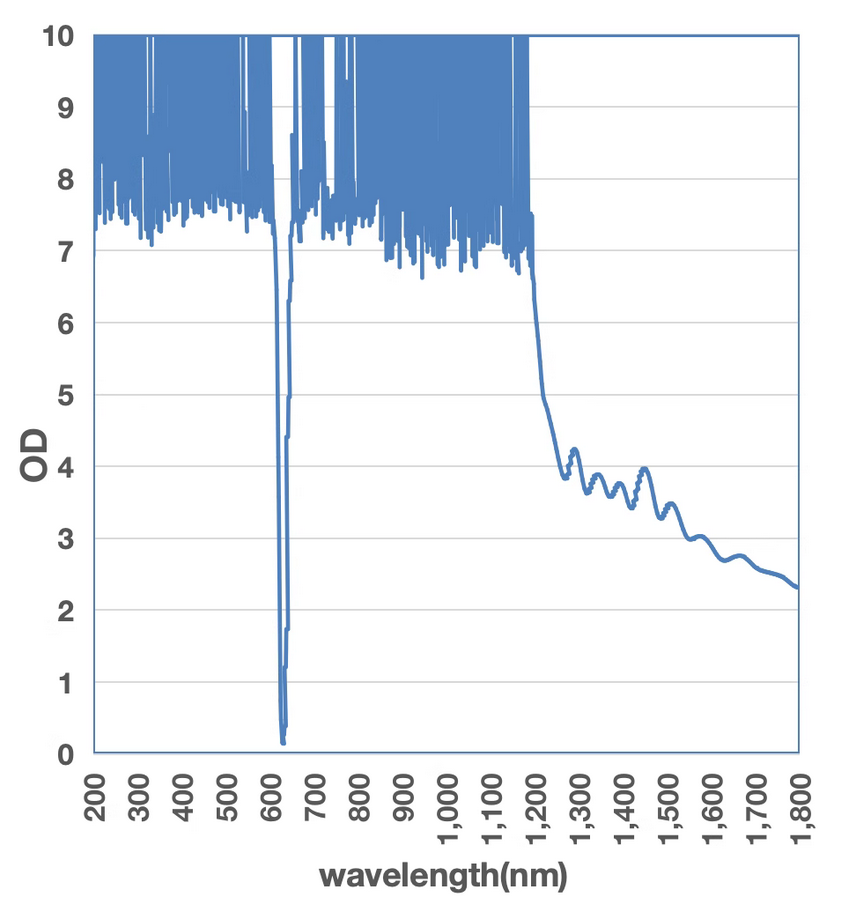

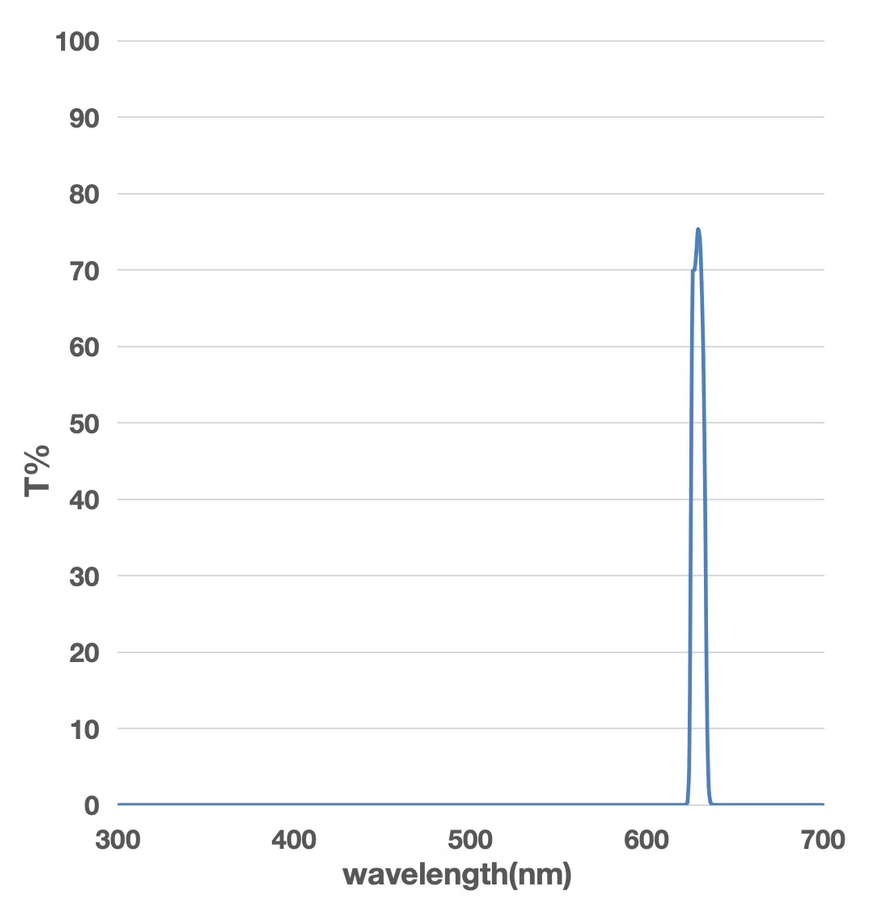

spectral curve with 630nm FWHM 8nm ultra-narrow bandpass Filter
Inventory Parameters with FWHM 8nm 630nm Ultra Narrow Band Optical Filter
In stock: D10*7mm, D10*8mm, D12*7mm, D12*5mm, customizable
If you need custom Optical Filters or bulk orders, please contact our sales team:
info@borisuns.com
