FWHM 6nm 1535nm Ultra-narrow Band Filter
PRODUCT CATEGORIES
INOUIRY
1535nm FWHM 6nm OD4 Single Bandpass Ultra-Narrowband Machine Vision Filters
Technical parameters with Ultra Narrowband Filter
| Central wavelength | 1535nm |
|---|---|
| FWHM | 6nm; 12mm; 15nm; 30nm |
| Peak transmittance | ＞90% |
| Cutoff range | custom |
| Average cutoff depth | ＞OD4 |
| Angle of incidence | 0° |
| Surface quality | 60/40 |

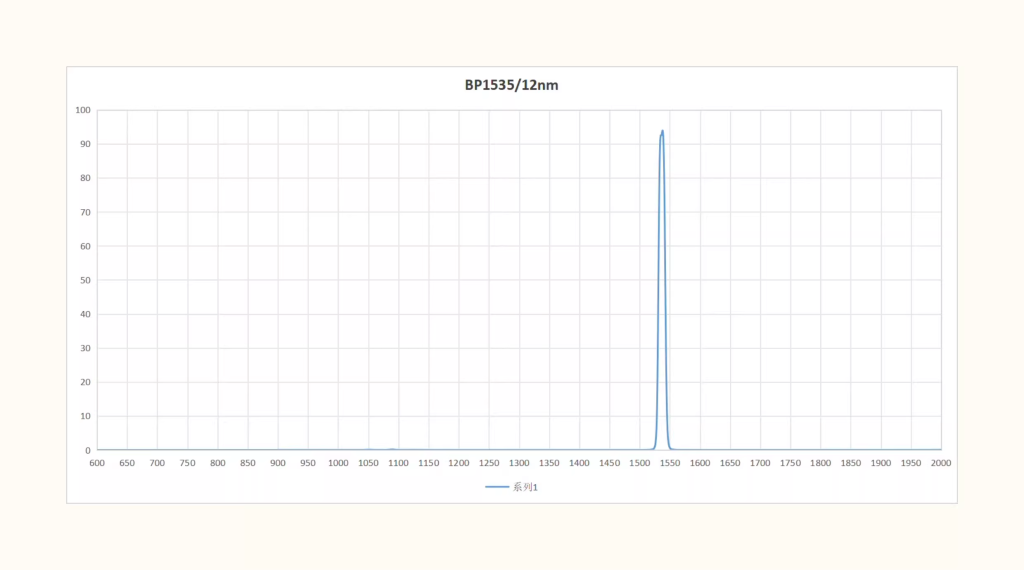

FWHM 12nm 1535nm Ultra Narrow Band Optical Filter

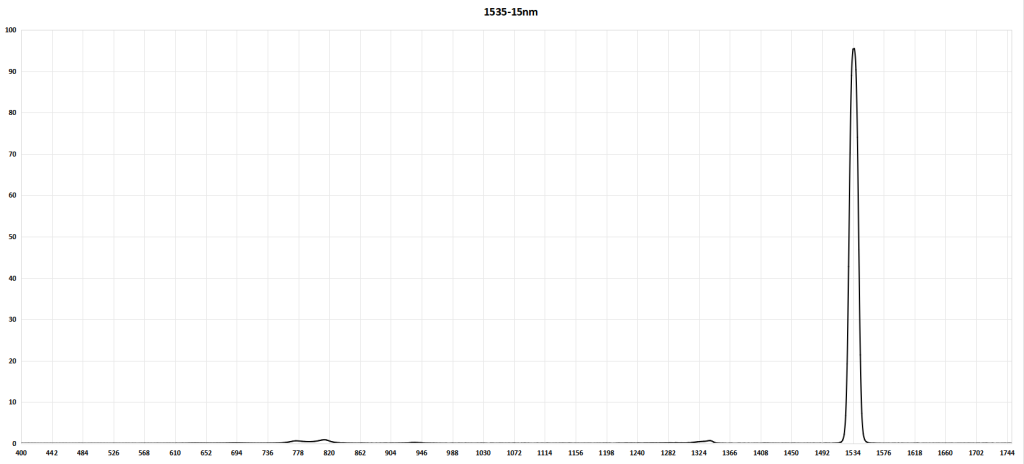

FWHM 15nm 1535nm Ultra Narrow Band Optical Filter

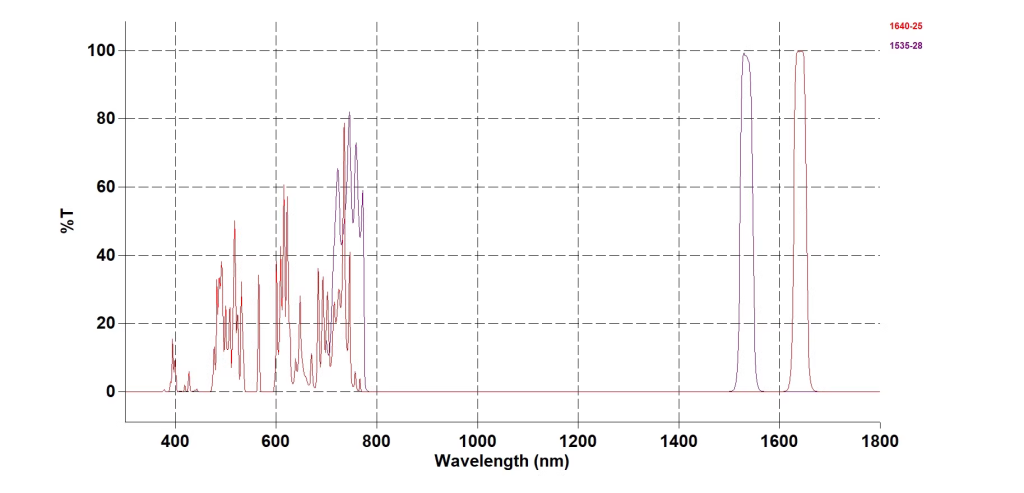

FWHM 30nm 1535nm Ultra Narrow Band Optical Filter
In stock: D12.7mm, D25mm, customizable
If you need custom Optical Filters or bulk orders, please contact our sales team:
