Drum lens
PRODUCT CATEGORIES

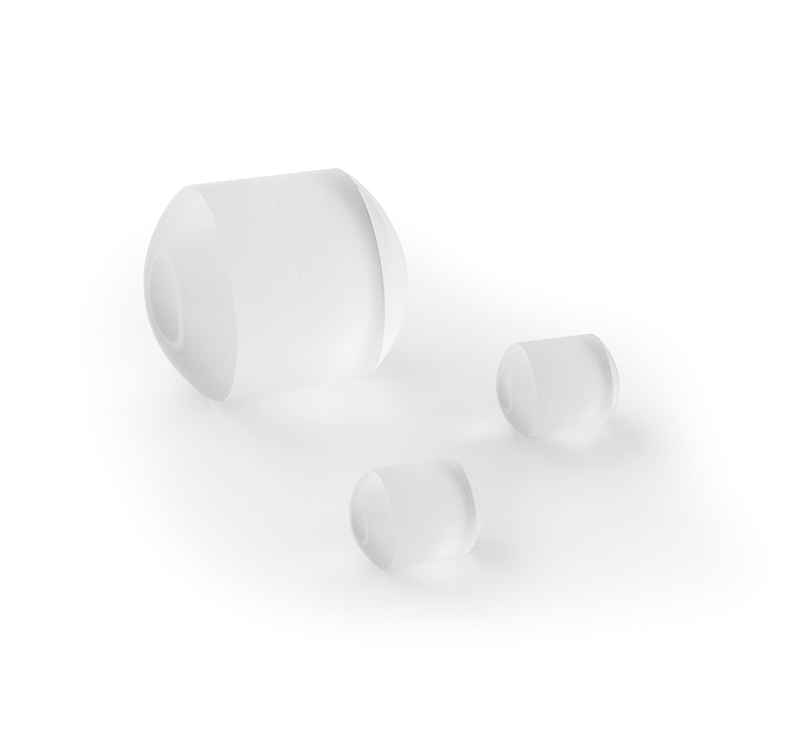

- Drum lens is a lens whose two ends are spherical and provide positioning surface along the optical axis direction. It is formed by grinding the outer circle on the basis of the spherical lens to facilitate card loading. It is more suitable for the propagation of light in optical communication.
- We provide uncoated drum lenses based on K9 optical glass and UV fused quartz. Fused quartz is suitable for UV applications.
Technical parameters
| Items | Parameters |
|---|---|
| Material | optical glass, H-K9L (N-BK7) |
| Radius of curvature | ± 1mm - ± 50000mm ± 1% |
| Diameter | 3mm-100mm ± 0.1mm |
| Center thickness tolerance | ± 0.05mm (we can process to ± 0.01mm with high precision) |
| Center deviation | 3′(we can process to 30 ″with high precision) |
| Surface accuracy | λ/ 8 (high precision, we can process to 1 / 10λ) |
| Surface quality | 40/20 (we can process to 10-5 with high precision) |
| Effective caliber | ≥90% |
spectral curve

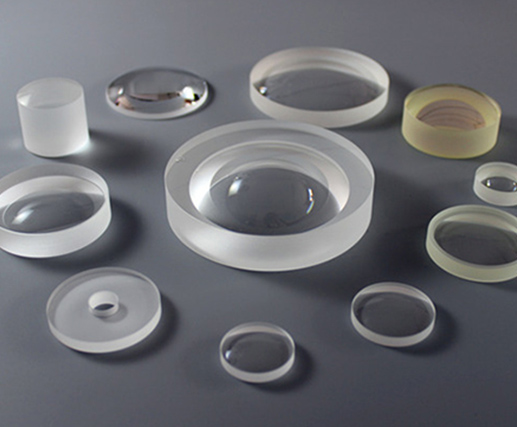

In addition, we have thousands of stock of K9 plano convex lens, biconvex lens, plano concave lens, biconvex lens, meniscus lens and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order.
For details, please consult:
