AL Coated Right Angle Prism Mirror
PRODUCT CATEGORIES
INOUIRY

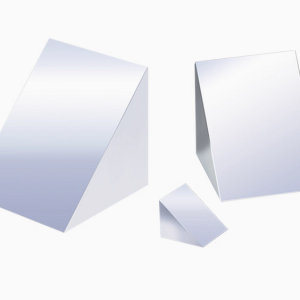

Protective Al coated right angle mirror, the base is an isosceles right angle triangular prism, the reflective surface is the outer surface of the bevel, it is easy to place so that the reflective surface is perpendicular or 45° to the working plane. Right angle reflectors are usually used to turn light 90° and bend the image path. They can also be used to offset beams or composite images.

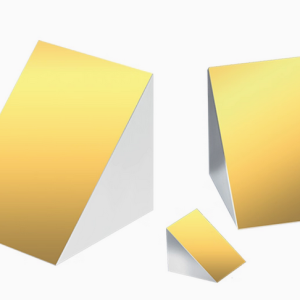

We provide reflectors without coating and with reflective coating. The reflective coating options include ordinary reinforced aluminum coating, protective UV reflective aluminum coating, protective silver coating, protective gold coating, dielectric high reflective coating D01, dielectric high reflective coating D02, dielectric high reflective coating D03, and dielectric high reflective coating D04.
Technical parameters with protective AL Coated Right Angle Prisms Mirror
| Material | H-K9L |
|---|---|
| Centering error | <3′ |
| Thickness tolerance | ±0.2 mm |
| Focal length tolerance | ±2% |
| Dimension error | +0.0/-0.1 mm |
| Surface accuracy | λ/4@633 nm |
| Reflection surface quality | 60/40 |
| Face back | Fine grinding or inspection polishing |
| Chamfer | Protective chamfer 0.2~0.5mm×45° |
| Coating | Protective aluminum coated@400-1200nm |
spectral curve with protective Aluminum Coated Right Angle Prism Mirror
Inventory Parameters With Protective AL Glass right angle reflector
| Size (mm) | Coated |
|---|---|
| 5*5*5 | protective aluminum coated@400-1200nm |
| 10*10*10 | protective aluminum coated@400-1200nm |
| 12.5*12.5*12.5 | protective aluminum coated@400-1200nm |
| 15*15*15 | protective aluminum coated@400-1200nm |
| 15*15*15 | protective aluminum coated@400-1200nm |
| 20*20*20 | protective aluminum coated@400-1200nm |
| 25*25*25 | protective aluminum coated@400-1200nm |
| 30*30*30 | protective aluminum coated@400-1200nm |
| 40*40*40 | protective aluminum coated@400-1200nm |
| 50*50*50 | protective aluminum coated@400-1200nm |
If you are interested and need custom Glass Right Angle Prism Mirrors or bulk orders, please contact our sales team:
info@borisuns.com
