785nm Laser Window
PRODUCT CATEGORIES
INOUIRY
785nm K9 laser flat windows are parallel plane plates, usually used as protective films for electronic sensors or external environment detectors.
These UV fused silica flat laser windows are also available with six V-type antireflection coatings: @266nm, @355nm, @532nm, @632.8nm, @785nm and @1064nm.
Technical parameters with K9 Laser Window
| Dimensional tolerance | +0/-0.1mm |
|---|---|
| Thickness tolerance | ±0.2mm |
| Surface quality | 20/10 |
| Surface accuracy | λ/10@633nm |
| Chamfer | Protection<0.5mmx45° |
| Coating | V-type antireflection coatings: @266nm, @355nm, @532nm, @632.8nm, @785nm and @1064nm. |

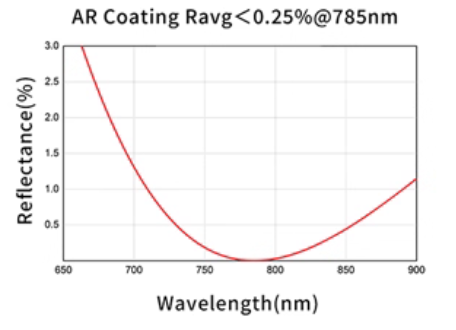

spectral curve with K9 plano Lens Window
Inventory Parameters with K9 Laser Lens for Cutting Machine
| Diameter (mm) | Thickness (mm) | Material | Coating |
|---|---|---|---|
| 5 | 2 | k9 | V-type antireflection coating R＜0.25%@266nm |
| 10 | 2 | k9 | V-type antireflection coating R＜0.25%@266nm |
| 12.5 | 3 | k9 | V-type antireflection coating R＜0.25%@266nm |
| 12.7 | 3 | k9 | V-type antireflection coating R＜0.25%@266nm |
| 20 | 3 | k9 | V-type antireflection coating R＜0.25%@266nm |
| 25 | 6 | k9 | V-type antireflection coating R＜0.25%@266nm |
| 25.4 | 6 | k9 | V-type antireflection coating R＜0.25%@266nm |
| 30 | 6 | k9 | V-type antireflection coating R＜0.25%@266nm |
| 38.1 | 10 | k9 | V-type antireflection coating R＜0.25%@266nm |
| 50 | 10 | k9 | V-type antireflection coating R＜0.25%@266nm |
| 50.8 | 10 | k9 | V-type antireflection coating R＜0.25%@266nm |
If you need custom Optical Glass Laser Window or bulk orders, please contact our sales team:
info@borisuns.com
