266nm Laser Window
PRODUCT CATEGORIES
INOUIRY
UV fused silica laser flat windows are parallel plane plates, usually used as protective films for electronic sensors or external environment detectors.
These UV fused silica flat laser windows are also available with six V-type antireflection coatings: @266nm, @355nm, @532nm, @632.8nm, @785nm and @1064nm.
Technical parameters with quartz Laser Window
| Dimensional tolerance | +0/-0.1mm |
|---|---|
| Thickness tolerance | ±0.2mm |
| Surface quality | 20/10 |
| Surface accuracy | λ/10@633nm |
| Chamfer | Protection<0.5mmx45° |
| Coating | V-type antireflection coatings: @266nm, @355nm, @532nm, @632.8nm, @785nm and @1064nm. |

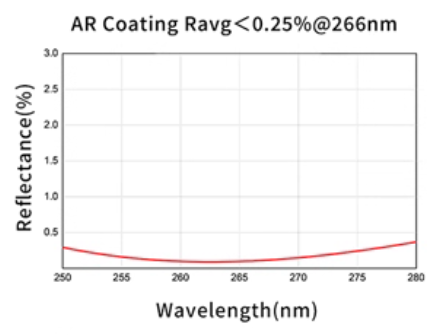

spectral curve with quartz plano Lens Window
Inventory Parameters with Quartz Laser Optical Glass Window
| Diameter (mm) | Thickness (mm) | Material | Coating |
|---|---|---|---|
| 5 | 2 | Quartz | V-type antireflection coating R＜0.25%@266nm |
| 10 | 2 | Quartz | V-type antireflection coating R＜0.25%@266nm |
| 12.5 | 3 | Quartz | V-type antireflection coating R＜0.25%@266nm |
| 12.7 | 3 | Quartz | V-type antireflection coating R＜0.25%@266nm |
| 20 | 3 | Quartz | V-type antireflection coating R＜0.25%@266nm |
| 25 | 6 | Quartz | V-type antireflection coating R＜0.25%@266nm |
| 25.4 | 6 | Quartz | V-type antireflection coating R＜0.25%@266nm |
| 30 | 6 | Quartz | V-type antireflection coating R＜0.25%@266nm |
| 38.1 | 10 | Quartz | V-type antireflection coating R＜0.25%@266nm |
| 50 | 10 | Quartz | V-type antireflection coating R＜0.25%@266nm |
| 50.8 | 10 | Quartz | V-type antireflection coating R＜0.25%@266nm |
If you need custom Optical Glass Laser Window or bulk orders, please contact our sales team:
