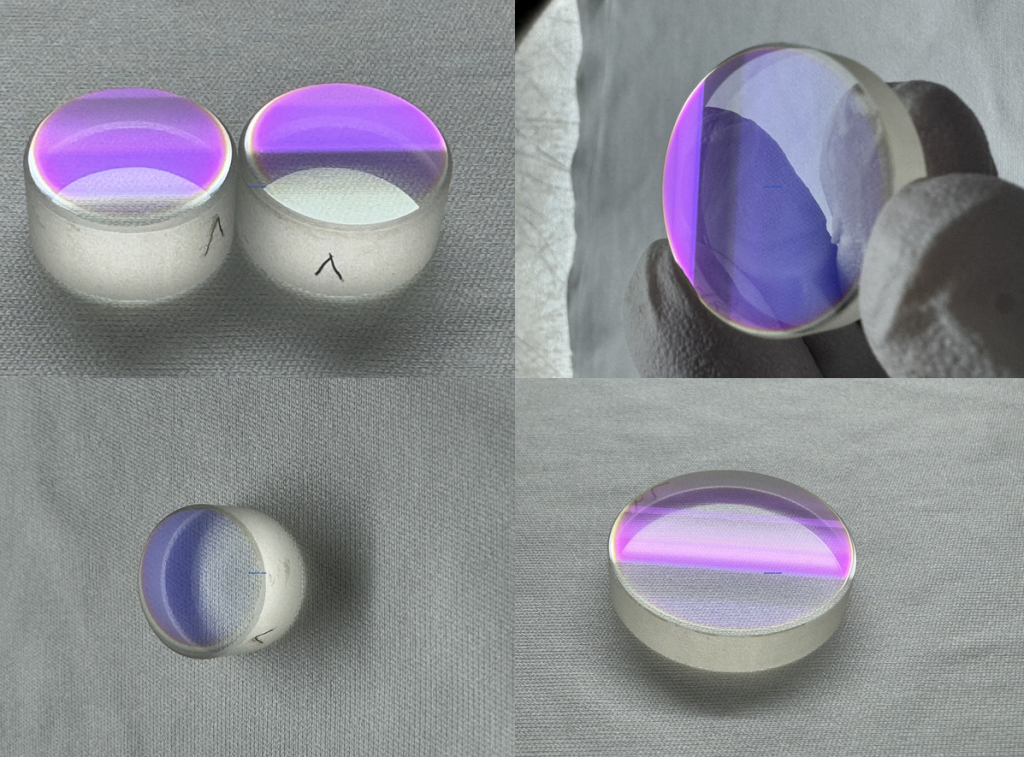

MW-grade 355nm UV mirror
Specifications:
Incident Angle: 45 degrees

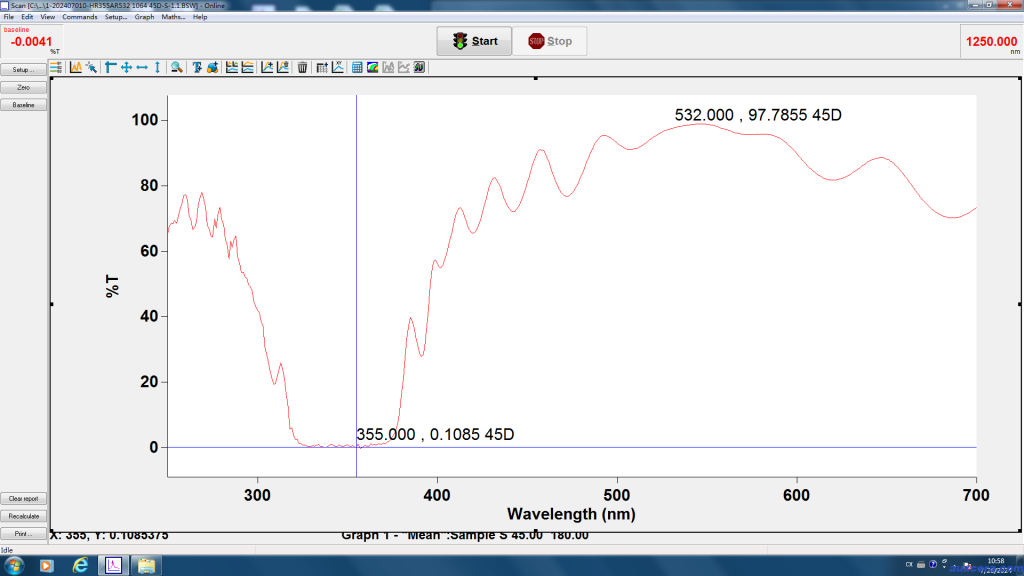

Reflection Wavelength: 355nm
Standard Size: 1 inch and half inch
Damage Threshold Test (This damage threshold test is only a preliminary internal test; results are for reference only and no product power limit test has been performed):
Laser: Laser parameters: 2000Hz, 40ns@355nm
Power (W): 18
Spot Diameter (mm): 1
Persistence Time (s): No damage
Damage Threshold (MW/cm²): 190.99
ABOUT BORISUN
Hanzhong Brisun Optics Co., Ltd. Is the high precision optical element manufacturer provides customized production of Various optical lenses, including spherical lens, cylindrical lens, optical window, mirror, prism, filter, metal base mirror and other high-precision optical elements. The base materials include various optical glass, fused quartz, calcium fluoride (CaF2), zinc selenide (ZnSe), germanium (GE), silicon (SI), sapphire, metal and other materials. And provide antireflective film, high reflection film, spectroscopic film, metal film and other optical coatings.
Welcome to OEM and Purchasing!
