800nm Dichroic Short Wave Pass Filter
PRODUCT CATEGORIES
INOUIRY
800nm dichroic short wave pass filter, T＞90%@400-775nm, R＞98%@850-1050nm, Incident angle 45 °
Technical parameters with 800nm dichroic short wave pass filter
| Central wavelength | 800nm+-10nm |
|---|---|
| Transmitting band | 400-775nm |
| Reflective band | 850-1050nm |
| Transmittance rate | >90% |
| Reflectivity | >98% |
| Angle of incidence | 45° |
| Surface quality | 60/40 |

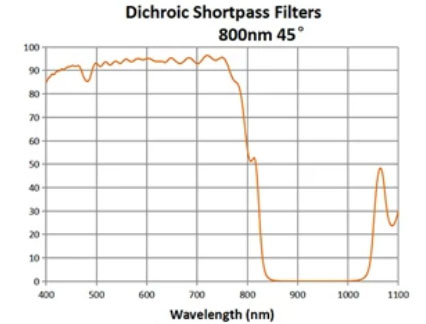

spectral curve with 800nm dichroic filter
Inventory Parameters with 800nm Dichroic Short Pass Filter
In stock: D12.5mm, D25mm, customizable
If you need custom Optical Dichroic Filters or bulk orders, please contact our sales team:
info@borisuns.com
