650nm Dichroic Short Wave Pass Filter
PRODUCT CATEGORIES
INOUIRY
650nm dichroic short wave pass filter, T＞90%@400-630nm, R＞98%@675-850nm, Incident angle 45 °
Technical parameters with 650nm dichroic short wave pass filter
| Central wavelength | 650nm+-10nm |
|---|---|
| Transmitting band | 400-630nm |
| Reflective band | 675-850nm |
| Transmittance rate | >90% |
| Reflectivity | >98% |
| Angle of incidence | 45° |
| Surface quality | 60/40 |

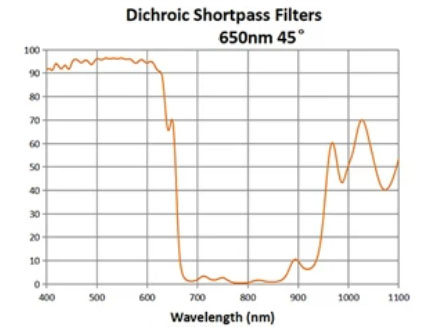

spectral curve with 650nm dichroic filter
Inventory Parameters with 650nm Dichroic Short Pass Filter
In stock: D12.5mm, D25mm, customizable
If you need custom Optical Dichroic Filters or bulk orders, please contact our sales team:
info@borisuns.com
