550nm Dichroic Short Wave Pass Filter
PRODUCT CATEGORIES
INOUIRY
550nm dichroic short wave pass filter, T＞90%@370-430nm, R＞98%@470-545nm, Incident angle 45 °
Technical parameters with 550nm dichroic short wave pass filter
| Central wavelength | 550nm+-10nm |
|---|---|
| Transmitting band | 400-530nm |
| Reflective band | 575-725nm |
| Transmittance rate | >90% |
| Reflectivity | >98% |
| Angle of incidence | 45° |
| Surface quality | 60/40 |

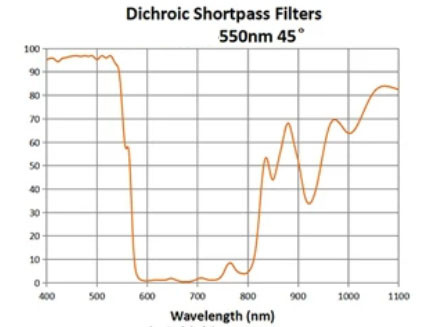

spectral curve with 550nm dichroic filter
Inventory Parameters with 550nm Dichroic Short Pass Filter
In stock: D12.5mm, D25mm, customizable
If you need custom Optical Dichroic Filters or bulk orders, please contact our sales team:
