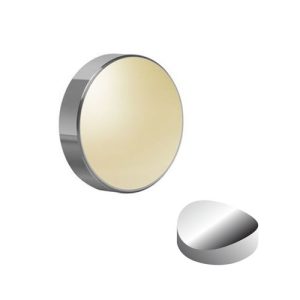

Concave Spherical Mirrors
PRODUCT CATEGORIES
INOUIRY
Plano concave spherical mirrors, or Focusing mirrors, are often used in applications that require light collection. In addition, since focusing mirrors do not introduce chromatic aberration, they are well suited for use in imaging systems. When light reaches the surface of a concave mirror, the surface profile of the mirror focuses the reflected light on a single point.
High-precision spherical mirrors are often used in the interference zero-position measurement optical path of the reflected wavefront of quadratic curved mirrors. They are the core inspection tools for high-precision aspheric mirror processing and directly determine the surface accuracy of the quadratic curved mirror to be processed. They use classical polishing, high-precision ion beam polishing and other technologies, with mature processing technology and high technical indicators.
Borisun Optics offers a variety of focusing mirrors that use a variety of metal reflective films, or spherical surface profiles or parabolic surface profiles. Metal reflective films include aluminum films or gold films. Aluminum reflective films are ideal for enhancing reflection of wavelengths of ultraviolet or visible light.
Concave Reflector Processing Technical Parameters
| Material substrate | glass, metal, microcrystalline |
|---|---|
| Processable size | 3mm-1000mm |
| Diameter tolerance | ±0.02mm |
| Thickness tolerance | ±0.02mm |
| Surface Accuracy | λ/10, λ/8, λ/6 |
| Surface Quality | 60/40; 40/20; 20/10; 10/5 |
| Eccentricity | ±30 Arc Seconds |
| Effective aperture | ＞90% |
| Coating Customized design | Dielectric reflective film, aluminum, gold, silver， according to your requirements |
Typical Reflective Curve for metallic mirror Coatings
UV Aluminum@250-700nm
Protect Aluminum@400-1200nm
Protect Sliver@400-12000nm
Protect Gold@2000-20000nm
Typical Reflective Curve for Plate Dielectric Coatings
Dielectric reflective coated @350-400nm
Dielectric reflective coated @400-800nm
Dielectric reflective coated @750-1250nm
Dielectric reflective coated @1200-1800nm
Inventory Parameters with Concave Mirrors
| Diameter (mm) | Focal Length (mm) | Center Thickness (mm) | Edge Thickness (mm) | Coated |
|---|---|---|---|---|
| 12.5/ 12.5*12.5 | 5; 10; 15; 20; 25; 30; 35; 40; 50; 75 | 3 | 5.19; 4; 3.66; 3.49; 3.39; 3.33; 3.28; 3.24; 3.2; 3.13 | Metal coating or dielectric coating; 250nm-20000nm |
| 25/ 25*25 | 20; 25; 30; 35; 40; 50; 75; 100; 150; 200; 250; 300; 500; | 6 | 8; 7.59; 7.32; 7.13; 6.98; 6.78; 6.52; 6.39; 6.26; 6.2; 6.16; 6; 6 | Metal coating or dielectric coating; 250nm-20000nm |
| 50/ 50*50 | 50; 75; 100; 150; 200; 250; 300; 500 | 9 | 12.18; 11.1; 10.57; 10.04; 9.78; 9.63; 9.52; 9.31 | Metal coating or dielectric coating; 250nm-20000nm |
| 75 | 56.25; 75; 100; 150; 200; 250; 300; 500 | 9 | 18.4; 13.76; 12.55; 11.35; 10.76; 10.41; 10.17; 9.7 | Metal coating or dielectric coating; 250nm-20000nm |
If you are interested and need custom Plano Concave Mirrors or bulk orders, please contact our sales team: info@borisuns.com
We will serve you immediately！
